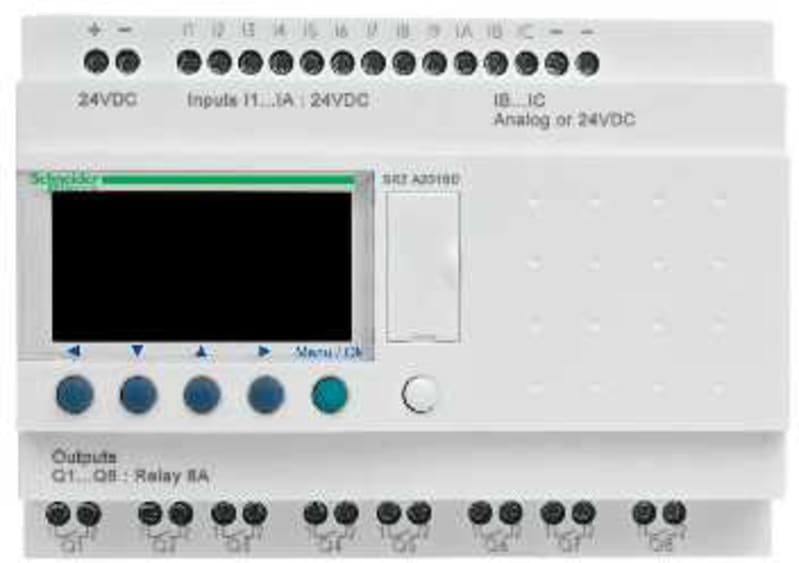

Schneider Electric compact smart relay Zelio Logic - 20 I O - 24 V DC - no clock - display SR2A201BD

Schneider Electric SR2A201BD Zelio 12/8 In/O relay without ur 24VDC.

Manufacturer part number (MPN)

SR2A201BD

EAN / GTIN

3389110549416

HS code

8536.90

Sales unit

pcs

Package quantity

20 pcs

Voltage

24 V DC

Range of product

Zelio Logic

Product or component type

Compact smart relay

Local display

With

Number or control scheme lines

0…240 with ladder programming

Cycle time

6…90 ms

Backup time

10 years at 25 °C

Clock drift

12 min/year at 0…55 °C; 6 s/month at 25 °C

Checks

Program memory on each power up

[Us] rated supply voltage

24 V DC

Supply voltage limits

19.2…30 V

Maximum supply current

100 mA (without extension)

Power dissipation in W

6 W without extension

Reverse polarity protection

With

Discrete input number

12 conforming to IEC 61131-2 Type 1

Discrete input type

Resistive

Discrete input voltage

24 V DC

Discrete input current

4 mA

Counting frequency

1 kHz for discrete input

Voltage state 1 guaranteed

>= 15 V for I1...IA and IH...IR discrete input circuit; >= 15 V for IB...IG used as discrete input circuit

Voltage state 0 guaranteed

<= 5 V for I1...IA and IH...IR discrete input circuit; <= 5 V for IB...IG used as discrete input circuit

Current state 1 guaranteed

>= 1.2 mA (IB...IG used as discrete input circuit); >= 2.2 mA (I1...IA and IH...IR discrete input circuit)

Current state 0 guaranteed

<= 0.5 mA (IB...IG used as discrete input circuit)

Input compatibility

3-wire proximity sensors PNP for discrete input

Analogue input number

2

Analogue input type

Common mode

Analogue input range

0...24 V; 0...10 V

Maximum permissible voltage

30 V for analogue input circuit

Analogue input resolution

8 bits

LSB value

39 mV for analogue input circuit

Conversion time

Smart relay cycle time for analogue input circuit

Conversion error

+/- 5 % at 25 °C for analogue input circuit; +/- 6.2 % at 55 °C for analogue input circuit

Repeat accuracy

+/- 2 % at 55 °C for analogue input circuit

Operating distance

10 m between stations, with screened cable (sensor not isolated) for analogue input circuit

Input impedance

12 kOhm for IB...IG used as analogue input circuit; 12 kOhm for IB...IG used as discrete input circuit; 7.4 kOhm for I1...IA and IH...IR discrete input circuit

Number of outputs

8 relay

Output voltage limits

24...250 V AC (relay output); 5...30 V DC (relay output)

Contacts type and composition

NO for relay output

Output thermal current

8 A for all 8 outputs for relay output

Electrical durability

AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1; AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1; DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1; DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1

Switching capacity in mA

>= 10 mA at 12 V (relay output)

Operating rate in Hz

0.1 Hz (at Ie) for relay output; 10 Hz (no load) for relay output

Mechanical durability

10000000 cycles for relay output

[Uimp] rated impulse withstand voltage

4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1

Clock

Without

Response time

10 ms (from state 0 to state 1) for relay output; 5 ms (from state 1 to state 0) for relay output

Connections - terminals

Screw terminals, 1 x 0.2...1 x 2.5 mm² (25 AWG...14 AWG) semi-solid; Screw terminals, 1 x 0.2...1 x 2.5 mm² (25 AWG...14 AWG) solid; Screw terminals, 1 x 0.25...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end; Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) solid; Screw terminals, 2 x 0.25...2 x 0.75 mm² (24 AWG...18 AWG) flexible with cable end

Tightening torque

0.5 N.m

Overvoltage category

III conforming to IEC 60664-1

Product weight

0.38 kg

Immunity to microbreaks

1 ms

Product certifications

GOST; CSA; GL; UL; C-Tick

Standards

IEC 61000-4-5; IEC 61000-4-6 level 3; IEC 60068-2-6 Fc; IEC 61000-4-12; IEC 61000-4-11; IEC 61000-4-3; IEC 61000-4-2 level 3; IEC 60068-2-27 Ea; IEC 61000-4-4 level 3

IP degree of protection

IP20 (terminal block) conforming to IEC 60529; IP40 (front panel) conforming to IEC 60529

Environmental characteristic

EMC directive conforming to IEC 61000-6-2; EMC directive conforming to IEC 61000-6-3; EMC directive conforming to IEC 61000-6-4; EMC directive conforming to IEC 61131-2 zone B; Low voltage directive conforming to IEC 61131-2

Disturbance radiated/conducted

Class B conforming to EN 55022-11 group 1

Pollution degree

2 conforming to IEC 61131-2

Ambient air temperature for operation

-20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2; -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2

Ambient air temperature for storage

-40…70 °C

Operating altitude

2000 m

Maximum altitude transport

3048 m

Relative humidity

95 % without condensation or dripping water

Country of origin

FR

Warranty (in months)

18

HS Code

8536.90
