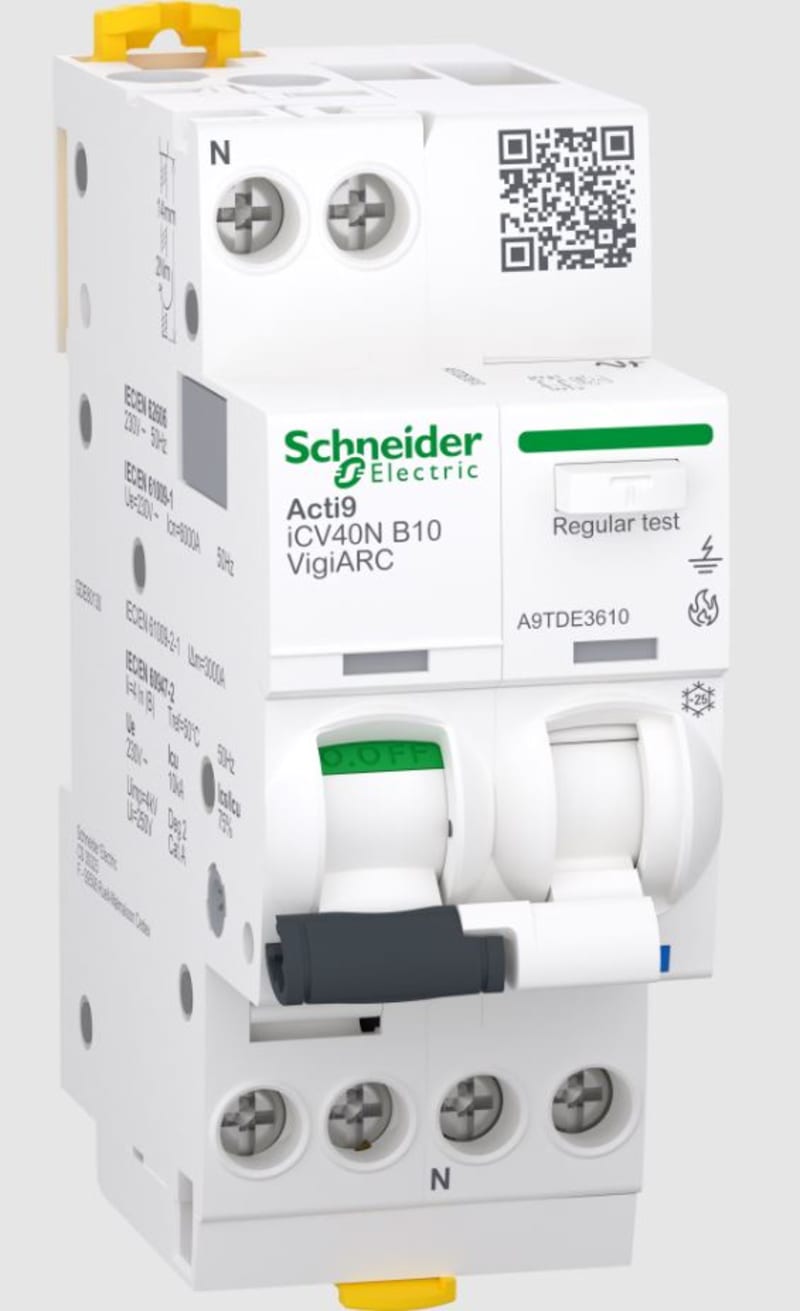

Schneider Electric Arc fault detection RCBO, ACTI9 ICV40N ARC, 1P+N, 10A, B curve, 30MA, type A-SI, 6000A A9TDE3610
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9TDE3610 Acti 9 Active - Residual current circuit breaker with overcurrent - 1pol + N - 10A B - 30mA A-SI type.
Technical Specifications
- Manufacturer part number (MPN)
- A9TDE3610
- EAN / GTIN
- 3606481906465
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Rated current
- 10 A
- Range
- Acti9
- Product name
- Acti9 iCV40 ARC
- Product or component type
- Arc fault detection RCBO
- Device short name
- iCV40N ARC
- Product specific application
- Arc fault detection
- Standards
- EN/IEC 62606; EN/IEC 61009-1; EN/IEC 60947-2; EN/IEC 61009-2-1
- Poles description
- 1P + N
- Number of protected poles
- 1
- Curve code
- B
- Breaking capacity code
- N
- Breaking capacity
- 6000 A Icn at 230 V AC 50 Hz conforming to EN/IEC 61009-2-1; 10 kA Icu at 230 V AC 50 Hz conforming to EN/IEC 60947-2
- Rated breaking and making capacity
- Idm 3000 A at 230 V AC 50 Hz conforming to EN/IEC 61009-2-1
- Neutral position
- Left
- Network type
- AC
- Earth-leakage protection time delay
- Instantaneous
- Earth-leakage protection class
- Type A-SI (Super Immunised)
- Electrical data recording
- Date and time; Maintenance indicators
- Suitability for isolation
- Yes
- Residual current tripping technology
- Voltage independent
- Trip unit technology
- Thermal-magnetic
- Earth-leakage protection
- Integrated
- [In] rated current
- 10 A
- Network frequency
- 50 Hz
- [Ue] rated operational voltage
- 230 V AC 50 Hz
- Device location in system
- Outgoer
- Magnetic tripping limit
- 3...5 x In
- [Ics] rated service breaking capacity
- 6000 A AC 50 Hz conforming to EN/IEC 61009-2-1; 7.5 kA AC 50 Hz conforming to EN/IEC 60947-2
- Limitation class
- 3
- [Ui] rated insulation voltage
- 250 V AC 50 Hz between phase and neutral
- Threshold tripping voltage
- 275 V for +/- 5 V
- [Uimp] rated impulse withstand voltage
- 4 kV
- Contact position indicator
- Yes
- Control type
- Toggle
- Local signalling
- ON, OFF, fault trip; LED arc fault diagnostic
- mounting mode
- Clip-on
- Mounting support
- DIN rail
- Colour
- White (RAL 9003)
- Mechanical durability
- 20000 cycles
- Electrical durability
- 20000 cycles 230 V AC 50 Hz
- Overvoltage category
- III
- Locking options description
- Padlocking device
- cable entry
- Top and bottom
- Connections - terminals
- Tunnel type terminal 1…16 mm² rigid; Tunnel type terminal 1…10 mm² flexible
- Wire stripping length
- 14 mm
- Tightening torque
- 2 N.m
- Comb busbar and distribution block compatibility
- YES
- 9 mm pitches
- 4
- Height
- 91 mm
- Width
- 36 mm
- Depth
- 73 mm
- Product weight
- 220 g
- Total power losses
- 2.906 W
- Power losses per pole
- 2.55 W
- Power losses on neutral
- 0.355 W
- Earth-leakage sensitivity
- 30 mA
- IP degree of protection
- IP20 conforming to IEC 60529
- Pollution degree
- 2 conforming to EN/IEC 62606
- Tropicalisation
- Severity B conforming to IEC 60068-2-30 for 28 d
- Relative humidity
- 95 % at 55 °C
- Operating altitude
- 2000 m
- Ambient air temperature for operation
- -25…50 °C
- Ambient air temperature for storage
- -40…80 °C
- Quality labels
- OVE
- Warranty (in months)
- 18
