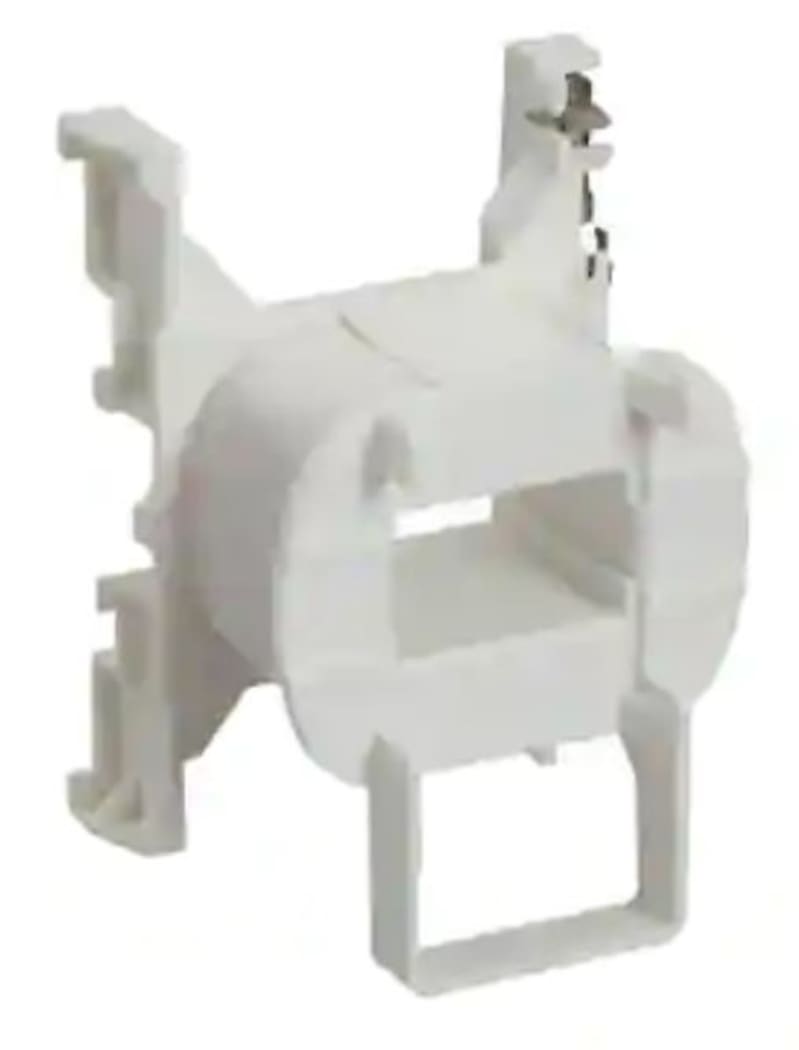

Coil 110V 50Hz LC1D115-D150

Schneider Electric LX1D8F7 Coil 110V 50Hz LC1D115-D150.

Manufacturer part number (MPN)

LX1D8F7

EAN / GTIN

3389110864755

Sales unit

pcs

Package quantity

20 pcs

Voltage

110 V

Frequency

50 Hz

Range

TeSys

Product or component type

Contactor coil

Device short name

LX1D8

Control circuit type

AC at 50/60 Hz

[Uc] control circuit voltage

110 V AC 50/60 Hz

Average resistance

4377 Ohm at 20 °C

Inductance of closed circuit

109.69 H

Product compatibility

LC1D150; LC1D115

Mechanical durability

8 Mcycles

Maximum operating rate

1200 cyc/h 60 °C

Coil technology

Without built-in suppressor module

Control circuit voltage limits

Drop-out: 0.3...0.5 Uc at 50/60 Hz (at <55 °C); Operational: 0.8...1.15 Uc at 50/60 Hz (at <55 °C)

Inrush power in VA

280…350 VA 60 Hz cos phi 0.9 (at 20 °C); 280…350 VA 50 Hz cos phi 0.9 (at 20 °C)

Hold-in power consumption in VA

2…18 VA 60 Hz cos phi 0.9 (at 20 °C); 2…18 VA 50 Hz cos phi 0.9 (at 20 °C)

Heat dissipation

3…4.5 W at 50/60 Hz

Ambient air temperature for operation

-5…60 °C

Warranty (in months)

18

Rated control supply voltage AC 50 Hz

110 V

Rated control supply voltage AC 60 Hz

110 V

Voltage type for actuating

AC

Country of origin

Czechia

HS Code

8505.90
