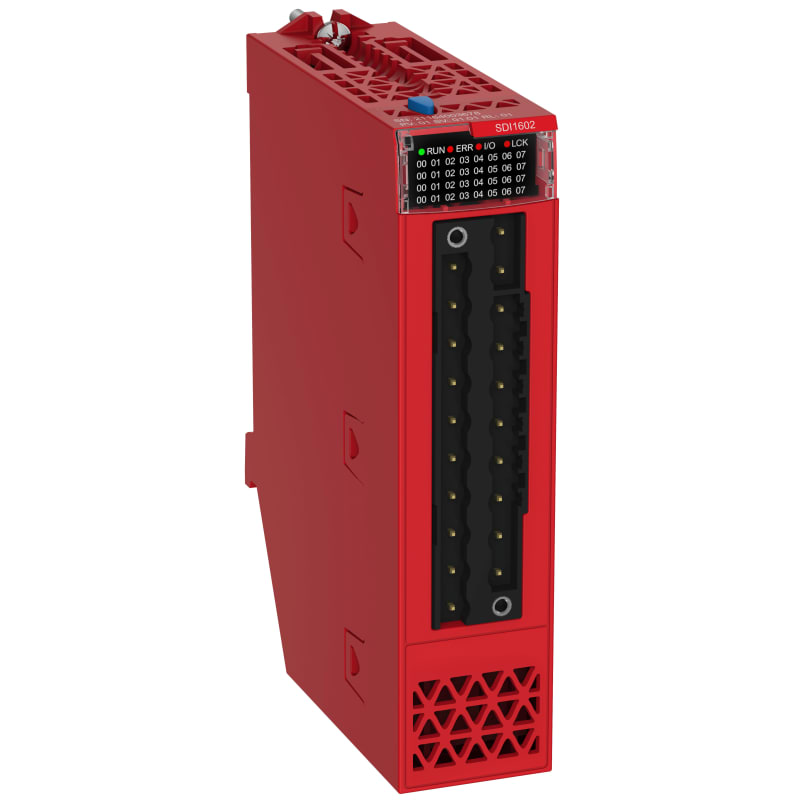

Schneider Electric discrete input module - 16 inputs - 24 V DC positive - Safety BMXSDI1602

Schneider Electric BMXSDI1602 Modicon X80 - 16 Entrées Tor 24Vdc Sink, SIL3/Cat.2/PLd.

Manufacturer part number (MPN)

BMXSDI1602

EAN / GTIN

3606481204912

Sales unit

pcs

Package quantity

8 pcs

Range of product

Modicon X80

Product or component type

Discrete input module

Device application

Industrial application

Discrete input number

16

Discrete input voltage

24 V DC for not isolated

Discrete input logic

Positive logic (sink)

Input wiring mode

2 or 3 wires

Discrete input current

3.2 mA at 24 V DC

Input impedance

7500 Ohm

Paralleling of inputs

Yes

Input protection type

Reverse polarity protection

Insulation resistance

> 10 MOhm 500 V DC

DC typical response time

6 ms

DC maximum response time

6 ms

Sensor power supply

: 19…30 V

Typical current consumption

256 mA DC; 100 mA at 24 V DC

Power dissipation in W

3.57 W

Isolation between channels and bus

1500 V for 1 minute

MTBF reliability

265000 H

Voltage detection threshold

18 V DC sensor OK

Local signalling

1 LED (green) for module operating (RUN); 1 LED per channel (green) for channel diagnostic; 1 LED (red) for module error (ERR); 1 LED (red) for module I/O

Height

134.6 mm

Width

32 mm

Depth

86 mm

Product weight

0.115 kg

IP degree of protection

IP20

Protective treatment

Conformal coating

Dielectric strength

1500 V AC at 50/60 Hz 1 minute, primary/secondary

Ambient air temperature for operation

-25…70 °C

Relative humidity

5…95 % at 55 °C without condensation

Operating altitude

0...2000 m; 2000...5000 m with derating

Environmental characteristic

Gas resistant class Gx; Gas resistant class 3C4; Dust resistant class 3S4; Sand resistant class 3S4; Salt resistant level 2; Mold growth resistant class 3B2; Fungal spore resistant class 3B2

Number of Units in Package 1

1

Number of Units in Package 2

8

Number of Units in Package 3

64

Country of origin

FR

Warranty (in months)

18

Power consumption

3.57 W

Voltage type (supply voltage)

DC

Number of digital inputs

16

Digital inputs configurable

No

Digital outputs configurable

No

Input current at signal 1

3.2 mA

Type of voltage (input voltage)

DC

Type of digital output

None

Type of output voltage

DC

Short-circuit protection, outputs available

No

Redundancy

No

Type of electric connection

Plug-in connection

Suitable for safety functions

Yes

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 1G

Explosion safety category for dust

ATEX dust-ex-protection, Cat. 1D

HS Code

8538.90
