Door cable compartment PrismaSeTG CABINET-IP30 12MOD
Pricing
Request a quote
We reply within 24 hours
Product Description

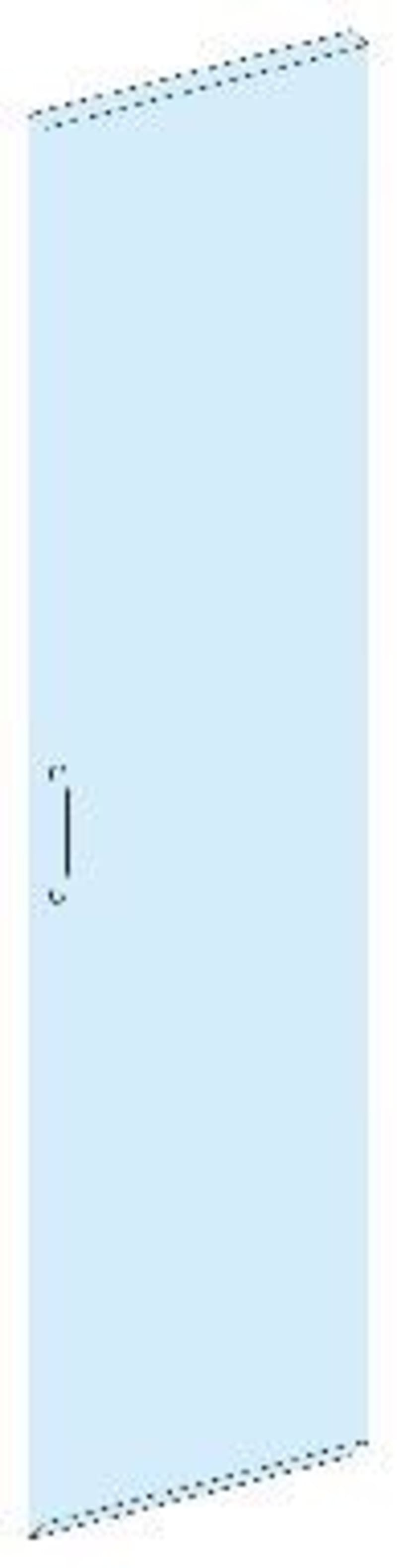

Schneider Electric LVS08184 Door for cable compartment PrismaSeT G Wall-mount cabinet 12-modules-width 300mm- IP30-with handtak and key 405.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08184
- EAN / GTIN
- 3606481878137
- Sales unit
- pcs
- IP rating
- IP30
- Modular width
- 12 modules
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Door
- Range compatibility
- PrismaSeT PrismaSeT G duct
- Provided equipment
- door; handle; keylock (key 405); other keylock and insert to be ordered separately; 2 hinge
- type of door
- Plain
- IP degree of protection
- IP43 with door, canopy and IP43 gasket; IP30 without door; IP40 with door; IP41 with door and canopy
- installation description
- Wall-mounted duct - width 300 mm
- Door opening side
- Reversible
- Number of locks
- 1
- door opening angle
- 130 °
- Number of vertical modules [50 mm]
- 12
- Enclosure material
- Handle: polyamide; Cover frame: treated sheet steel
- Quantity per set
- Set of 1
- Height
- 616.6 mm
- Width
- 300 mm
- Depth
- 33 mm
- Product weight
- 2.54 kg
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- IK degree of protection
- IK10 conforming to EN/IEC 62262
- Standards
- IEC 61439-1; IEC 61439-2
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 30
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Compartment door
- EMC-version
- No
- Material
- Steel
- Degree of protection (IP)
- IP40
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606481878137
- SAP 1200546923
- Code 82880375
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric PanelSeT SF/SM partial 19" swing rack - 601 mm NSYRSWP12
Schneider Electric
Load-break switch INS2000 3P
31338
Schneider Electric
Schneider Electric Cylindrical barrel key 405E mounted with esscutcheon NSYML405SD
Schneider Electric
Schneider Electric Harmony, Solid state relay, 20 A, DIN rail mount, zero voltage switching, input 4...32 V DC, output 48...600 V AC SSD1A320BDC2
Schneider Electric
Schneider Electric TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 25 A - 48 V DC coil LC1D25ED
Schneider Electric
MEK.Interlock (XACA009)
Schneider Electric

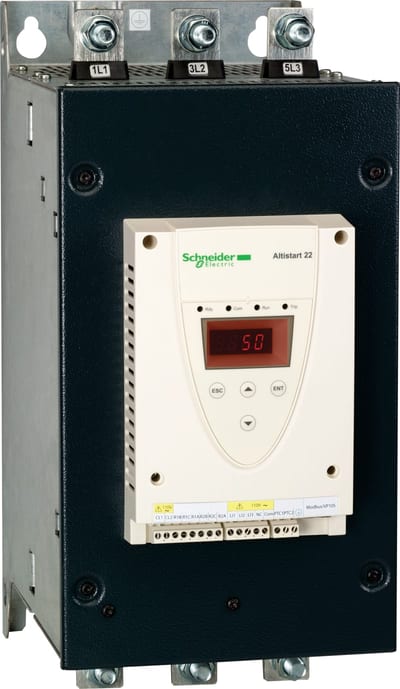

Schneider Electric soft STARTER-ATS22-CONTROL 220V-POWER 230V(110kW)/400...440V(220kW)/500V(250kW) ATS22C41S6
