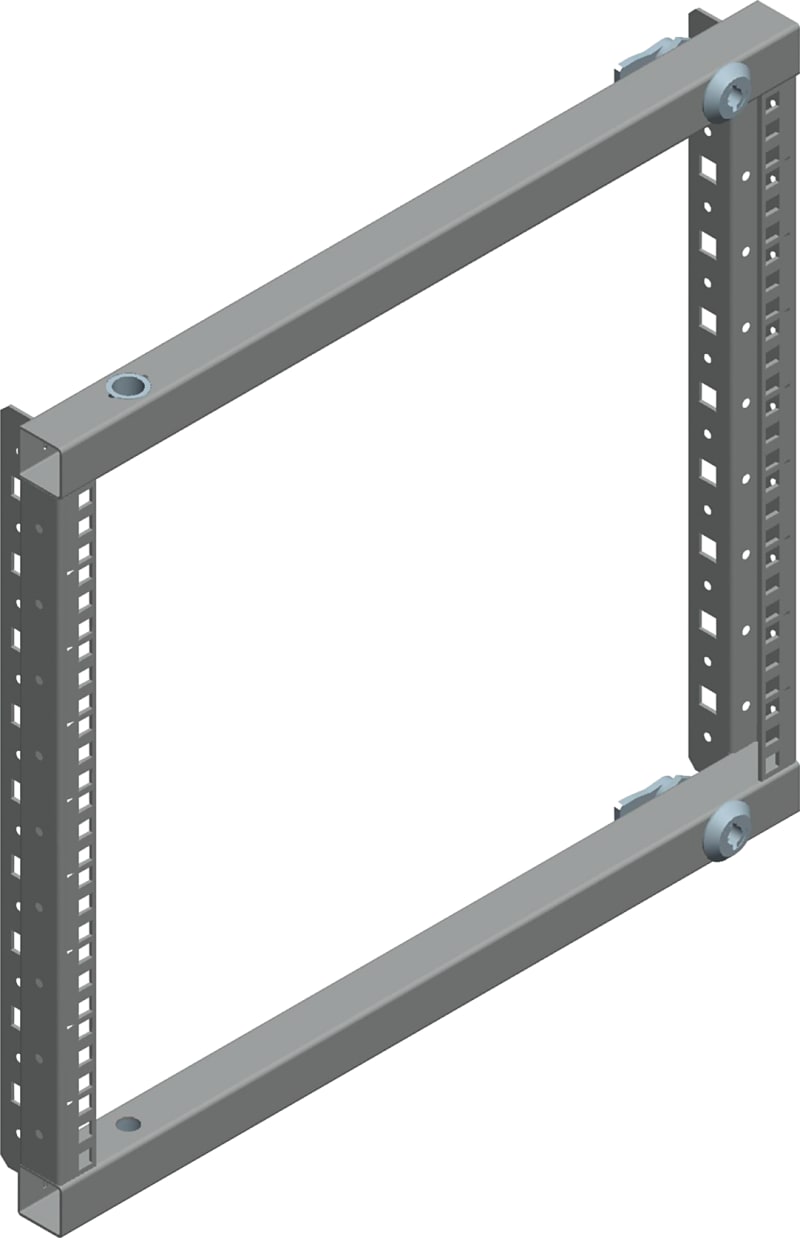

Schneider Electric PanelSeT SF/SM partial 19" swing rack - 601 mm NSYRSWP12
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYRSWP12 Spacial SF/SM partial 19" - Swing frame - 601 mm - 12 modules.
Technical Specifications
- Manufacturer part number (MPN)
- NSYRSWP12
- EAN / GTIN
- 3606480067341
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- 19" rack
- Application
- Electronic application
- For enclosure nominal dimensions
- - H: 601 mm
- Rack type
- Swing
- Mounting location
- Front of enclosure
- Mounting support
- Partial 19" swing rack support
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SM
- Device composition
- 1 rack
- Number of units 19"
- 12
- Rack coverage
- Partial
- Material
- Steel
- Enclosure/cubicle description
- Floor-standing enclosure
- Surface finish
- Zinc coated
- Lock type
- Lock 5 mm double bar
- fixing mode
- By fixing element
- Adjustment
- Adjustable in depth every 25 mm
- Permanent permissible load
- 2 kg per unit
- Opening of the 19" racks
- Reversible 120 °
- Height
- 601 mm
- Width
- 600 mm; 800 mm
- Depth
- 601 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.500 cm
- Package 1 Width
- 51.500 cm
- Package 1 Length
- 61.500 cm
- Package 1 Weight
- 3.440 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 20
- Package 2 Height
- 105.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 82.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Model
- Swing frame
- Suitable for enclosure building width
- 600 mm
- Suitable for enclosure building height
- 601 mm
- Max. load capacity
- 24 kg
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480067341
- SAP 1000470675
- Code 8932234
