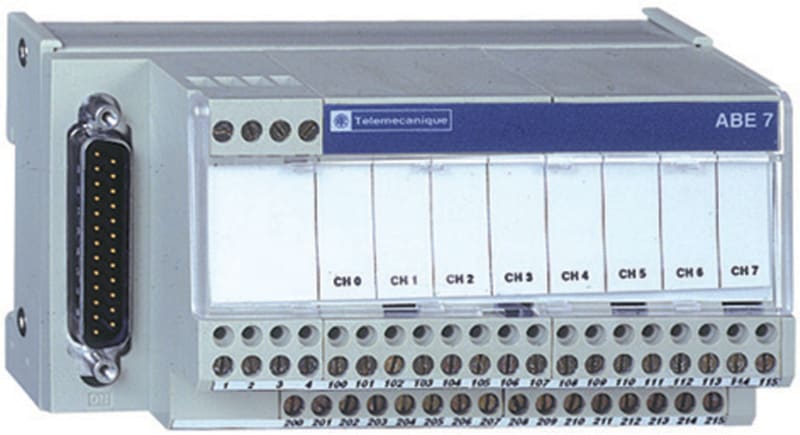

Schneider Electric ABE7CPA02 8 In/O ana, 8 per group.

Manufacturer part number (MPN)

ABE7CPA02

EAN / GTIN

3389110644463

Sales unit

pcs

Package quantity

27 pcs

Range of product

Modicon ABE7

Product or component type

Connection sub-base for counter and analogue channels

Number of channels

8

Connections - terminals

Screw type terminals, 1 x 0.09...1 x 1.5 mm² (28 AWG...16 AWG) flexible with cable end; Screw type terminals, 1 x 0.14...1 x 2.5 mm² (26 AWG...12 AWG) solid; Screw type terminals, 1 x 0.14...1 x 2.5 mm² (26 AWG...14 AWG) flexible without cable end; Screw type terminals, 2 x 0.09...2 x 0.75 mm² (28 AWG...20 AWG) flexible with cable end; Screw type terminals, 2 x 0.2...2 x 2.5 mm² (24 AWG...14 AWG) solid

Function of module

Analogue input current, compatible with Premium; Analogue input voltage, compatible with Premium; Pt 100, compatible with Premium

Connection to PLC

SUB-D 25

Fixing mode

By clips (35 mm symmetrical DIN rail); By screws (solid plate with fixing kit)

[Ui] rated insulation voltage

2000 V terminals/mounting rails

Installation category

II conforming to IEC 60664-1

Tightening torque

0.6 N.m with flat Ø 3.5 mm screwdriver

Product weight

0.29 kg

Product certifications

GL; DNV; UL; CSA; EAC

IP degree of protection

IP20 conforming to IEC 60529

Protective treatment

TC

Resistance to incandescent wire

750 °C, extinction time <30 s conforming to IEC 60695-2-11

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance

2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6

Resistance to electrostatic discharge

4 kV (contact) level 3 conforming to IEC 61000-4-2; 8 kV (air) level 3 conforming to IEC 61000-4-2

Resistance to radiated fields

10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3

Resistance to fast transients

2 kV level 3 conforming to IEC 61000-4-4

Ambient air temperature for operation

0…60 °C conforming to IEC 61131-2

Ambient air temperature for storage

-40…80 °C conforming to IEC 61131-2

Pollution degree

2 conforming to IEC 60664-1

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

7.100 cm

Package 1 Width

8.200 cm

Package 1 Length

13.600 cm

Package 1 Weight

301.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

27

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

8.683 kg

Country of origin

LV

Warranty (in months)

18

Width

125 mm

Height

70 mm

Depth

67 mm

Housing colour

Grey

Length

67 mm

Housing material

Plastic, metallized

Operating temperature

0–60 °C

With potential separation

No

Explosion safety category for gas

None

Explosion safety category for dust

None

Degree of protection (IP)

IP20

With LED indication

No

Connection for NPN-sensors

No

Number of channels per connector slot

8

Number of sensor-/actuator-slots

1

Length of the preassembled cable

3 m

Cable length configurable

Yes

Cable outer diameter for cable gland

0.09–2.5 mm

Diameter contact female

2.5 mm

Number of poles sensor/actuator slots

8

Fix cable version suitable for cable guide chain

No

Connectable conductor cross section

0.09–2.5 mm²

Material contact body

Other copper alloys

HS Code

8536.90
