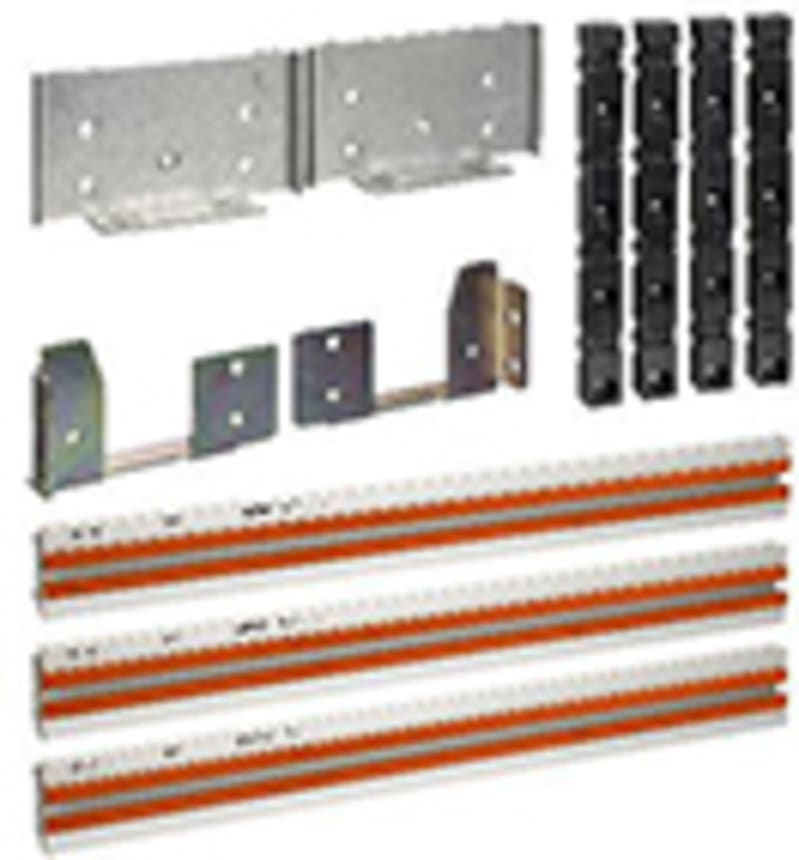

Schneider Electric Connection Horiz. LGYE MTZ2/NW 1600A 4P Prisma P LVS04494
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04494 Horizontal connection LGYE for MTZ2 1600A 4P PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04494
- EAN / GTIN
- 3606481867902
- Sales unit
- pcs
- Rated current
- 1600 A
- Number of poles
- 4P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Connection
- product name
- PrismaSeT PrismaSeT P enclosure; Masterpact MasterPact NW
- Accessory / separate part category
- Current distribution accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- connection transfer assembly
- Poles description
- 4P
- installation description
- Cubicle - width 650 mm
- Cubicle depth
- 600 mm: front; 600 + 400 mm: rear
- Installed device
- Masterpact: drawout NW08...16 - control: toggle vertical installation; Masterpact: fixed NW08...16 - control: toggle vertical installation
- [Ie] rated operational current
- 1600 A
- Length
- 580 mm
- Quantity per set
- Set of 1
- functional unit
- 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 4P 1 front connection on adaptor 36; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 4P 1 front connection on Canalis 27; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 4P 1 rear connection on adaptor 15; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 4P 1 front connection on adaptor 19; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 4P 1 rear connection on Canalis 17; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 4P 1 front connection on busbar 36; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 4P 1 front connection on adaptor 18; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 4P 1 rear connection on adaptor 14; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 4P 1 front connection on Canalis 27; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 4P 1 rear connection on Canalis 16; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 4P 1 front connection on busbar 36
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 24
- Warranty (in months)
- 18
- Width
- 650 mm
- With cover
- No
- Max. rated current
- 1600 A
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481867902
- SAP 1200546947
- Code 82879442
