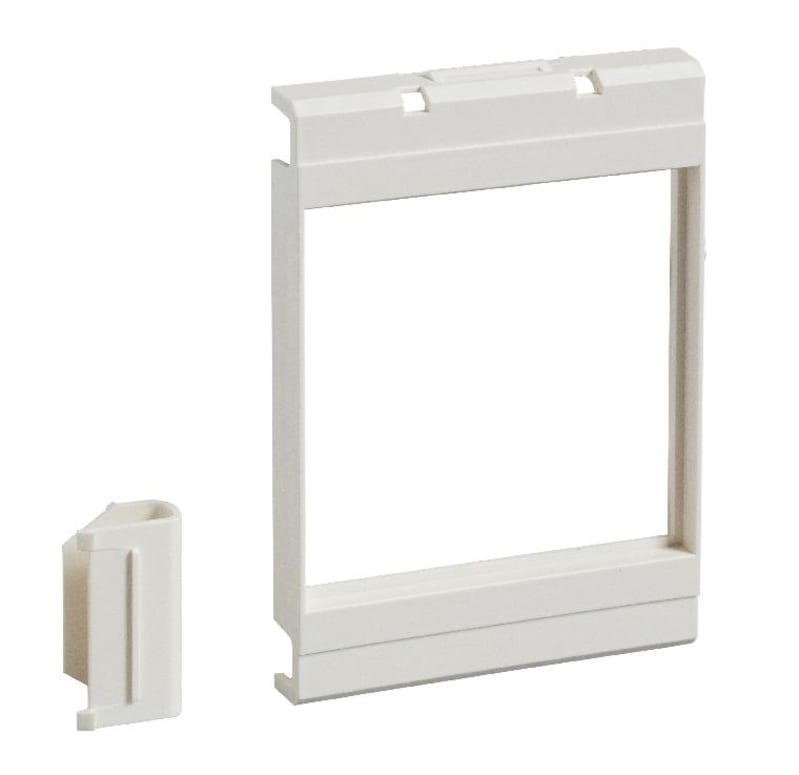

Mounting plate with Cut-Out 96X96 PrismaSeT G/P

Schneider Electric LVS03903 Perforated mounting plate For 96X96 Instrumenter-PrismaSeT G/P.

Manufacturer part number (MPN)

LVS03903

EAN / GTIN

3606481885661

Sales unit

pcs

Package quantity

200 pcs

Range

PrismaSeT

Range of product

PrismaSeT G; PrismaSeT P

Product or component type

Mounting plate

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle

installation description

Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 400 mm depth 400 mm; Cubicle - width 650 mm depth 400 mm; Cubicle duct - width 300 mm depth 400 mm

Installed device

Human-switchboard interface: 96 x 96 mm device; PowerLogic: PM400...800; Enerlin'X: FDM121

Number of vertical modules [50 mm]

3 module(s): 96 x 96 mm device in 600 mm Widefloor-standing enclosure; 3 module(s): 96 x 96 mm device in 600 mm Widewall-mounted enclosure; 3 module(s): 96 x 96 mm device in 650 mm Widecubicle; 3 module(s): 96 x 96 mm device in 300 mm Widecubicle duct; 3 module(s): 96 x 96 mm device in 400 mm Widecubicle; 3 module(s): FDM121 in 600 mm Widefloor-standing enclosure; 3 module(s): FDM121 in 600 mm Widewall-mounted enclosure; 3 module(s): FDM121 in 650 mm Widecubicle; 3 module(s): FDM121 in 300 mm Widecubicle duct; 3 module(s): FDM121 in 400 mm Widecubicle; 3 module(s): PM400...800 in 600 mm Widefloor-standing enclosure; 3 module(s): PM400...800 in 600 mm Widewall-mounted enclosure; 3 module(s): PM400...800 in 650 mm Widecubicle; 3 module(s): PM400...800 in 300 mm Widecubicle duct; 3 module(s): PM400...800 in 400 mm Widecubicle

Standards

IEC 61439-2

Product certifications

ASTA

Material

Plastic

Colour

White (RAL 9001)

Width

101 mm

Height

150 mm

Depth

15 mm

Product weight

0.04 kg

Functional unit

600 mm PrismaSeT G floor-standing enclosure human-switchboard interface 96 x 96 mm device 4 3; 600 mm PrismaSeT G wall-mounted enclosure human-switchboard interface 96 x 96 mm device 4 3; 650 mm 400 mm PrismaSeT P cubicle human-switchboard interface 96 x 96 mm device 4 3; 300 mm 400 mm PrismaSeT P cubicle duct human-switchboard interface 96 x 96 mm device 4 3; 400 mm 400 mm PrismaSeT P cubicle human-switchboard interface 96 x 96 mm device 4 3; 600 mm PrismaSeT G floor-standing enclosure PowerLogic 4 3; 600 mm PrismaSeT G wall-mounted enclosure PowerLogic 4 3; 650 mm 400 mm PrismaSeT P cubicle PowerLogic 4 3; 300 mm 400 mm PrismaSeT P cubicle duct PowerLogic 4 3; 400 mm 400 mm PrismaSeT P cubicle PowerLogic 4 3; 600 mm PrismaSeT G floor-standing enclosure Enerlin'X FDM121 4 3; 600 mm 11 G wall-mounted enclosure Enerlin'X FDM121 4 3; 650 mm 400 mm PrismaSeT P cubicle Enerlin'X FDM121 4 3; 300 mm 400 mm 13 P cubicle duct Enerlin'X FDM121 4 3; 400 mm 400 mm PrismaSeT P cubicle Enerlin'X FDM121 4 3

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

1.5 cm

Package 1 Width

10.2 cm

Package 1 Length

15.0 cm

Package 1 Weight

32.0 g

Unit Type of Package 2

S04

Number of Units in Package 2

200

Package 2 Height

30.0 cm

Package 2 Width

40.0 cm

Package 2 Length

60.0 cm

Package 2 Weight

7.163 kg

Country of origin

FR

Warranty (in months)

18

Model

Blind plate

RAL-number

9001

HS Code

3926.90

• EAN 3606481885661
• SAP 1200546766
• Code 82880676
