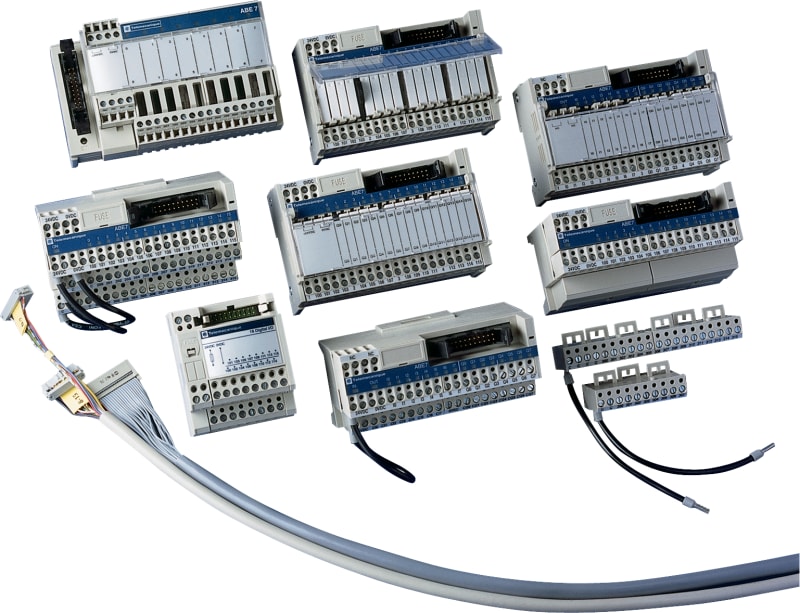

Schneider Electric sub-base - soldered solid state output relay ABE7 - 16 inputs - 230 V AC ABE7S16E2M0

Schneider Electric ABE7S16E2M0 16 O relay,2 term,insulated,230VAC.

Manufacturer part number (MPN)

ABE7S16E2M0 EAN / GTIN: 3389110546286 HS code: 8536.90 Sales unit: pcs Package quantity: 18 pcs Voltage: 230 V AC Range of product: Modicon ABE7 Product or component type: Solid state input relay sub-base [Us] rated supply voltage: 230/240 V AC 50/60 Hz (sensor end); 24 V DC (PLC end) Number of channels: 16 Number of terminal per channel: 2 Connections - terminals: Screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09…1.5 mm² (28 AWG...16 AWG) flexible with cable end; Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14…2.5 mm² (26 AWG...12 AWG) solid; Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14…2.5 mm² (26 AWG...14 AWG) flexible without cable end; Screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.09…0.75 mm² (28 AWG...20 AWG) flexible with cable end; Screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2…2.5 mm² (24 AWG...14 AWG) solid Terminal block type: Removable Supply voltage limits: 19…30 V DC (PLC end) conforming to IEC 61131-2 Isolation PLC/operative part: Yes Protection type: Internal fuse 1 A 5 x 20 mm fast blow PLC end; Adjustable by external fuse fast blow sensor end Fixing mode: By clips (35 mm symmetrical DIN rail); By screws (solid plate with fixing kit) Current per channel: 0.008 A Current state 1 guaranteed: >= 4.5 mA (sensor end) Voltage state 1 guaranteed: >= 164 V for sensor end Maximum switching current: 15 mA (PLC end) minimum switching current: 1 mA for PLC end Response time: <= 20 ms from state 0 to 1; <= 20 ms from state 1 to 0 Switching frequency: <= 25 Hz duty cycle: 50 % [Uimp] rated impulse withstand voltage: 2.5 kV conforming to IEC 60947-1 [Ui] rated insulation voltage: 2000 V Installation category: II conforming to IEC 60664-1 Tightening torque: 0.6 N.m with flat Ø 3.5 mm screwdriver Product weight: 0.407 kg Dielectric strength: 2000 V at 50/60 Hz conforming to IEC 60947-1 Product certifications: DNV; GL; CSA; EAC Standards: IEC 61131-2 Type 1 IP degree of protection: IP2X conforming to IEC 60529 Resistance to incandescent wire: 750 °C conforming to IEC 60695-2-11 Shock resistance: 15 gn for 11 ms conforming to IEC 60068-2-27 Vibration resistance: 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 Resistance to electrostatic discharge: 4 kV (contact) level 3 conforming to IEC 61000-4-2; 8 kV (air) level 3 conforming to IEC 61000-4-2 Resistance to radiated fields: 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 Resistance to fast transients: 2 kV level 3 conforming to IEC 61000-4-4 Ambient air temperature for operation: -5…60 °C conforming to IEC 61131-2 Ambient air temperature for storage: -40…80 °C conforming to IEC 61131-2 Pollution degree: 2 conforming to IEC 60664-1 Country of origin: LV Warranty (in months): 18

HS Code

8536.90

• EAN 3389110546286
• SAP 1000022520
• Code 8199797
