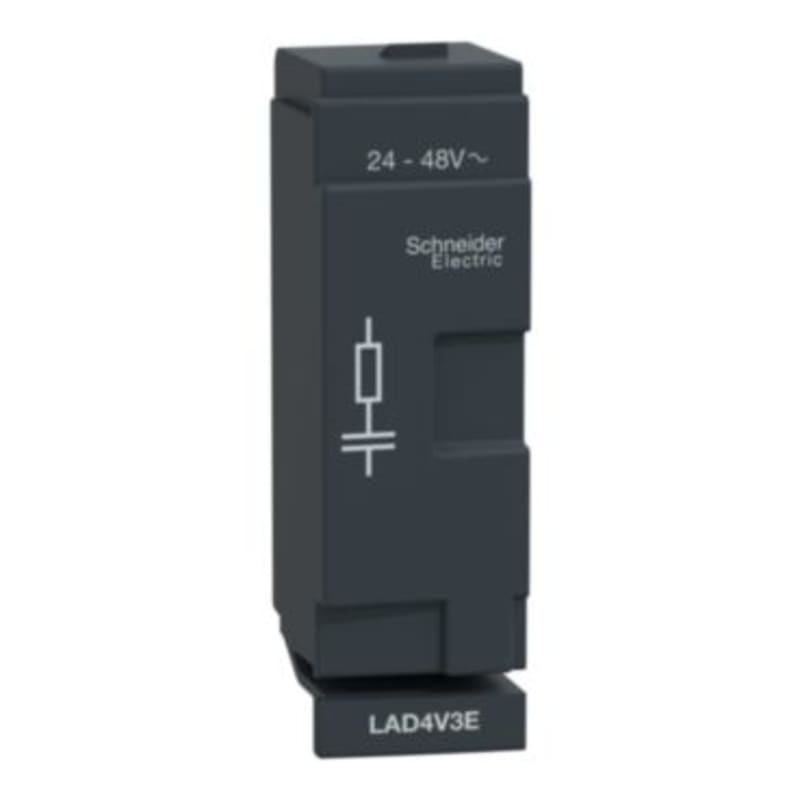

Schneider Electric TeSys D - suppressor module - varistor - 24…48 V AC/DC LAD4V3E

Schneider Electric LAD4V3E D40-65A varist 24-48V AC/DC.

Manufacturer part number (MPN)

LAD4V3E

EAN / GTIN

3389119410205

Sales unit

pcs

Package quantity

10 pcs

Voltage

24-48 V

Range

TeSys; TeSys Deca

Device short name

LAD4

Product or component type

Suppressor module

Product compatibility

3P LC1D40A...D80A; 4P LC1DT60A...DT80A

Mounting location

Side

mounting mode

By clips

Suppressor technology

Varistor (peak limiting)

[Uc] control circuit voltage

24...48 V AC/DC; 50/60 Hz

Maximum peak voltage

2 Uc

Product weight

0.02 kg

Colour

Dark grey

Standards

IEC 60947-5-1; EN 60947-5-1; CSA C22.2 No 60947-5-1; UL 60947-5-1; GB/T 14048.5

Product certifications

UL; CSA

IP degree of protection

IP2X conforming to IEC 60529

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…80 °C

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

100

Country of origin

CZ

Warranty (in months)

18

Function

Varistor (voltage-sensitive resistor)

Rated control supply voltage AC 50 Hz

24–48 V

Rated control supply voltage AC 60 Hz

24–48 V

Rated control supply voltage DC

24–48 V

Voltage type (operating voltage)

AC/DC

With LED indication

No

Operating voltage AC 50 Hz

24–48 V

Operating voltage AC 60 Hz

24–48 V

Operating voltage DC

24–48 V

Voltage type for actuating

AC/DC

HS Code

8541.10

• EAN 3389119410205
• SAP 1000048919
• Code 8848599
