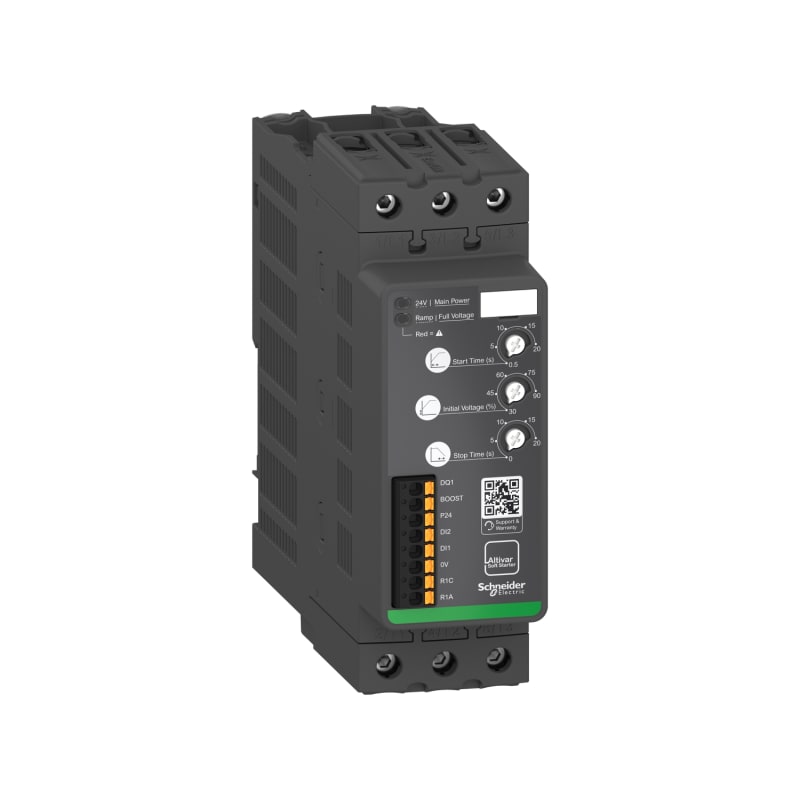

Schneider Electric Altivar Soft Starter ATS130, 45A, 200 to 480V AC, control supply 24V DC ATS130N2D45LT

Schneider Electric ATS130N2D45LT Altivar soft starter ATS130, 45A, 200 for 480V AC, control supply 24V DC.

Manufacturer part number (MPN)

ATS130N2D45LT EAN / GTIN: 3606486007402 Sales unit: pcs Package quantity: 40 pcs Voltage: 480 V Rated current: 45 A Range of product: Altivar Soft Starter ATS130 Product or component type: Soft starter Product destination: Asynchronous motors Product specific application: Simple machine Device short name: ATS130 Network number of phases: 3 phases Utilisation category: AC-53A Ue power supply voltage: 200...480 V - 15...10 % power supply frequency: 50...60 Hz +/- 5 Hz [Ie] rated operational current: 45 A in line (at <40 °C) Service factor at Ie: 100 Torque control: False IP degree of protection: IP20 Motor power kW: 11 kW at 230 V normal duty; 22 kW at 400 V normal duty; 22 kW at 440 V normal duty Motor power hp: 10 hp at 200 V normal duty; 10 hp at 208 V normal duty; 15 hp at 230 V normal duty; 30 hp at 460 V normal duty; 30 hp at 480 V normal duty Overload current profile: 300 % Ie for 5 s On-load factor: 70 % Operating cycles/hour: 35 cyc/h minimum motor current: 20 % Ie Device connection: In line [Us] control circuit voltage: 24 V DC +/- 10 % Control power: 21.6 W starting and stopping; 3 W steady state Integrated motor overload protection: False Protection type: Phase failure: mains; Thermal protection: starter; Bypass error: starter; Control voltage Us: starter Rated current pwr loss specification: 45 A Power loss static current independent: 3 W Power loss per device current dependent: 9 W Power loss during starting: 264 W 300 % Ie Standards: EN/IEC 60947-4-2; UL 60947-4-2; IEC 60664-1 Product certifications: CE; UKCA; CCC; RCM; EAC; UL Marking: CE; CCC; UKCA; RCM; EAC [Uc] control circuit voltage: 24 V DC Discrete input number: 3 Discrete input type: (DI) digital input, 10 kOhm; (DI2) digital input, 10 kOhm; (BOOST) digital input, 10 kOhm Input compatibility: Discrete input level 1 PLC conforming to EN/IEC 61131-2 Discrete input logic: digital input at State 0: 0... 13 V, >= 0.5 mA Relay output number: 1 Relay output type: Relay outputs R1A, R1C NO minimum switching current: 2.5 mA at 24 V DC for relay outputs Maximum switching current: On resistive load for relay outputs : 1 A 250 V AC 400000 cycles; On resistive load for relay outputs : 1 A 30 V DC 400000 cycles; On inductive load for relay outputs : 1 A 250 V AC cos phi = 0.4 100000 cycles; On inductive load for relay outputs : 1 A 30 V DC cos phi = 0.4 100000 cycles Discrete output number: 1 Discrete output type: Non programmable digital output DQ1 <= 30 V 200 mA Display type: 1 LED (green) for control power energized; 1 LED (yellow and red) for motor operation phases, errors Display screen available: False Operating position: Vertical +/- 30 degree Height: 166 mm Width: 55 mm Depth: 165 mm Product weight: 1.3 kg Suitable for mounting onto standard rails: True Function available: Deceleration voltage ramp; Boost internal bypass: True material declaration: True Pollution degree: Level 2 environmental class (during operation): Without salt mist: 3C3 conforming to IEC 60721-3-3; 3S3 conforming to IEC 60721-3-3 [Uimp] rated impulse withstand voltage: 4 kV [Ui] rated insulation voltage: 480 V Electromagnetic compatibility: Conducted and radiated emissions level B conforming to IEC 60947-4-2; Short voltage interruptions level 3 conforming to IEC 61000-4-11; Electrostatic discharge level 2 conforming to IEC 61000-4-2; Radiated radio-frequency electromagnetic field immunity test level 1 conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test level 2 conforming to IEC 61000-4-4; Oscillatory waves immunity level 3 conforming to IEC 61000-4-12; Voltage/current impulse level 2 conforming to IEC 61000-4-5; Conducted disturbances, induced by radiofrequency fields level 1 conforming to IEC 61000-4-6 Ambient air temperature for operation: -10…40 °C (without derating); 40…60 °C (with current derating 1.5 % per °C) Ambient air temperature for storage: -25…70 °C Ambient air transport temperature: -40…70 °C Operating altitude: 0...1000 m without derating; 1000...4000 m 1 % per 100 m Relative humidity: 5…95 % non condensing without dripping water conforming to IEC 60068-2-3 Maximum acceleration under vibratory load (during storage): 10 m/s² at 9...200 Hz Maximum acceleration under vibratory load (during transport): 10 m/s² at 9...200 Hz Maximum deflection under vibratory load (during operation): 3 mm at 2-9 Hz Maximum deflection under vibratory load (during storage): 3 mm at 2-9 Hz Maximum deflection under vibratory load (during transport): 3 mm at 2-9 Hz Maximum acceleration under shock impact (during operation): 100 m/s² at 11 ms Maximum acceleration under shock load (during storage): 100 m/s² at 11 ms Maximum acceleration under shock load (during transport): 100 m/s² at 11 ms Country of origin: DE Warranty (in months): 18 Function: Single direction With display: No Degree of protection (IP): IP20 Release class: CLASS 10 Rated operation current Ie at 40 °C Tu: 45 A Rated power three-phase motor, inline, at 230 V: 11 kW Rated power three-phase motor, inline, at 400 V: 22 kW Rated surrounding temperature without derating: 40 °C Voltage type for actuating: AC

HS Code

8537.10

• EAN 3606486007402
• SAP 1200743363
• Code 83882463
