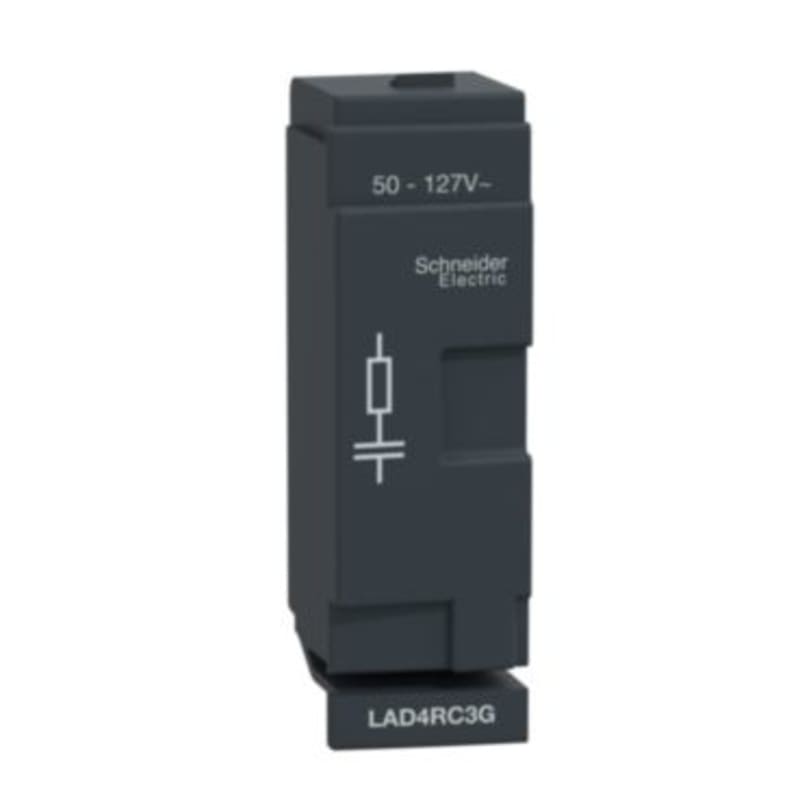

Schneider Electric D40A to D65A RC 50-127V Suppressor LAD4RC3G

Schneider Electric LAD4RC3G RC-element D40A-D65A 50-127V.

Manufacturer part number (MPN)

LAD4RC3G

EAN / GTIN

3389119410175

Sales unit

pcs

Package quantity

10 pcs

Range

TeSys; TeSys Deca

Device short name

LAD4

Product or component type

Suppressor module

Product compatibility

3P LC1D40A...D80A; 4P LC1DT60A...DT80A

Mounting location

Front

mounting mode

By clips

Suppressor technology

RC circuit

[Uc] control circuit voltage

50...127 V AC

Maximum peak voltage

3 Uc

Product weight

0.02 kg

Colour

Dark grey

Standards

IEC 60947-5-1; EN 60947-5-1; CSA C22.2 No 60947-5-1; UL 60947-5-1; GB/T 14048.5

Product certifications

UL; CSA

IP degree of protection

IP2X conforming to IEC 60529

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…80 °C

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

100

Country of origin

CZ

Warranty (in months)

18

Function

RC-element

Rated control supply voltage AC 50 Hz

50–127 V

Rated control supply voltage AC 60 Hz

50–127 V

Voltage type (operating voltage)

AC

With LED indication

No

Operating voltage AC 50 Hz

50–127 V

Operating voltage AC 60 Hz

50–127 V

Voltage type for actuating

AC

HS Code

8536.30

• EAN 3389119410175
• SAP 1000083398
• Code 8863058
