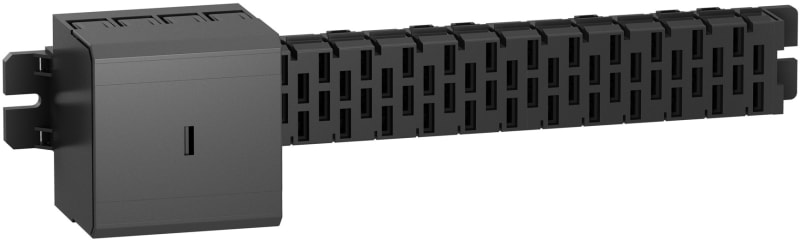

RAIL 4L 340mm (AK5JB143)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric AK5JB143 Busbar 4L 34mm.
Technical Specifications
- Manufacturer part number (MPN)
- AK5JB143
- EAN / GTIN
- 3389110576771
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Range
- Linergy
- Product name
- HK
- Product or component type
- Busbar
- Device application
- Distribution
- Tap-offs (18 mm)
- 12
- Bar length
- 344 mm
- Enclosure/cubicle width
- 600 mm
- Network type
- AC
- [Ie] rated operational current
- 160 A at 35 °C
- [Ue] rated operational voltage
- 400 V (off-load plugging-in and unplugging, with supply switched on) conforming to IEC 60439-1; 480 V (off-load plugging-in and unplugging, with supply switched on) conforming to CSA; 480 V (off-load plugging-in and unplugging, with supply switched on) conforming to UL; 600 V (plugging-in and unplugging, with supply switched off) conforming to CSA; 600 V (plugging-in and unplugging, with supply switched off) conforming to UL; 690 V (plugging-in and unplugging, with supply switched off) conforming to IEC 60439-1
- Number of conductors
- 4
- Bar width
- 45 mm
- Width
- 81 mm
- Depth
- 82 mm
- Network frequency
- 50/60 Hz
- [Ui] rated insulation voltage
- 600 V conforming to CSA; 600 V conforming to UL; 690 V conforming to IEC 60439-1
- Peak current
- 25 kA
- I²t on activation
- 10000000 A².s
- Protection type
- AM fuses In = 160 A, Isc = 100 kA, Ie = 160 A; GF fuses In = 160 A, Isc = 100 kA, Ie = 160 A; NS160H circuit breaker In = 160 A, Isc = 36 kA, Ie = 160 A; NS160H circuit breaker In = 160 A, Isc = 70 kA, Ie = 160 A
- Connections - terminals
- Connector 2.5…70 mm² flexible with cable end; Connector 2.5…70 mm² rigid
- Tightening torque
- 10 N.m
- Mounting position
- Vertical mounting using side stop AK5BT01 on mounting plates AK5PA; Horizontal mounting
- Flame retardance
- V0 conforming to UL 94
- Product weight
- 0.7 kg
- Standards
- IEC 60439
- Product certifications
- CSA; UL; LROS (Lloyds register of shipping); DNV
- IP degree of protection
- IPxx B conforming to IEC 60529
- Fire resistance
- 850 °C conforming to IEC 60695
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 30
- Country of origin
- FR
- Warranty (in months)
- 18
- Colour
- Grey
- Model
- Single
- Height
- 81 mm
- Flexible
- No
- RAL-number
- 7021
- Number of poles
- 4
- Length
- 344 mm
- Degree of protection (IP)
- IP20
- Rated voltage AC 50 Hz
- 400–690 V
- Number of tap-off units
- 12
- Rated current AC 50 Hz
- 160 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3389110576771
- SAP 1000076069
- Code 8793431
