Telefast ANA INN TC, M340
Pricing
Request a quote
We reply within 24 hours
Product Description

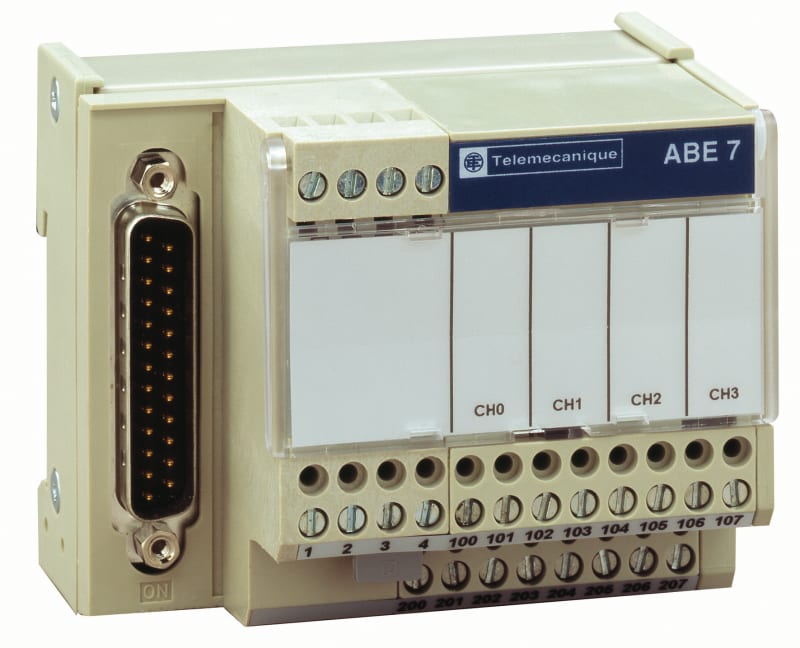

Schneider Electric ABE7CPA412 Telefast analog in TC, M340.
Technical Specifications
- Manufacturer part number (MPN)
- ABE7CPA412
- EAN / GTIN
- 3595863914696
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Range of product
- Modicon ABE7
- Product or component type
- Connection sub-base for analogue channels
- Number of channels
- 4
- Connections - terminals
- Screw type terminals, 1 x 0.09...1 x 1.5 mm² (28 AWG...16 AWG) flexible with cable end; Screw type terminals, 1 x 0.14...1 x 2.5 mm² (26 AWG...12 AWG) solid; Screw type terminals, 1 x 0.14...1 x 2.5 mm² (26 AWG...14 AWG) flexible without cable end; Screw type terminals, 2 x 0.09...2 x 0.75 mm² (28 AWG...20 AWG) flexible with cable end; Screw type terminals, 2 x 0.2...2 x 2.5 mm² (24 AWG...14 AWG) solid
- Function of module
- Distribution of 4 thermocouples, compatible with Modicon M340
- Product compatibility
- Modicon M340 BMXART0414; Modicon M340 BMXART0814
- Connection to PLC
- SUB-D 25
- Fixing mode
- By clips (35 mm symmetrical DIN rail); By screws (solid plate with fixing kit)
- [Ui] rated insulation voltage
- 2000 V terminals/mounting rails
- Installation category
- II conforming to IEC 60664-1
- Tightening torque
- 0.6 N.m with flat Ø 3.5 mm screwdriver
- Product weight
- 0.18 kg
- Product certifications
- GL; CSA; UL; DNV
- IP degree of protection
- IP20 conforming to IEC 60529
- Resistance to incandescent wire
- 750 °C, extinction time <30 s conforming to IEC 60695-2-11
- Shock resistance
- 15 gn for 11 ms conforming to IEC 60068-2-27
- Vibration resistance
- 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6
- Resistance to electrostatic discharge
- 4 kV (contact) level 3 conforming to IEC 61000-4-2; 8 kV (air) level 3 conforming to IEC 61000-4-2
- Resistance to radiated fields
- 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3
- Resistance to fast transients
- 2 kV level 3 conforming to IEC 61000-4-4
- Ambient air temperature for operation
- 0…60 °C conforming to IEC 61131-2
- Ambient air temperature for storage
- -40…80 °C conforming to IEC 61131-2
- Pollution degree
- 2 conforming to IEC 60664-1
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 27
- Country of origin
- LV
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3595863914696
- SAP 1000081618
- Code 8827497
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric PanelSeT SM horizontal adaptation profiles - 600 mm NSYSMHR6
Schneider Electric
Schneider Electric Miniature plug-in relay, 6 A, 4 CO, 48 V AC RXM4AB1E7
Schneider Electric
Schneider Electric Harmony, Solid state relay pre assembled, 0.1 A, DC switching, screw sockets, input 16…30 V DC, output 1…48 V DC SSL1D101BDPV
Schneider Electric
Schneider Electric Foot switch, Harmony XPE, single IP43, without cover, plastic, black, 2 NC + 2 NO XPEA111
Schneider Electric
Front plate INS630B-1600 4P-PRISMASET P
LVS03714
Schneider Electric
Modular DIN35 adjustable 600mm
NSYMFSC60D
Schneider Electric
Schneider Electric transfer switch, TransferPacT Active automatic, 100A, 230V, 2P, LCD,frame 100A TA10D2L1003TPE
Schneider Electric
Push-button flush black with text (ZB4FA232)
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ABE7CPA412?
- ABE7CPA412 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is ABE7CPA412.
- What is the HS code for ABE7CPA412?
- The customs tariff (HS) code for ABE7CPA412 is 8536.90.
- Who manufactures ABE7CPA412?
- ABE7CPA412 is a Schneider Electric product in the Control & Automation range.
- Is a datasheet available for ABE7CPA412?
- Yes — the ABE7CPA412 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ABE7CPA412?
- The minimum order quantity is 1.
- Is ABE7CPA412 available?
- Yes — ABE7CPA412 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
