Front plate INS630B-1600 4P-PRISMASET P
Pricing
Request a quote
We reply within 24 hours
Product Description

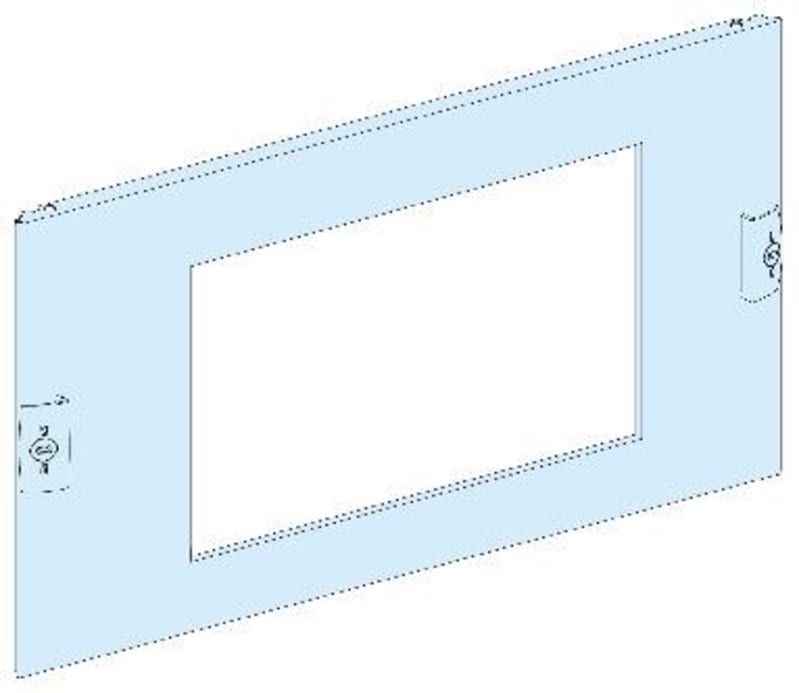

Schneider Electric LVS03714 Front plate for INS630B-1600 4P-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03714
- EAN / GTIN
- 3606481872593
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Number of poles
- 4P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed INS630b...1600 - control: direct front rotary handle - vertical installation; ComPact: fixed INV630b...1600 - control: direct front rotary handle - vertical installation
- Poles description
- 1 x 4P: mounting plate support: INS630b...1600 vertical installation; 1 x 4P: mounting plate support: INV630b...1600 vertical installation
- Operating position
- Vertical
- Enclosure/cubicle description
- Cubicle - width 650 mm depth 400 mm
- Connection position
- Front connection; Rear connection
- Number of vertical modules [50 mm]
- 6
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 300 mm
- Product weight
- 0.92 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact INS630b...1600 fixed direct front rotary handle vertical 4P 1 front connection on adaptor 14; 650 mm 400 mm PrismaSeT P cubicle ComPact INV630b...1600 fixed direct front rotary handle vertical 4P 1 front connection on adaptor 14
- Country of origin
- RO
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 650 mm
- Number of height units
- 6
- Surface finishing
- Powder coating
- Suitable for enclosure building height
- 2000 mm
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481872593
- SAP 1200546736
- Code 82880780
Product Documentation
