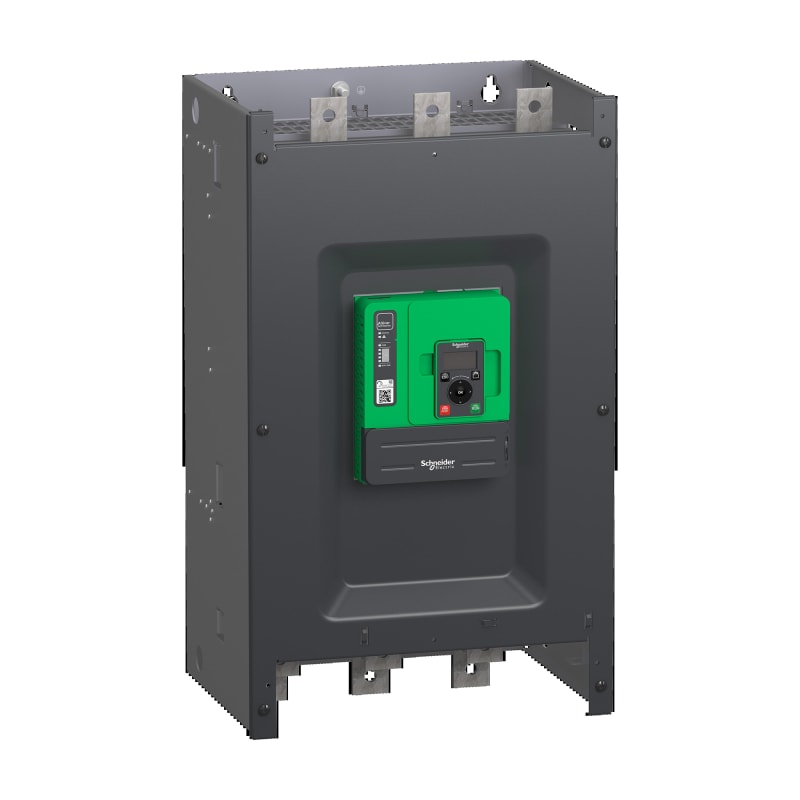

Schneider Electric Soft starter, Altistart 480, 660A, 208 to 690V AC, control supply 110 to 230V AC ATS480C66Y

Schneider Electric ATS480C66Y Schneider Soft starter ATS480 660A 208-690 Type: ATS480C66Y.

Manufacturer part number (MPN)

ATS480C66Y EAN / GTIN: 3606481089168 Sales unit: pcs Range of product: Altivar Soft Starter ATS480 Product or component type: Soft starter Product destination: Asynchronous motors Product specific application: Process and infrastructures Device short name: ATS480 Network number of phases: 3 phases Utilisation category: AC-3A; AC-53A Ue power supply voltage: 208...690 V - 15...10 % power supply frequency: 50...60 Hz - 20...20 % [Ie] rated operational current: Normal duty: 660.0 A (at <40 °C) rated current in heavy duty: 590.0 A at 40 °C for heavy duty Torque control: True IP degree of protection: IP00 Motor power kW: 160.0 kW at 230 V in the motor supply line heavy duty; 355.0 kW at 400 V in the motor supply line normal duty; 315.0 kW at 400 V in the motor supply line heavy duty; 400.0 kW at 440 V in the motor supply line normal duty; 355.0 kW at 440 V in the motor supply line heavy duty; 400.0 kW at 500 V in the motor supply line heavy duty; 400.0 kW at 525 V in the motor supply line heavy duty; 630.0 kW at 660 V in the motor supply line normal duty; 560.0 kW at 660 V in the motor supply line heavy duty; 630.0 kW at 690 V in the motor supply line normal duty; 560.0 kW at 690 V in the motor supply line heavy duty; 315.0 kW at 230 V to the motor delta terminals normal duty; 500.0 kW at 400 V to the motor delta terminals normal duty; 400.0 kW at 400 V to the motor delta terminals heavy duty Motor power hp: 200.0 hp at 208 V normal duty; 250.0 hp at 230 V normal duty; 200.0 hp at 230 V heavy duty; 500.0 hp at 460 V normal duty; 400.0 hp at 460 V heavy duty; 600.0 hp at 575 V normal duty; 500.0 hp at 575 V heavy duty Option card: Communication module for Profibus DP V1; Communication module for Modbus TCP/EtherNet/IP; Communication module for CANopen daisy chain; Communication module for CANopen Sub-D; Communication module for CANopen open style; Communication module for PROFINET Device connection: In the motor supply line; To the motor delta terminals [Us] control circuit voltage: 110...230 V AC 50/60 Hz - 15...10 % Apparent power: 0.125 kVA Integrated motor overload protection: True motor thermal protection class: Class 10E Protection type: Phase failure: line; Integrated thermal protection: motor; Thermal protection: starter; Current overload: motor; Underload: motor; Excessive starting time, locked rotor: motor; Motor phase loss: motor; Line supply phase loss: line; Line supply phase loss: motor; Thermal protection: motor current limiting %In (5 x Ie maximum): 150…700 % Rated current pwr loss specification: 660.0 A Power loss static current independent: 25.0 W Power loss per device current dependent: 1938.0 W Standards: IEC 60947-4-2; UL 60947-4-2; IEC 60664-1 Product certifications: CE; cULus; CCC; UKCA; RCM; EAC; DNV; ABS; BV; CCS Marking: CE; CCC; UKCA; EAC; RCM; CULus [Uc] control circuit voltage: 24 V DC Discrete input number: 4 Discrete input type: (STOP) logic inputs, 3500 Ohm; (RUN) logic inputs, 3500 Ohm; (DI3) programmable as logic input, 3500 Ohm; (DI4) programmable as logic input, 3500 Ohm Input compatibility: STOP: discrete input level 1 PLC conforming to IEC 61131-2; RUN: discrete input level 1 PLC conforming to IEC 61131-2; DI3: discrete input level 1 PLC conforming to IEC 61131-2; DI4: discrete input level 1 PLC conforming to IEC 61131-2 Discrete input logic: Programmable digital input at State 0: < 5 V Relay output number: 3 Relay output type: Relay outputs R1A 1 NO; Relay outputs R1B 1 NO; Relay outputs RIC NO/NC programmable minimum switching current: 100 mA at 12 V DC for relay outputs Maximum switching current: Relay outputs 2 A at 250 V AC; Relay outputs 2 A at 30 V DC; Relay outputs Discrete output number: 2 Discrete output type: (DQ1) programmable digital output <= 30 V; (DQ2) programmable digital output <= 30 V Output compatibility: Open collector level 1 PLC conforming to IEC 65A-68 Analogue input number: 1 Analogue input type: AI1/PTC PTC/Pt 100 temperature probe; PTC2 PTC/Pt 100 temperature probe; PTC3 PTC/Pt 100 temperature probe Analogue output number: 1 Analogue output type: Current output AQ1: 0...20 mA or 0...10 V, impedance <500 Ohm Communication port protocol: Modbus serial Connector type: 1 RJ45 Communication data link: Serial Physical interface: 2-wire RS 485 Transmission rate: 1200...256000 bit/s Transmission frame: RTU Data format: 8 bits, configurable odd, even or no parity Type of polarization: No impedance for Modbus serial Number of addresses: 0…227 for Modbus serial Method of access: Slave Modbus serial Function available: External bypass control; Pre-heating; Smoke extraction; Multi-motor cascade; Second motor set; User management; Ports and services hardening; Security event logging; Cybersecure firmware update; Single direction Display screen available: True Operating position: Vertical +/- 10 degree Height: 670.0 mm Width: 400.0 mm Depth: 314.0 mm Product weight: 51.4 kg Electromagnetic compatibility: Conducted and radiated emissions level A conforming to IEC 60947-4-2; Conducted and radiated emissions with bypass level B conforming to IEC 60947-4-2; Damped oscillating waves level 3 conforming to IEC 61000-4-12; Electrostatic discharge level 3 conforming to IEC 61000-4-11; Immunity to electrical transients level 4 conforming to IEC 61000-4-4; Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3; Voltage/current impulse level 3 conforming to IEC 61000-4-5 Pollution degree: Level 3 [Uimp] rated impulse withstand voltage: 6 kV [Ui] rated insulation voltage: 690 V Environmental class (during operation): Class 3C3 according to IEC 60721-3-3; Class 3S2 according to IEC 60721-3-3 Relative humidity: 0…95 % without condensation or dripping water conforming to IEC 60068-2-3 Ambient air temperature for operation: 40…60 °C (with current derating of 2 % per °C); -15…40 °C (without derating) Ambient air temperature for storage: -25…70 °C Operating altitude: 1000...4000 m with current derating 1 % per 100 m Maximum deflection under vibratory load (during operation): 1.5 mm at 2...13 Hz Maximum deflection under vibratory load (during storage): 1.75 mm at 2...9 Hz Maximum deflection under vibratory load (during transport): 1.75 mm at 2...9 Hz Maximum acceleration under vibratory load (during storage): 15 m/s² at 200...500 Hz; 10 m/s² at 9...200 Hz Maximum acceleration under vibratory load (during transport): 15 m/s² at 200...500 Hz; 10 m/s² at 9...200 Hz Maximum acceleration under shock impact (during operation): 150 m/s² at 11 ms Maximum acceleration under shock load (during storage): 100 m/s² at 11 ms Maximum acceleration under shock load (during transport): 100 m/s² at 11 ms Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 55.0 cm Package 1 Width: 53.0 cm Package 1 Length: 81.0 cm Package 1 Weight: 63.0 kg Country of origin: CN Warranty (in months): 18 Function: Single direction With display: No Degree of protection (IP): IP00 Rated operation current Ie at 40 °C Tu: 660 A Rated power three-phase motor, inline, at 230 V: 145 kW Rated power three-phase motor, inline, at 400 V: 355 kW Rated power three-phase motor, inside delta, at 230 V: 315 kW Rated power three-phase motor, inside delta, at 400 V: 500 kW Rated surrounding temperature without derating: 40 °C Voltage type for actuating: AC Internal bypass: No

HS Code

8537.10

• EAN 3606481089168
• SAP 1200617542
• Code 83014375
