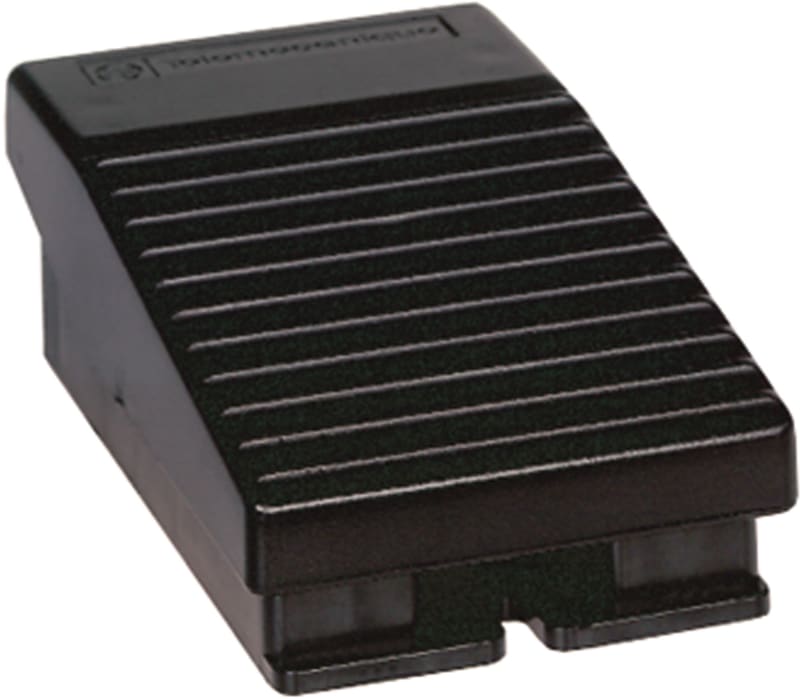

Schneider Electric Foot switch, Harmony XPE, single IP43, without cover, plastic, black, 2 NC + 2 NO XPEA111

Schneider Electric XPEA111 Foot Switch Black Plastic.

Manufacturer part number (MPN)

XPEA111

EAN / GTIN

3389110600339

Sales unit

pcs

Package quantity

8 pcs

Range of product

Harmony XPE

Product or component type

Foot switch

Material

Plastic

Foot switch type

Single foot switch

Device short name

XPEA

Trigger mechanism

Without trigger mechanism

Contact operation

1 step

Contacts type and composition

2 NC + NO

Colour

Black

Positive opening

With conforming to IEC 60947-5-1 appendix K

Connections - terminals

Screw clamp terminal, <= 1 x 2.5 mm² with or without cable end; Screw clamp terminal, <= 2 x 1.5 mm² with or without cable end

cable entry

1 plain hole for M20 cable gland; 1 plain hole for M16 cable gland

Mechanical durability

2000000 cycles

[Ie] rated operational current

3 A, 240 V, AC-15, A300; 0.27 A, 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A

[Ui] rated insulation voltage

500 V (pollution degree 3) conforming to IEC 60947-1; 500 V (pollution degree 3) conforming to NF C 20-040 group C; 500 V (pollution degree 3) conforming to VDE 0110 group C; 300 V conforming to UL 508; 300 V conforming to CSA C22.2 No 14

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Maximum resistance across terminals

25 MOhm conforming to IEC 60255-7 category 3; 25 MOhm conforming to NF C 93-050 method A

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1; 10 A cartridge fuse type gG conforming to VDE 0660-200

Rated operational power in W

10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Product weight

0.295 kg

Standards

IEC 60947-5-1

Protective treatment

TH

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

25 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140; Class II conforming to NF C 20-030

IP degree of protection

IP43 conforming to IEC 60529

Number of Units in Package 1

1

Number of Units in Package 2

4

Country of origin

MA

Warranty (in months)

18

Width

94 mm

Height

54 mm

Depth

161 mm

Number of switch positions

1

Rated operation current Ie at AC-15, 230 V

3 A

Suitable for safety functions

Yes

Type of command

On or off

With protection hood

No

With interlocking

No

Degree of protection (IP)

IP43

With protective insulation

No

Switching function latching

No

Number of contacts as normally closed contact

2

Number of contacts as normally open contact

2

HS Code

8536.50
