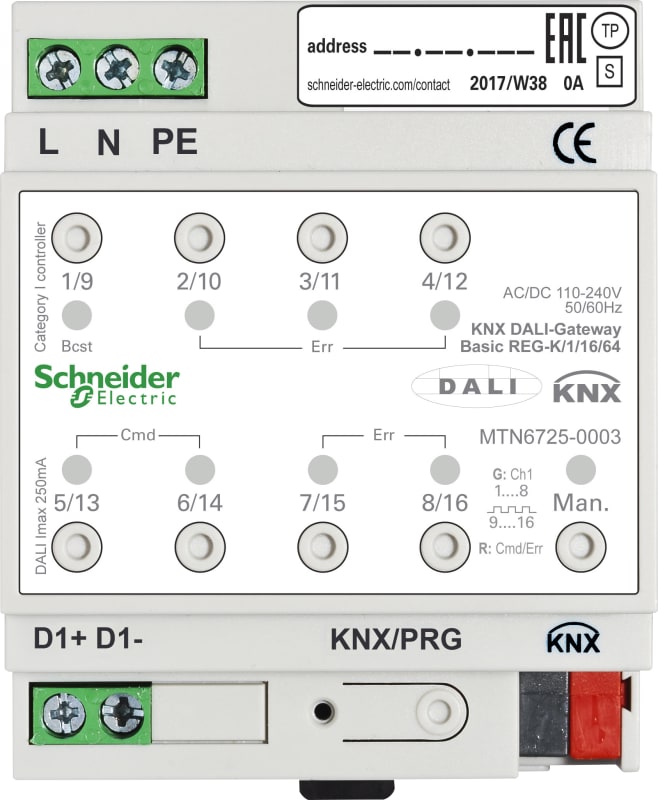

Schneider Electric Gateway, SpaceLogic KNX, DALI, basic 1CH/16/64, white, Supply KNX 5 mA MTN6725-0003
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric MTN6725-0003 KNX DALI-Gateway Basic REG-K/1/16/64.
Technical Specifications
- Manufacturer part number (MPN)
- MTN6725-0003
- EAN / GTIN
- 3606489484040
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range of product
- SpaceLogic KNX
- Product or component type
- DALI gateway
- Number of output channels
- 1
- Bus type
- KNX
- Function available
- Updatable software
- Colour tint
- White
- Power supply input current
- 5 mA
- Mounting support
- DIN rail
- total number of 18 mm modules
- 4
- [Ue] rated operational voltage
- 100...240 V
- Network frequency
- 50/60 Hz
- Communication port protocol
- DALI
- Local signalling
- LED
- Main colour tint
- White
- Market segment
- Buildings; Commercial; Critical buildings; Lodging/hotel; School; Office; Small commercial
- IP degree of protection
- IP20
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 28
- Warranty (in months)
- 18
- Mounting method
- DRA (DIN-rail adaptor)
- Model
- Light system interface/DALI
- Operating voltage
- 230 V
- Bus system KNX
- Yes
- Bus system radio frequency
- No
- Bus system Powernet
- No
- Width in number of modular spacings
- 4
- Bus system LON
- No
- Demounting protection
- No
- Radio interface
- No
- IR interface
- No
- Provider dependent
- No
- Updateable
- Yes
- Visualization
- No
- Web-Server
- No
- Degree of protection (IP)
- IP20
- With LED indication
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Radio frequency bidirectional
- No
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3606489484040
- SAP 1200074307
- Code 81922221
Product Documentation
More from Schneider Electric
Schneider Electric
Floor Box M - 4 module - Plastic
INS52120
Schneider Electric
Schneider Electric Wall mounted enclosure, PrismaSeT G, W 600mm, H 1230mm (24M), IP30 LVS08108
Schneider Electric
Schneider Electric Contactor, TeSys K, 3P, AC-3/AC-3E,440V 9A, aux. 1NO, 24V AC coil, screw clamps LC1K0910B7
Schneider Electric
Schneider Electric TeSys D - suppressor module - varistor - 110...250 V AC LAD4VU
Schneider Electric

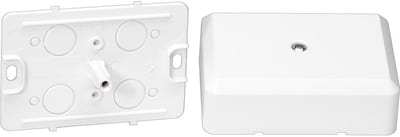

TED-001 .box without .piece
IMT34115
Schneider Electric

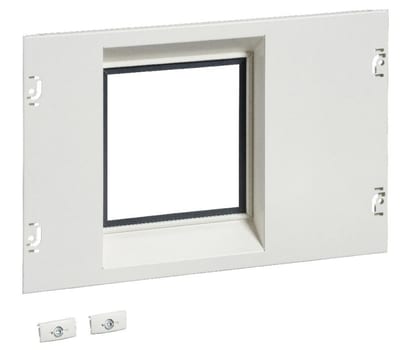

Front plate NSX630 4P Horizontal PrismaSe
LVS03644
Schneider Electric

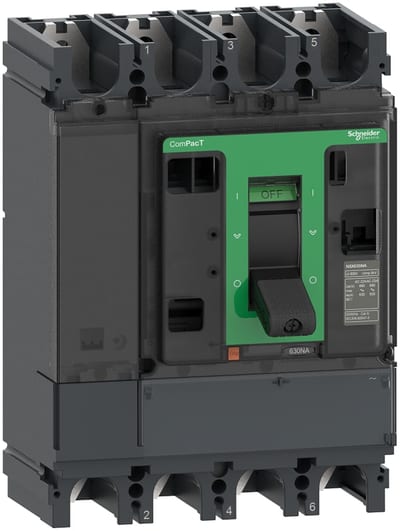

Schneider Electric Switch disconnector, ComPacT NSX400NA, 4 poles, fixed, thermal current Ith 400A C404400S
Schneider Electric

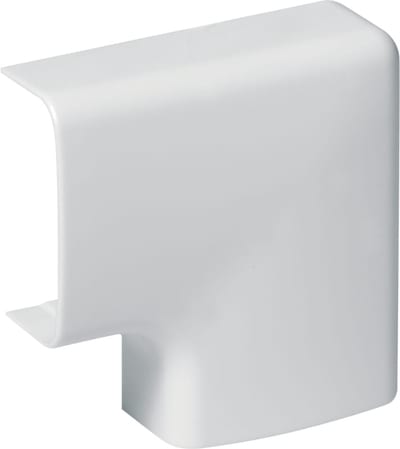

OL MINI 1835 L-Piece White
