Schneider Electric TeSys D - suppressor module - varistor - 110...250 V AC LAD4VU
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LAD4VU Varistor 110-250VAC.
Technical Specifications
- Manufacturer part number (MPN)
- LAD4VU
- EAN / GTIN
- 3389110385717
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 110-250 V AC
- Range
- TeSys
- Device short name
- LAD4
- Product or component type
- Suppressor module
- Product compatibility
- 3P LC1D09...D38; 4P LC1DT20...DT40; 4P LC1D098...D258; CAD32, CAD50
- Mounting location
- Front
- mounting mode
- By clips
- Suppressor technology
- Varistor (peak limiting)
- [Uc] control circuit voltage
- 110...250 V AC 50/60 Hz
- Maximum peak voltage
- 2 Uc
- Product weight
- 0.012 kg
- Standards
- IEC 60947-5-1; EN 60947-5-1; CSA C22.2 No 60947-5-1; UL 60947-5-1; GB/T 14048.5
- Product certifications
- UL; CSA
- IP degree of protection
- IP2X conforming to IEC 60529
- Ambient air temperature for operation
- -25…55 °C
- Ambient air temperature for storage
- -40…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 70
- Number of Units in Package 3
- 2240
- Country of origin
- FR
- Warranty (in months)
- 18
- Function
- Varistor (voltage-sensitive resistor)
- Rated control supply voltage AC 50 Hz
- 110–250 V
- Rated control supply voltage AC 60 Hz
- 110–250 V
- Voltage type (operating voltage)
- AC
- With LED indication
- No
- Operating voltage AC 50 Hz
- 110–250 V
- Operating voltage AC 60 Hz
- 110–250 V
- Voltage type for actuating
- AC
Standards & Compliance
- HS Code
- 8533.40
Cross References
- EAN 3389110385717
- SAP 1000002912
- Code 822084
Product Documentation
More from Schneider Electric
Schneider Electric
TED-001 .box without .piece
IMT34115
Schneider Electric
Front plate NSX630 4P Horizontal PrismaSe
LVS03644
Schneider Electric
Schneider Electric Switch disconnector, ComPacT NSX400NA, 4 poles, fixed, thermal current Ith 400A C404400S
Schneider Electric
OL MINI 1835 L-Piece White
ISM14403
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NS630BN, 50KA at 415VAC, 3P, fixed, manually operated, MicroLogic 2.0 control unit, 630A C063N320FM
Schneider Electric
Mounting plate NSX100-250 Horizontal 3P Prisma P
LVS03411
Schneider Electric
MINI Opale Enclosure 1-ROW 6M
13396
Schneider Electric

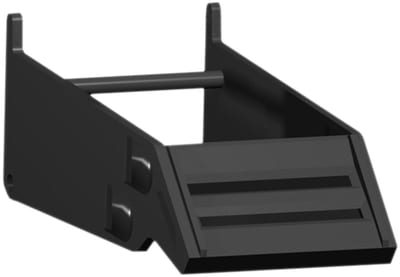

Schneider Electric RXZR335 plastic maintaining clamp - for miniature relay socket RXZ
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LAD4VU?
- LAD4VU can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LAD4VU.
- What is the HS code for LAD4VU?
- The customs tariff (HS) code for LAD4VU is 8533.40.
- Who manufactures LAD4VU?
- LAD4VU is a Schneider Electric product in the Control & Automation range.
- Is a datasheet available for LAD4VU?
- Yes — the LAD4VU datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LAD4VU?
- The minimum order quantity is 1.
- Is LAD4VU available?
- Yes — LAD4VU is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
