Schneider Electric

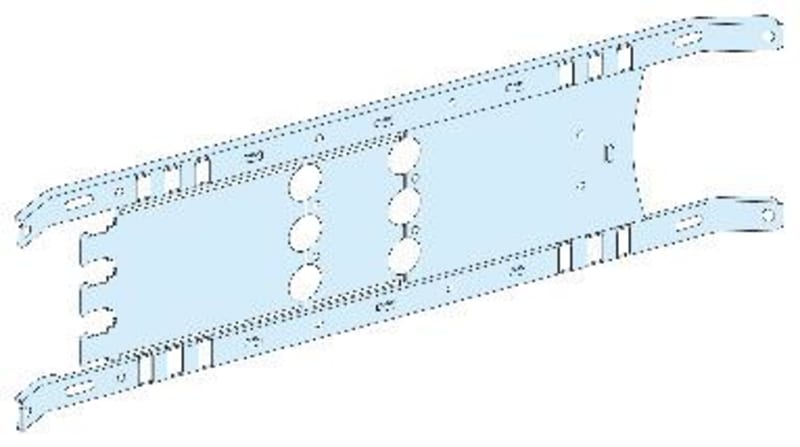

Mounting plate NSX100-250 Horizontal 3P Prisma P
Part numberLVS03411EAN / GTIN3606481874252HS code7326.90
Enclosures
Mounting Plates
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03411 Mounting plate for NSX100-250-horizontal mounting-3P-PrismaSeT P-for 650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03411
- EAN / GTIN
- 3606481874252
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Number of poles
- 3P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- installation description
- Cubicle - width 650 mm depth 400 mm
- Installed device
- EasyPact: fixed CVS100...160 without earth leakage protection - control: toggle - horizontal installation; EasyPact: fixed CVS250 without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX100...160 without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX250 without earth leakage protection - control: toggle - horizontal installation; EasyPact: fixed CVS100...160 with earth leakage protection - control: toggle - horizontal installation; EasyPact: fixed CVS250 with earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX100...160 with earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX250 with earth leakage protection - control: toggle - horizontal installation
- Poles description
- 1 x 3P: fixed CVS100...160 horizontal installation; 1 x 3P: fixed CVS250 horizontal installation; 1 x 3P: fixed NSX100...160 horizontal installation; 1 x 3P: fixed NSX250 horizontal installation
- Number of vertical modules [50 mm]
- 3 module(s): CVS100...160 without earth leakage protection , direct in 650 mm Widecubicle; 3 module(s): CVS250 without earth leakage protection , direct in 650 mm Widecubicle; 3 module(s): NSX100...160 without earth leakage protection , direct in 650 mm Widecubicle; 3 module(s): NSX250 without earth leakage protection , direct in 650 mm Widecubicle; 3 module(s): CVS100...160 with earth leakage protection , direct in 650 mm Widecubicle; 3 module(s): CVS250 with earth leakage protection , direct in 650 mm Widecubicle; 3 module(s): NSX100...160 with earth leakage protection , direct in 650 mm Widecubicle; 3 module(s): NSX250 with earth leakage protection , direct in 650 mm Widecubicle
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 650 mm
- Height
- 141 mm
- Product weight
- 1.16 kg
- Functional unit
- 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 without fixed toggle horizontal 3P 1 direct 3 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 without fixed toggle horizontal 3P 1 direct 3 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed toggle horizontal 3P 1 direct 3 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed toggle horizontal 3P 1 direct 3 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 with fixed toggle horizontal 3P 1 direct 3 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 with fixed toggle horizontal 3P 1 direct 3 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed toggle horizontal 3P 1 direct 3 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed toggle horizontal 3P 1 direct 3 12.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Number of Units in Package 3
- 128
- Country of origin
- IT
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481874252
- SAP 1200546667
- Code 82880636
Product Documentation
Document preview: Schneider Electric LVS03411 — OEM Product Page
