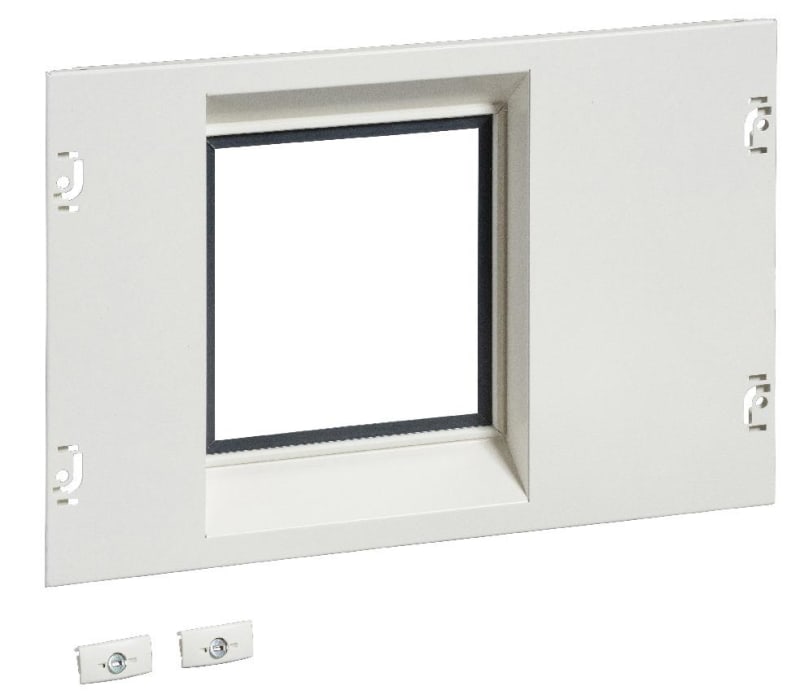

Front plate NSX630 4P Horizontal PrismaSe
Part numberLVS03644EAN / GTIN3606481866127HS code8538.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03644 Front plate for NSX400/630 4P-Horizontal-4P-fast/plug-in/all operation/motor-PrismaSeT P-650mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03644
- EAN / GTIN
- 3606481866127
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Number of poles
- 4P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed NSX400 without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX630 without earth leakage protection - control: toggle - horizontal installation; EasyPact: fixed CVS400 without earth leakage protection - control: direct front rotary handle - horizontal installation; EasyPact: fixed CVS630 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: plug-in NSX400 without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX400 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX400 without earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX400 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: plug-in NSX400 without earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX630 without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX630 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX630 without earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX630 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: plug-in NSX630 without earth leakage protection - control: motor mechanism - horizontal installation; EasyPact: fixed CVS400 with earth leakage protection - control: direct front rotary handle - horizontal installation; EasyPact: fixed CVS630 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX400 with earth leakage protection - control: toggle - horizontal installation; ComPact: plug-in NSX400 with earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX400 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX400 with earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX400 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: plug-in NSX400 with earth leakage protection - control: motor mechanism - horizontal installation; ComPact: fixed NSX630 with earth leakage protection - control: toggle - horizontal installation; ComPact: plug-in NSX630 with earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX630 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX630 with earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX630 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: plug-in NSX630 with earth leakage protection - control: motor mechanism - horizontal installation
- Poles description
- 1 x 4P: mounting plate support: CVS400 horizontal installation; 1 x 4P: mounting plate support: CVS630 horizontal installation; 1 x 4P: mounting plate support: NSX400 horizontal installation; 1 x 4P: mounting plate support: NSX630 horizontal installation
- Operating position
- Horizontal
- Enclosure/cubicle description
- Cubicle - width 650 mm depth 400 mm
- Connection position
- Direct connection
- Number of vertical modules [50 mm]
- 5
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Height
- 250 mm
- Product weight
- 0.94 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 without fixed direct front rotary handle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 without fixed direct front rotary handle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed toggle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in toggle horizontal 4P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed direct front rotary handle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed motor mechanism horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in direct front rotary handle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in motor mechanism horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed toggle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in toggle horizontal 4P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed direct front rotary handle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed motor mechanism horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in direct front rotary handle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in motor mechanism horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 with fixed direct front rotary handle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 with fixed direct front rotary handle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed toggle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in toggle horizontal 4P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed direct front rotary handle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed motor mechanism horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in direct front rotary handle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in motor mechanism horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed toggle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in toggle horizontal 4P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed direct front rotary handle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed motor mechanism horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in direct front rotary handle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in motor mechanism horizontal 4P 1 direct 5
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 9
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 500 mm
- Suitable for enclosure building width
- 650 mm
- Material
- Steel
- Number of height units
- 5
- Surface finishing
- Powder coating
- Suitable for enclosure building height
- 2000 mm
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481866127
- SAP 1200546716
- Code 82879829
Product Documentation
Document preview: Schneider Electric LVS03644 — OEM Product Page
More from Schneider Electric
Schneider Electric
Schneider Electric Switch disconnector, ComPacT NSX400NA, 4 poles, fixed, thermal current Ith 400A C404400S
Schneider Electric
OL MINI 1835 L-Piece White
ISM14403
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NS630BN, 50KA at 415VAC, 3P, fixed, manually operated, MicroLogic 2.0 control unit, 630A C063N320FM
Schneider Electric
Mounting plate NSX100-250 Horizontal 3P Prisma P
LVS03411
Schneider Electric
MINI Opale Enclosure 1-ROW 6M
13396
Schneider Electric
Schneider Electric RXZR335 plastic maintaining clamp - for miniature relay socket RXZ
Schneider Electric
Schneider Electric ZB5AD4 black selector switch head Ø22 2-Position spring return
Schneider Electric

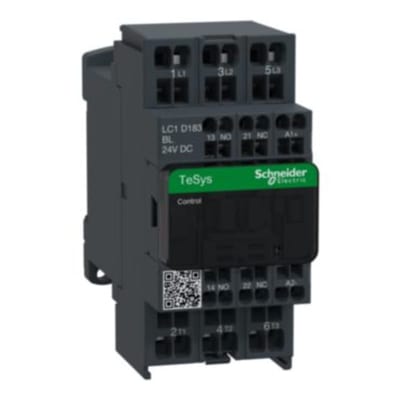

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3E, <=440V, 18A, 24V DC low consumption coil, spring terminals LC1D183BL
