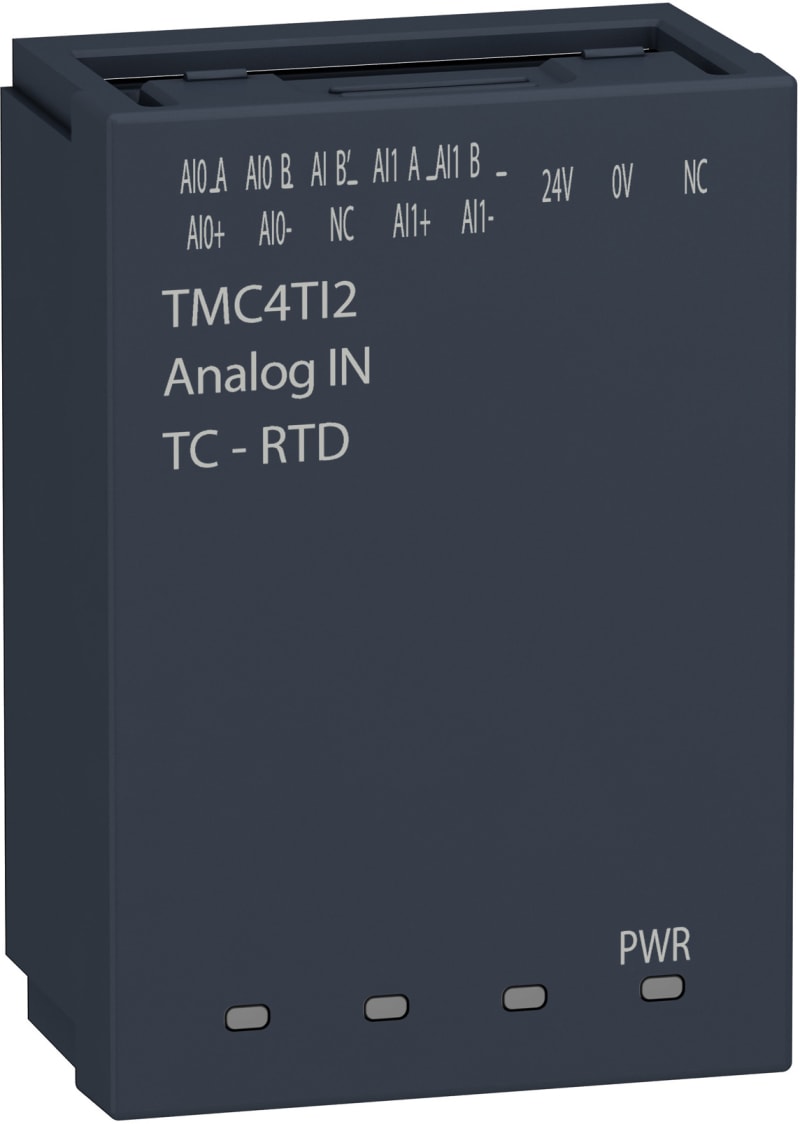

Schneider Electric Analogue input cartridge, Modicon M241, 2 temperature inputs TMC4TI2

Schneider Electric TMC4TI2 Accessories Modicon PLS - M241 cassette - 2 temperaturinnganger.

Manufacturer part number (MPN)

TMC4TI2 EAN / GTIN: 3606480649202 Sales unit: pcs Package quantity: 50 pcs Range of product: Modicon M241 Product or component type: Analogue input cartridge Product compatibility: Modicon M241C Analogue input number: 2 Analogue input type: thermocouple - 200...1000 °C with thermocouple J; thermocouple - 200...1300 °C with thermocouple K; thermocouple 0...1760 °C with thermocouple R; thermocouple 0...1760 °C with thermocouple S; thermocouple 0...1820 °C with thermocouple B; thermocouple - 200...400 °C with thermocouple T; thermocouple - 200...1300 °C with thermocouple N; thermocouple - 200...800 °C with thermocouple E; Ni 100/Ni 1000 temperature probe - 60...180 °C; Pt 100 temperature probe - 200...850 °C; Pt 1000 temperature probe - 200...600 °C Analogue input resolution: 14 bits LSB value: 0.1 °C Sampling duration: 100 ms Absolute accuracy error: +/- 0.5 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe; +/- 0.2 % of full scale at 25 °C for thermocouple K - 200...1300 °C; +/- 0.2 % of full scale at 25 °C for thermocouple J - 200...1000 °C; +/- 0.2 % of full scale at 25 °C for thermocouple E - 200...800 °C; +/- 0.2 % of full scale at 25 °C for thermocouple T - 200...400 °C; +/- 0.2 % of full scale at 25 °C for thermocouple N - 200...1300 °C; +/- 0.2 % of full scale at 25 °C for thermocouple B 250...400 °C; +/- 0.1 % of full scale at 25 °C for thermocouple B 400...1280 °C; +/- 0.2 % of full scale at 25 °C for thermocouple R, S 0...1760°C Temperature drift: +/- 0.008 %FS/°C Repeat accuracy: +/- 0.1 %FS Non-linearity: +/- 0.05 %FS Cross talk: 80 dB Type of cable: Twisted shielded pairs cable Electrical connection: 1 x 1.5 mm² 1 spring terminal block with pitch 3.5 mm adjustment for outputs and supply Maximum cable distance between devices: Twisted shielded pairs cable: <30 m for input Insulation: Between input and internal logic at 500 V DC; Non-insulated between inputs Supply voltage limits: 20.4…28.8 V Local signalling: 1 LED (green) for PWR Height: 50 mm Depth: 21 mm Width: 34 mm Product weight: 0.055 kg Permissible continuous overload: 6 V Input impedance: >= 1 MOhm Immunity to microbreaks: 10 ms Number of Units in Package 1: 1 Number of Units in Package 2: 27 Country of origin: ID Warranty (in months): 18 Power consumption: 1.1 W Number of analogue inputs: 2 Analogue inputs configurable: No Analogue outputs configurable: No Input, current: Yes Input, voltage: Yes Input, resistor: Yes Input, resistance thermometer: No Input, thermocouple: Yes Input signal, configurable: No Resolution of the analogue inputs: 14 Bit Output, current: No Output, voltage: No Output signal configurable: No Resolution of the analogue outputs: 12 Bit Type of electric connection: Screw connection Suitable for safety functions: No SIL according to IEC 61508: None Performance level according to EN ISO 13849-1: None Appendant operation agent (Ex ia): No Explosion safety category for gas: None Explosion safety category for dust: None

HS Code

8538.90

• EAN 3606480649202
• SAP 1000601539
• Code 8162858
