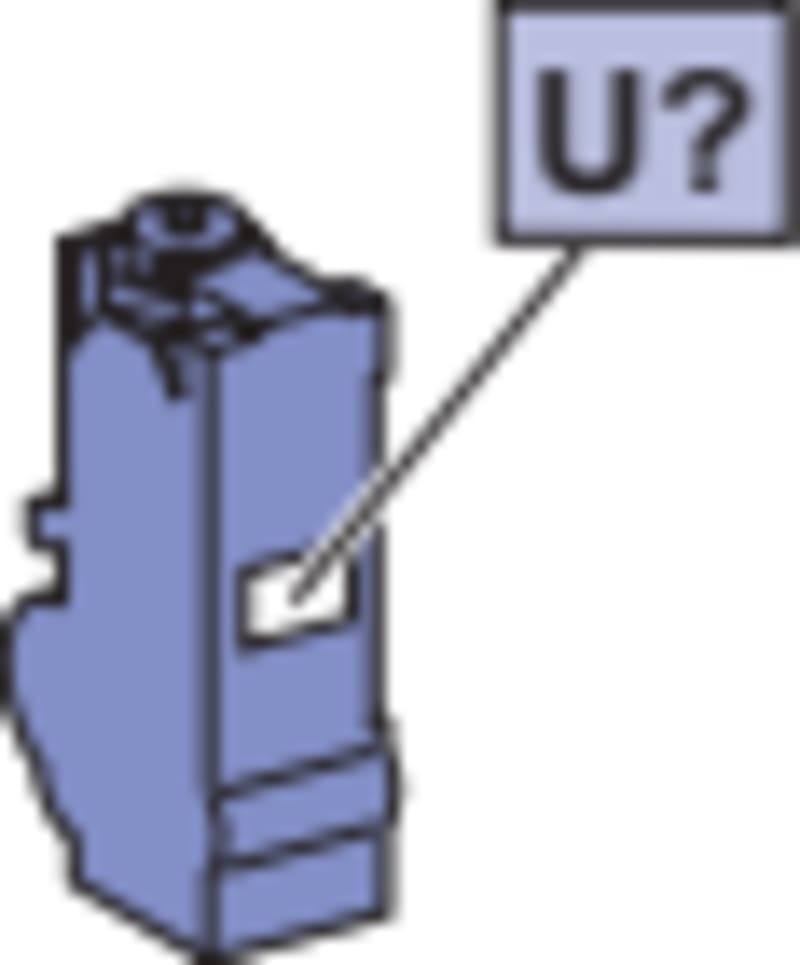

Schneider Electric communicating motor mechanism module (MCH), fixed ComPact NS630B to NS1600, 200/250 VDC
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 33700 Motor operator Comm.. 200/250 V.
Technical Specifications
- Manufacturer part number (MPN)
- 33700
- EAN / GTIN
- 3303430337003
- Sales unit
- pcs
- Device short name
- MCH
- Product or component type
- Motor mechanism
- Device application
- Automatic spring charging
- Range compatibility
- ComPacT NS630b...1600 circuit breaker
- Control type
- Communicating
- [Uc] control circuit voltage
- 200...250 V DC
- circuit breaker mounting mode
- Fixed
- circuit breaker frame rated current
- 1000 A; 800 A; 1250 A; 1600 A; 630 A
- Control signal type
- Impulse; Maintained
- circuit breaker response time
- 60 ms +/- 10 ms open; 60 ms +/- 10 ms closed
- Maximum operating frequency
- <= 3 cycles per minute
- Maximum power consumption in VA
- 180 VA
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.0 cm
- Package 1 Width
- 12.5 cm
- Package 1 Length
- 18.0 cm
- Package 1 Weight
- 1.174 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Rated control supply voltage DC
- 200–250 V
- Type of switch drive
- Motor drive
- Voltage type for actuating
- DC
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3303430337003
- SAP 1200722430
- Code 83837231
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Straight length, Canalis KBB, 40 A, 2 circuits L+N+PE, remote control, 5 tap-off units, 3 m, white KBB40ED22305TW
Schneider Electric

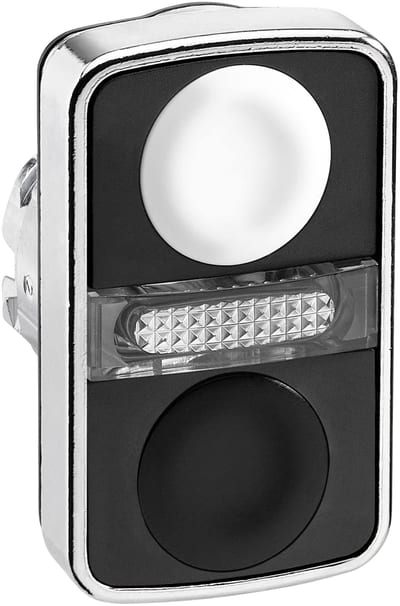

DOUBLE PUSH BUTTON for LIGHT Black KN UMRK (ZB4BW7A1720)
Schneider Electric

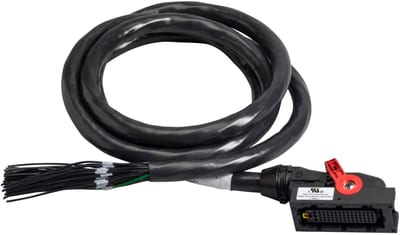

Connector 3M Cable BASE H
ZARC12
Schneider Electric

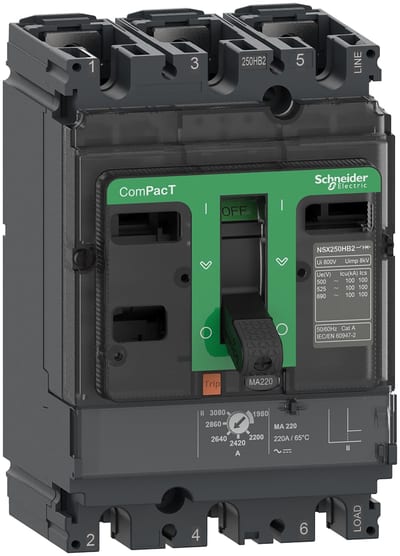

Schneider Electric Circuit breaker, ComPacT NSX250HB1, 75KA/690VAC, 3 poles, MA trip unit 220A C25V3MA220
Schneider Electric

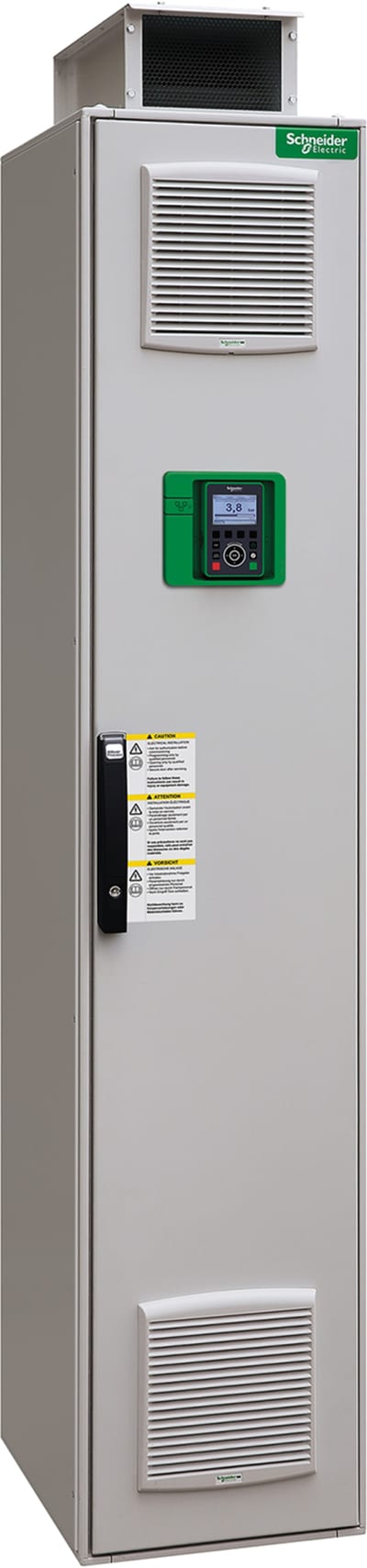

Schneider Electric floor standing drive, ATV930, 110kW, 400/440V, w/o braking unit, IP21 ATV930C11N4F
Schneider Electric

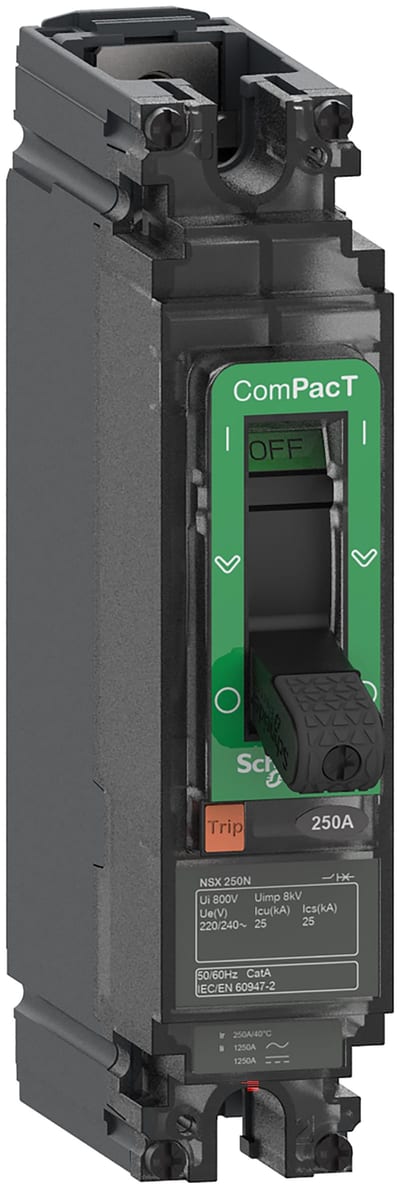

Schneider Electric Circuit breaker, ComPacT NSX100F AC/DC, 18KA/240VAC, 1 pole, TMD trip unit 80A C10F1TM080
Schneider Electric

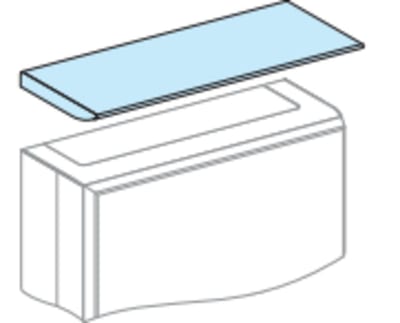

CEILING-IP31-FOR PrismaSeT G-B600MM+300mm
LVS08832
Schneider Electric

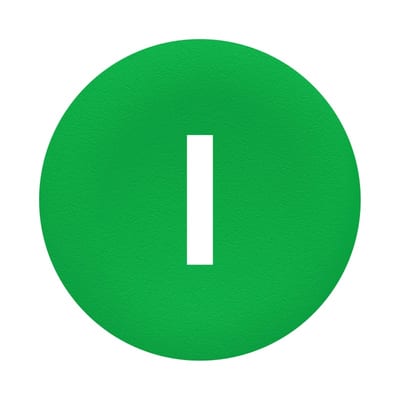

Push Button Cap flush green (ZBAF331)
