Schneider Electric Circuit breaker, ComPacT NSX100F AC/DC, 18KA/240VAC, 1 pole, TMD trip unit 80A C10F1TM080
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C10F1TM080 Circuit breaker ComPacT NSX100F AC/DC, 18 kA/ 240 VAC, with thermomagnetic protection TMD 80 A, 1p.
Technical Specifications
- Manufacturer part number (MPN)
- C10F1TM080
- EAN / GTIN
- 3606481995353
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 80 A
- Number of poles
- 1P
- Breaking capacity
- 18 kA
- Range
- ComPacT
- Product name
- ComPacT NSX
- Device short name
- NSX100F
- Product or component type
- Circuit breaker
- Device application
- Distribution
- Poles description
- 1P
- Protected poles description
- 1D
- [In] rated current
- 80 A at 40 °C
- [Ue] rated operational voltage
- 277 V AC 50/60 Hz; 250 V DC
- Network type
- AC; DC
- Network frequency
- 50/60 Hz
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2
- Utilisation category
- Category A
- Breaking capacity code
- F 18 kA 240 V AC
- Trip unit name
- TM-D
- Trip unit technology
- Thermal-magnetic
- Trip unit protection functions
- LI
- Control type
- Toggle
- Circuit breaker mounting mode
- Fixed
- [Ui] rated insulation voltage
- 750 V AC 50/60 Hz conforming to IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 8 kV conforming to IEC 60947-2
- [Ics] rated service breaking capacity
- 18 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 36 kA at 250 V DC conforming to IEC 60947-2
- Mechanical durability
- 20000 cycles
- Electrical durability
- 20000 cycles at 277 V In/2; 10000 cycles at 277 V In
- Power dissipation per pole
- 8.77 W
- Mounting support
- Backplate
- Mounting position
- Horizontal and vertical; Flat on the back
- Upside connection
- Front
- Downside connection
- Front
- Connection pitch
- 35 mm
- Protection type
- L : for overload protection (thermal); I : for short-circuit protection (magnetic)
- Trip unit rating
- 80 A at 40 °C
- Long-time pick-up adjustment type Ir (thermal protection)
- Fixed
- [Ir] long-time protection pick-up adjustment range
- 1 x In
- Long-time protection delay adjustment type tr
- Fixed
- Instantaneous protection pick-up adjustment type Ii
- Fixed
- [Ii] instantaneous protection pick-up adjustment range
- 640 A
- Earth-leakage protection
- Without
- Width (W)
- 35 mm
- Height (H)
- 161 mm
- Depth (D)
- 86 mm
- Product weight
- 0.7 kg
- Standards
- EN/IEC 60947-2
- Overvoltage category
- IV
- Electrical shock protection class
- Class II on front face
- Pollution degree
- 3 conforming to IEC 60664-1
- IP degree of protection
- IP40 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to IEC 62262
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...2000 m without derating; 2000 m...5000 m with derating
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481995353
- SAP 1200533325
- Code 82687612
Product Documentation
More from Schneider Electric
Schneider Electric
CEILING-IP31-FOR PrismaSeT G-B600MM+300mm
LVS08832
Schneider Electric
Push Button Cap flush green (ZBAF331)
Schneider Electric
Schneider Electric Motor circuit breaker, TeSys GV4, 3P, 80A, Icu 50KA, thermal magnetic, Everlink terminals GV4PE80N
Schneider Electric
Spreder 4P G265-500 45MM-70MM
LA9G4612
Schneider Electric

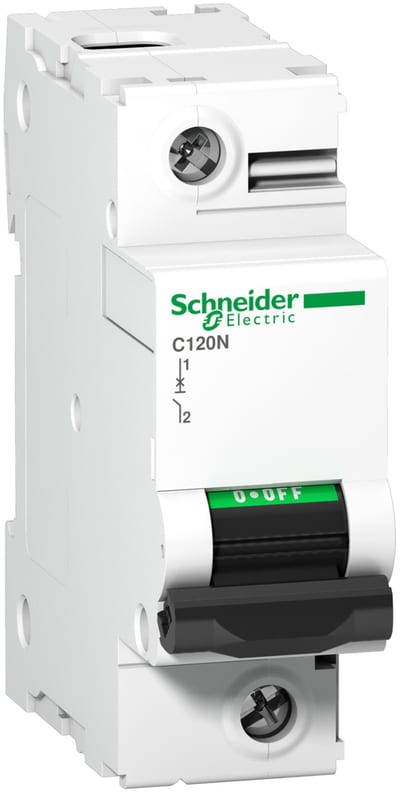

Schneider Electric Miniature circuit breaker (MCB), ACTI9 C120N, 1P, 80A, B curve, 10000A (IEC/EN 60898-1), 10KA (IEC/EN 60947-2) A9N18341
