Front plate INS2500 3P 4P-PRISMASET P
Pricing
Request a quote
We reply within 24 hours
Product Description

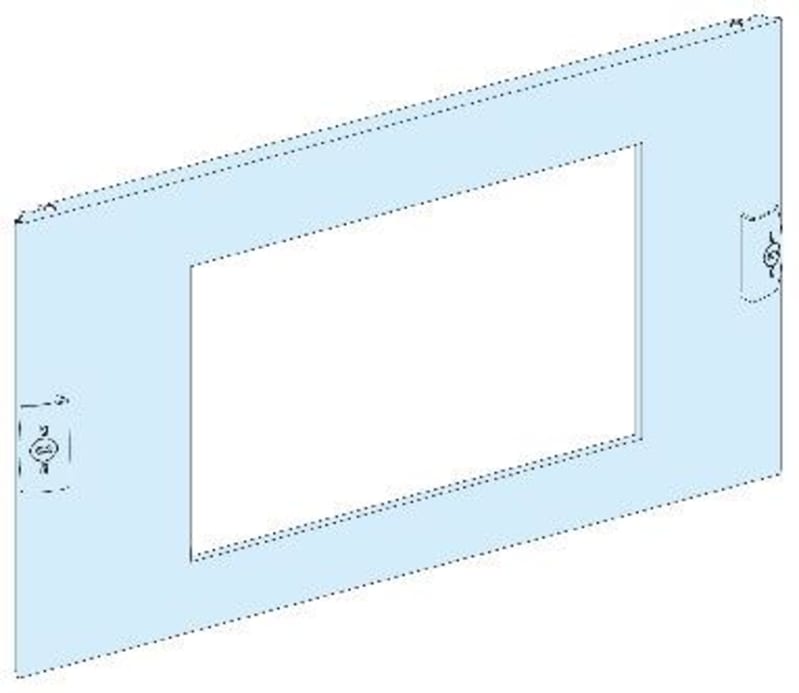

Schneider Electric LVS03715 Front plate for INS2500 3P 4P-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03715
- EAN / GTIN
- 3606481872609
- Sales unit
- pcs
- Number of poles
- 3P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed INS2000...2500 - control: direct front rotary handle - vertical installation; ComPact: fixed INV2000...2500 - control: direct front rotary handle - vertical installation
- Poles description
- 1 x 3P: mounting plate support: INS2000...2500 vertical installation; 1 x 4P: mounting plate support: INS2000...2500 vertical installation; 1 x 3P: mounting plate support: INV2000...2500 vertical installation; 1 x 4P: mounting plate support: INV2000...2500 vertical installation
- Operating position
- Vertical
- Enclosure/cubicle description
- Cubicle - width 650 mm depth 400 mm; Cubicle - width 650 mm depth 600 mm
- Connection position
- Front connection; Rear connection
- Number of vertical modules [50 mm]
- 10
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 500 mm
- Product weight
- 3.54 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact INS2000...2500 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 16; 650 mm 400 mm PrismaSeT P cubicle ComPact INS2000...2500 fixed direct front rotary handle vertical 4P 1 front connection on adaptor 16; 650 mm 600 mm PrismaSeT P cubicle ComPact INS2000...2500 fixed direct front rotary handle vertical 3P 1 rear connection on adaptor 16; 650 mm 600 mm PrismaSeT P cubicle ComPact INS2000...2500 fixed direct front rotary handle vertical 4P 1 rear connection on adaptor 16; 650 mm 400 mm PrismaSeT P cubicle ComPact INV2000...2500 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 16; 650 mm 400 mm PrismaSeT P cubicle ComPact INV2000...2500 fixed direct front rotary handle vertical 4P 1 front connection on adaptor 16; 650 mm 600 mm PrismaSeT P cubicle ComPact INV2000...2500 fixed direct front rotary handle vertical 3P 1 rear connection on adaptor 16; 650 mm 600 mm PrismaSeT P cubicle ComPact INV2000...2500 fixed direct front rotary handle vertical 4P 1 rear connection on adaptor 16
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 4
- Number of Units in Package 3
- 24
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 650 mm
- Number of height units
- 10
- Surface finishing
- Powder coating
- Suitable for enclosure building height
- 2000 mm
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481872609
- SAP 1200546737
- Code 82879423
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Thermal overload relay,TeSys Deca,62-80A,1NO+1NC,CLASS10A,lugs ring terminal LRD3806
Schneider Electric
Schneider Electric Interface plug-in relay, 5 A, 2 CO, LED, 230 V AC RXG23P7
Schneider Electric
WALL-Mount Cabinet WITH WINDOW. 6X4X2,5
NSYS3D6425T
Schneider Electric
Schneider Electric variable speed drive ATV212 - 22kW - 30hp - 480V - 3PH - EMC class C1 - IP55 ATV212WD22N4C
Schneider Electric
NG125L/B 50-1 Modular Power Switch
18747
Schneider Electric
Schneider Electric Push button flush mounted, Harmony XB5, plastic, white, 30mm, spring return, marked UP ARROW, 1NO XB5FA3341
Schneider Electric

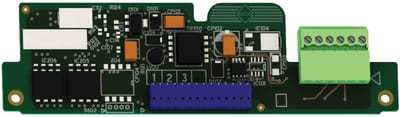

Schneider Electric encoder interface card with RS422 compatible differential outpts - 5 V DC VW3A3401
Schneider Electric

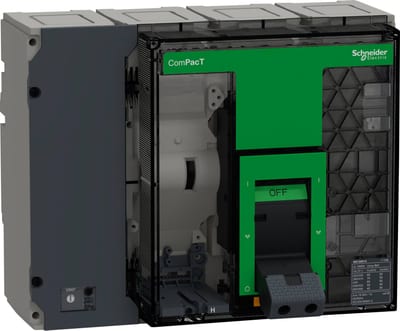

Schneider Electric Circuit breaker frame, ComPacT NS1000H, 70KA at 415VAC, 1000A, 4P, fixed, manually operated, without control unit C100H4FM
