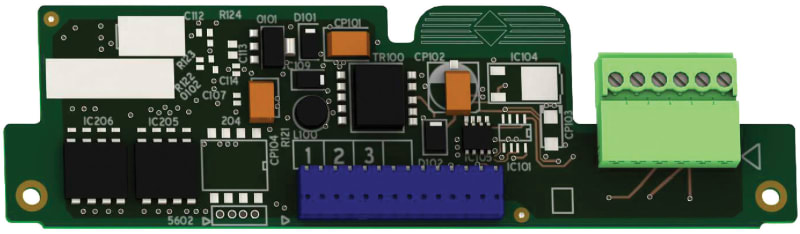

Schneider Electric encoder interface card with RS422 compatible differential outpts - 5 V DC VW3A3401

Schneider Electric encoder interface card with RS422 compatible differential outpts - 5 V DC VW3A3401 is listed under Drives & Controllers / Drive Accessories. Sales unit: pcs; Package quantity: 7 pcs; Range of product: Altivar; Product or component type: Encoder interface card; Discrete output type: Differential; Communication port protocol: RS422.

Manufacturer part number (MPN)

VW3A3401

EAN / GTIN

3389118067202

Sales unit

pcs

Package quantity

7 pcs

Range of product

Altivar

Product or component type

Encoder interface card

Range compatibility

Altivar Lift; Altivar 61; Altivar 71Q; Altivar 71; Altivar 61Q

Discrete output type

Differential

Communication port protocol

RS422

[Us] rated supply voltage

5 V DC (voltage limits: 5…5.5 V)

Number of pulses per revolution

10000 for ATV71H......383; 5000 for all ATV61 drives; 5000 for ATV71H...M3; 5000 for ATV71H...M3X; 5000 for ATV71H...N4

Maximum supply current

0.2 A

Protection type

Short-circuit protection; Overload protection

Maximum cable distance between devices

50 m

Maximum operating frequency

300 kHz

Input signal

A; B; Compliment of A; Compliment of B

Input impedance

440 Ohm

Electrical connection

Terminal, connection capacity: 0.2 mm² (24 AWG) <25 m cable length, encoder, 100 mA at 4.5 V; Terminal, connection capacity: 0.5 mm² (20 AWG) <25 m cable length, encoder, 200 mA at 4.5 V; Terminal, connection capacity: 0.5 mm² (20 AWG) <50 m cable length, encoder, 100 mA at 4.5 V; Terminal, connection capacity: 0.75 mm² (18 AWG) <50 m cable length, encoder, 200 mA at 4.5 V

Product weight

0.2 kg

Number of Units in Package 1

1

Number of Units in Package 2

7

Country of origin

ID

Warranty (in months)

18

Type of accessory/spare part

Encoder input module

Accessory

Yes

Spare part

No

HS Code

9030.33
