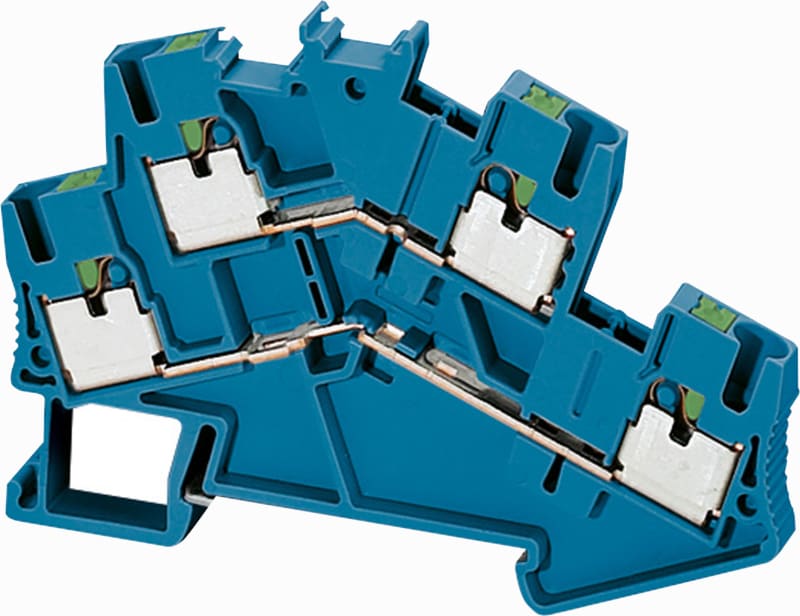

Schneider Electric NSYTRP24DBL Linergy TR Push-In Terminal Block 2.5 mm² Blue 4-Point

Schneider Electric NSYTRP24DBL is a Linergy TR pass-through terminal block with push-in connection, 2.5 mm² nominal cross section, two levels and four measurement inputs with inclined connection position. Clip-on DIN-rail mounting, rated up to 500 V and 22 A per EN/IEC 60947-7-1, with polyamide 6/6 housing and copper-alloy conductive parts. Blue coloured, sold as a set of 50 units.

Manufacturer part number (MPN)

NSYTRP24DBL

EAN / GTIN

3606480533242

Sales unit

pcs

Package quantity

50 pcs

Conductor cross-section

2.5 mm²

Range

Linergy

Product name

Linergy TR

Product or component type

Terminal block

Device short name

TRP

Accessory / separate part category

Connection accessory

Terminal block type

Passthrough

Terminal block level

2

mounting mode

Clip-on

Nominal cross section

2.5 mm²

Length

78 mm

Colour

Blue

Quantity per set

Set of 50

Width

5.2 mm

Height

55 mm

Connections - terminals

1 x push-in: upstream; 1 x push-in: downstream

number of connections

2

Connection position

Inclined

Number of measurement input

4

Cable cross section

0.14…2.5 mm², flexible without cable end; 0.14…4 mm², solid with cable end; 0.2…2.5 mm², flexible with cable end; 0.2…2.5 mm², solid without cable end

Wire stripping length

10 mm

Tool type

Connection: without tool; Disconnection: flat screwdriver

[Ue] rated operational voltage

600 V CSA; 500 V conforming to EN/IEC 60947-7-1; 440 V; 600 V UL

[In] rated current

20 A CSA; 20 A UL; 22 A conforming to EN/IEC 60947-7-1; 19.5 A

Material

Polyamide 6/6: insulating case; Copper alloy: connector and screw; Copper alloy: commoning link; Chromium-nickel steel: spring

Dielectric loss

0.01 at 1 MHz conforming to IEC 60250; 0.01 at 1 MHz conforming to VDE 0303-T4

Dielectric constant

3.7 at 1 MHz

Resistivity

10000 MΩ.m conforming to IEC 60093; 10000 MΩ.m conforming to VDE 0303-T30

Surface resistance

1000 GΩ conforming to IEC 60093; 1000 GΩ conforming to VDE 0303-T30

Creep resistance

500 CTI (> 400 kB) conforming to IEC 60093; 500 CTI (> 400 kB) conforming to VDE 0303-T30

Flame retardance

V0, thickness0.8 mm conforming to UL 94

Product weight

14.3 g

Range compatibility

PrismaSeT G; PrismaSeT P; PrismaSet HD; PrismaSeT Pack 250; PanelSeT; Mureva; PrismaSeT XS; TeSys

Product compatibility

Spacial enclosures

Product certifications

CSA; GL; UL; VDE

Dielectric strength

1000 V conforming to IEC 60243-1

Ambient air temperature for operation

-40…130 °C conforming to IEC 60216-1; -40…130 °C conforming to VDE 0304-T21

Number of Units in Package 1

1

Number of Units in Package 2

50

Country of origin

CN

Warranty (in months)

18

Suitable for conductor material

Aluminium/copper

Connectable conductor cross section solid-core

0.14–4 mm²

Connectable conductor cross section multi-wired

0.14–2.5 mm²

Rated current In

22 A

Rated voltage

500 V

Type of electrical connection 1

Plug-in connection

Type of electrical connection 2

Plug-in connection

Number of levels

2

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

-40–130 °C

Width/grid dimension

5.2 mm

Depth

78 mm

Explosion-tested version 'Ex e'

Yes

Closing plate required

Yes

Internally connected stages

No

HS Code

8536.90

• EAN 3606480533242
• SAP 1000402381
• Code 81113551
