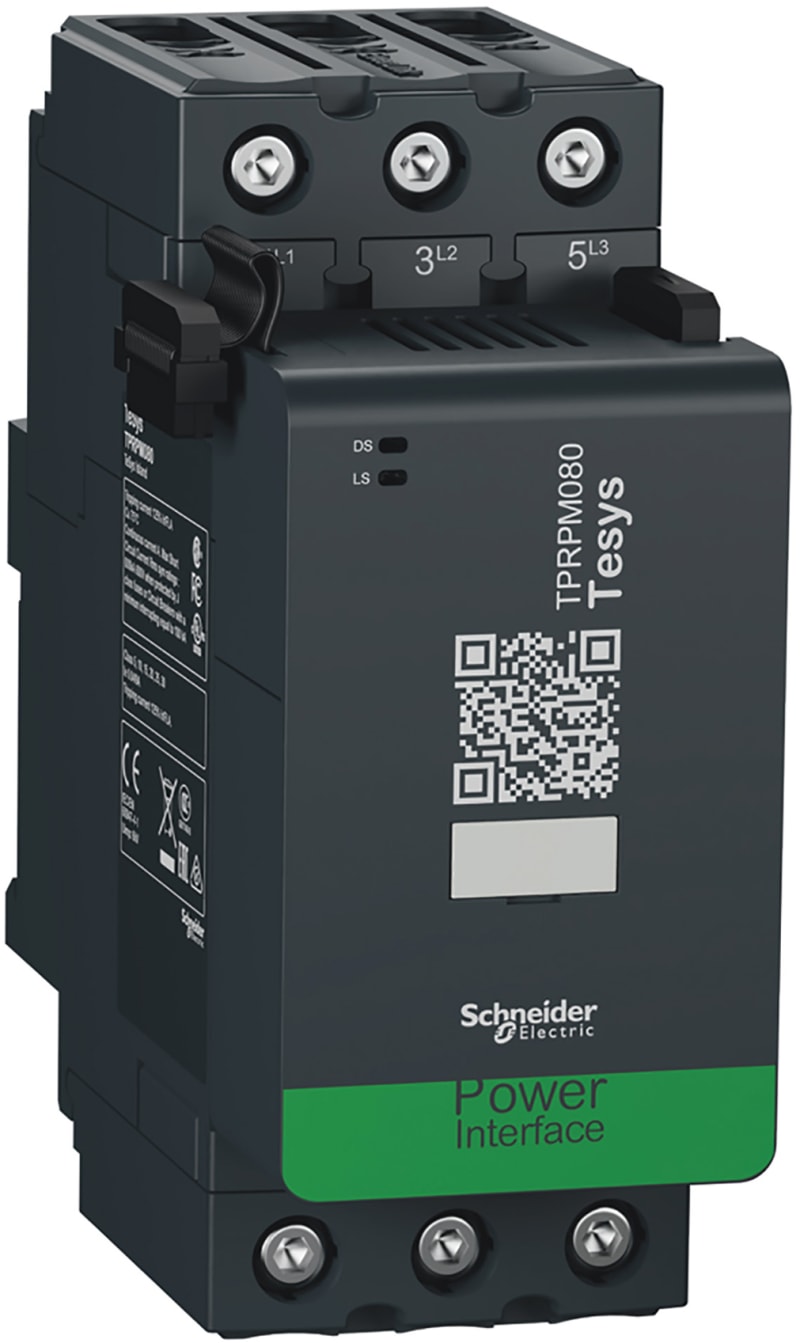

Schneider Electric Power interface module, TeSys island, 80A AC-1, 80A AC-3, 37kW / 50hp TPRPM080

Schneider Electric TPRPM080 Power interface-module T.island 80A AC-1,80A AC-3, 37kW/50hk.

Manufacturer part number (MPN)

TPRPM080

EAN / GTIN

3606489832865

Sales unit

pcs

Package quantity

8 pcs

Rated current

80 A

Power

37 kW

Range of product

TeSys

Product name

TeSys island

Device short name

TPRPM

Product or component type

Power module

Device presentation

Power module connected to an automation controller through a bus coupler; Operational only when connected to a bus coupler

Function available

Upstream voltage presence detection; Electronic thermal overload protection; Monitoring of currents; Control of third party power devices when associated to TPRDG IO module

Product compatibility

TPRBC bus coupler; TPRDG digital IO module; TPRAN analog IO module

Poles description

3P

Motor power kW

22 kW at 230 V AC 50 Hz; 37 kW at 380...415 V AC 50 Hz; 37 kW at 440 V AC 50 Hz; 37 kW at 500 V AC 50 Hz; 37 kW at 690 V AC 50 Hz

motor power HP (UL / CSA)

5 hp at 120 V AC 60 Hz for 1 phase motors; 10 hp at 240 V AC 60 Hz for 1 phase motors; 20 hp at 208 V AC 60 Hz for 3 phases motors; 20 hp at 240 V AC 60 Hz for 3 phases motors; 40 hp at 480 V AC 60 Hz for 3 phases motors; 50 hp at 600 V AC 60 Hz for 3 phases motors

[Ue] rated operational voltage

<= 690 V AC 47...63 Hz

[Ie] rated operational current

80 A (at <50 °C) at <= 440 V AC-3; 80 A (at <50 °C) at <= 440 V AC-1; 80 A (at <50 °C) AC-3e

[Ith] conventional free air thermal current

80 A (at 50 °C)

[Ui] rated insulation voltage

690 V conforming to IEC 60947-4-1; 600 V conforming to UL 60947-4-1; 600 V conforming to CSA C22.2 No 60947-4-1

[Uimp] rated impulse withstand voltage

6 kV

Overvoltage category

III

Thermal protection adjustment range

4…80 A

Thermal overload class

Class 5…30

Reset

Remotely or automatically

[Uc] control circuit voltage

24 V DC supplied by the bus coupler

Current consumption

60 mA

Power dissipation in W

2.3 W at Ie AC-3

Protection type

Thermal overload protection; Motor overheat; Overcurrent; Undercurrent; Jam; Long start; Stall; Rapid cycle lockout; Rapid restart lockout; Phase reversal; Phase loss; Phase sequence; Phase unbalance; Ground current

Monitoring type

Time device ON; Number of faults; Number of device power cycles; Average current Iavg; Average voltage Vavg; Max current Imax; Max voltage Vmax

Local signalling

1 LED (green/red) for DS (device status); 1 LED (green/red) for LS (load status)

Standards

EN/IEC 60947-1; EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1

Product certifications

CCC; UL; EAC; CSA

Mounting mode

Horizontal and vertical (35 mm symmetrical DIN rail)

Connections - terminals

EverLink BTR screw connectors 1 cable(s) 1…35 mm² (16 AWG...2 AWG) rigid; EverLink BTR screw connectors 2 cable(s) 1…25 mm² (16 AWG...4 AWG) rigid; EverLink BTR screw connectors 1 cable(s) 1…35 mm² (16 AWG...2 AWG) flexible without cable end; EverLink BTR screw connectors 2 cable(s) 1…25 mm² (16 AWG...4 AWG) flexible without cable end; EverLink BTR screw connectors 1 cable(s) 1…35 mm² (16 AWG...2 AWG) flexible with cable end; EverLink BTR screw connectors 2 cable(s) 1…25 mm² (16 AWG...4 AWG) flexible with cable end

Tightening torque

5 N.m - cable 1…25 mm² hexagonal 4 mm; 8 N.m - cable 25…35 mm² hexagonal 4 mm

Width

55 mm

Height

136 mm

Depth

125 mm

Product weight

0.425 kg

Ambient air temperature for storage

-25…70 °C

Ambient air temperature for operation

-10…50 °C without derating; 50…60 °C with current derating

Relative humidity

5…95 %

Operating altitude

0...2000 m without derating

IP degree of protection

IP20

Pollution degree

2

Protective treatment

TC

Fire resistance

960 °C conforming to UL 94; 850 °C conforming to IEC 60695-2-1; 650 °C conforming to IEC 60695-2-12

Shock resistance

15 gn (duration = 11 ms) conforming to IEC 60068-2-27

Vibration resistance

1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6; 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6

Electromagnetic compatibility

Electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2; Radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3; Fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4; Surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5; Surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5; Conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6

Country of origin

FR

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Voltage type (supply voltage)

DC

Number of inputs

1

Type of voltage (input voltage)

AC

Type of digital output

None

Type of output voltage

AC

Short-circuit protection, outputs available

No

Number of motor outlets

1

With motor current parameter setting

No

Type of electrical connection at the motor output

Screw connection

With brake output

No

With thermal motor protection

Yes

Number of HW-interfaces other

2

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

Type of electric connection

Plug-in connection

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

No

Front built-in possible

No

Rack-assembly possible

No

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8536.50

• EAN 3606489832865
• SAP 1200395714
• Code 82424132
