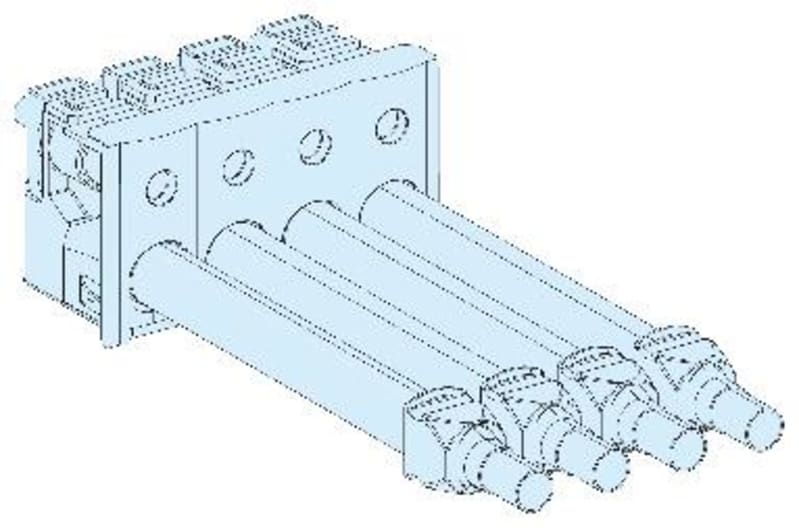

Schneider Electric One-piece connection, Linergy BW, 160A 4P Linergy BW/Device 160A W440 LVS04148
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04148 Connectionsblokk-160A-L440mm-4p-for connection between Linergy BW(Powerclip) and protection- PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04148
- EAN / GTIN
- 3606481867414
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- One-piece connection
- Product name
- Linergy BW
- Standards
- IEC 61439-1, inside enclosure; IEC 61439-2, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- Linergy BW busbar
- Poles description
- 4P
- installation description
- Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm; Cubicle - width 650 mm; Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Pack enclosure - width 550 mm
- Installed device
- ComPact: INS160; Multi9: NG125; ComPact: NG160; Multi9: C120; Acti 9: iC120
- [Ie] rated operational current
- 160 A
- Material
- Copper; Plastic
- Colour
- Copper; Black (RAL 9005)
- Length
- 440 mm
- Product weight
- 1 kg
- Quantity per set
- Set of 1
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 15
- Number of Units in Package 3
- 60
- Warranty (in months)
- 18
- RAL-number
- 9005
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481867414
- SAP 1200547044
- Code 82879474
