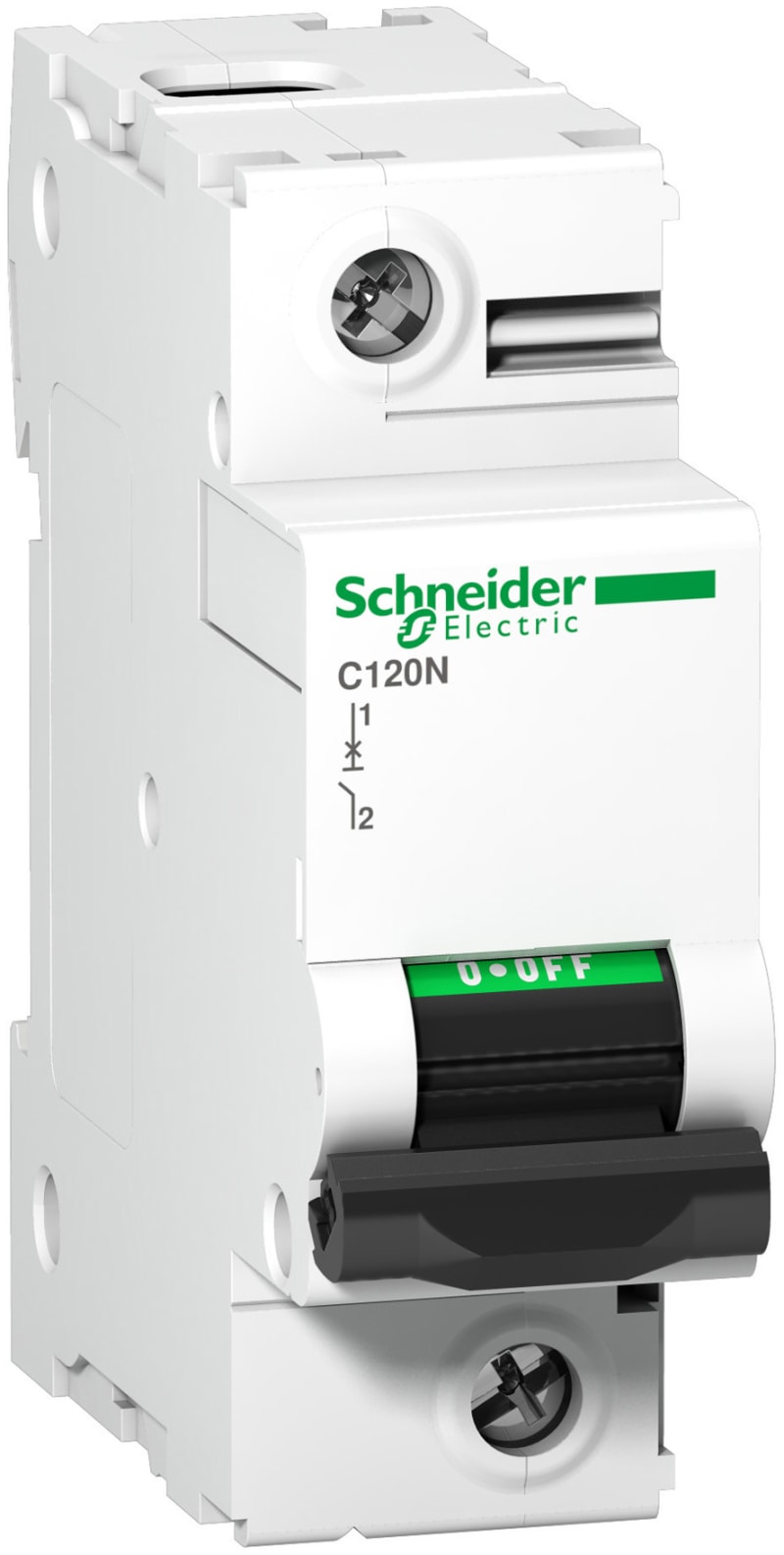

Schneider Electric Miniature circuit breaker (MCB), ACTI9 C120N, 1P, 80A, B curve, 10000A (IEC/EN 60898-1), 10KA (IEC/EN 60947-2) A9N18341

Schneider Electric A9N18341 Miniature circuit breaker C120N 1P 80A/B.

Manufacturer part number (MPN)

A9N18341

EAN / GTIN

3606480379154

HS code

8536.90

Sales unit

pcs

Package quantity

12 pcs

Rated current

80 A

Number of poles

1P

Range

Acti9

Product name

Acti9 C120

Product or component type

Miniature circuit-breaker

Device short name

C120N

Device application

Distribution

Poles description

1P

Number of protected poles

1

[In] rated current

80 A at 30 °C

Network type

AC

Trip unit technology

Thermal-magnetic

Curve code

B

Breaking capacity

3 kA Icu at 380...415 V AC 50/60 Hz IT conforming to EN/IEC 60947-2; 20 kA Icu at 130 V AC 50/60 Hz conforming to EN/IEC 60947-2; 15 kA Icu at 12 V DC conforming to EN/IEC 60947-2; 15 kA Icu at 125 V DC conforming to EN/IEC 60947-2; 10 kA Icu at <= 144 V DC conforming to EN/IEC 60947-2; 10 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2; 20 kA Icu at 12 V AC 50/60 Hz conforming to EN/IEC 60947-2; 10000 A Icn at 230/400 V AC 50/60 Hz conforming to EN/IEC 60898-1

Suitability for isolation

Yes conforming to IEC 60947-2

Standards

EN/IEC 60898-1; EN/IEC 60947-2

Product certifications

EAC

Network frequency

50/60 Hz

[Ue] rated operational voltage

380...415 V AC 50/60 Hz; 125 V DC; <= 144 V DC; 12 V DC; 220...240 V AC 50/60 Hz; 230...400 V AC 50/60 Hz; 130 V AC 50/60 Hz; 12 V AC 50/60 Hz

Magnetic tripping limit

3...5 x In

[Ics] rated service breaking capacity

15 kA 75 % conforming to EN/IEC 60947-2 - 130 V AC 50/60 Hz; 15 kA 100 % conforming to EN/IEC 60947-2 - 125 V DC; 2.25 kA 75 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz; 15 kA 100 % conforming to EN/IEC 60947-2 - 12 V DC; 10 kA 100 % conforming to EN/IEC 60947-2 - <= 144 V DC; 7.5 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz; 15 kA 75 % conforming to EN/IEC 60947-2 - 12 V AC 50/60 Hz; 7500 A 75 % conforming to EN/IEC 60898-1 - 230/400 V AC 50/60 Hz

Limitation class

3 conforming to EN/IEC 60947-2

[Ui] rated insulation voltage

500 V AC 50/60 Hz conforming to EN/IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to EN/IEC 60947-2

Contact position indicator

Yes

Control type

Toggle

Local signalling

ON/OFF indication

mounting mode

Clip-on

Mounting support

35 mm symmetrical DIN rail

Comb busbar and distribution block compatibility

YES

9 mm pitches

3

Height

81 mm

Depth

73 mm

Width

27 mm

Product weight

0.205 kg

Colour

White

Mechanical durability

20000 cycles

Electrical durability

5000 cycles conforming to IEC 60947-2

Locking options description

Handle sealable with cable diameter 0.7mm in OFF or ON position

Connections - terminals

Tunnel type terminals1…50 mm² rigid; Tunnel type terminals1.5…35 mm² flexible

Wire stripping length

15 mm

Tightening torque

3.5 N.m

Earth-leakage protection

Without

IP degree of protection

IP20 conforming to IEC 60529

Pollution degree

3 conforming to IEC 60947-2

Overvoltage category

IV

Tropicalisation

2 conforming to IEC 60068-1

Relative humidity

95 % at 55 °C

Operating altitude

2000 m

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Country of origin

FR

Warranty (in months)

18

HS Code

8536.90
