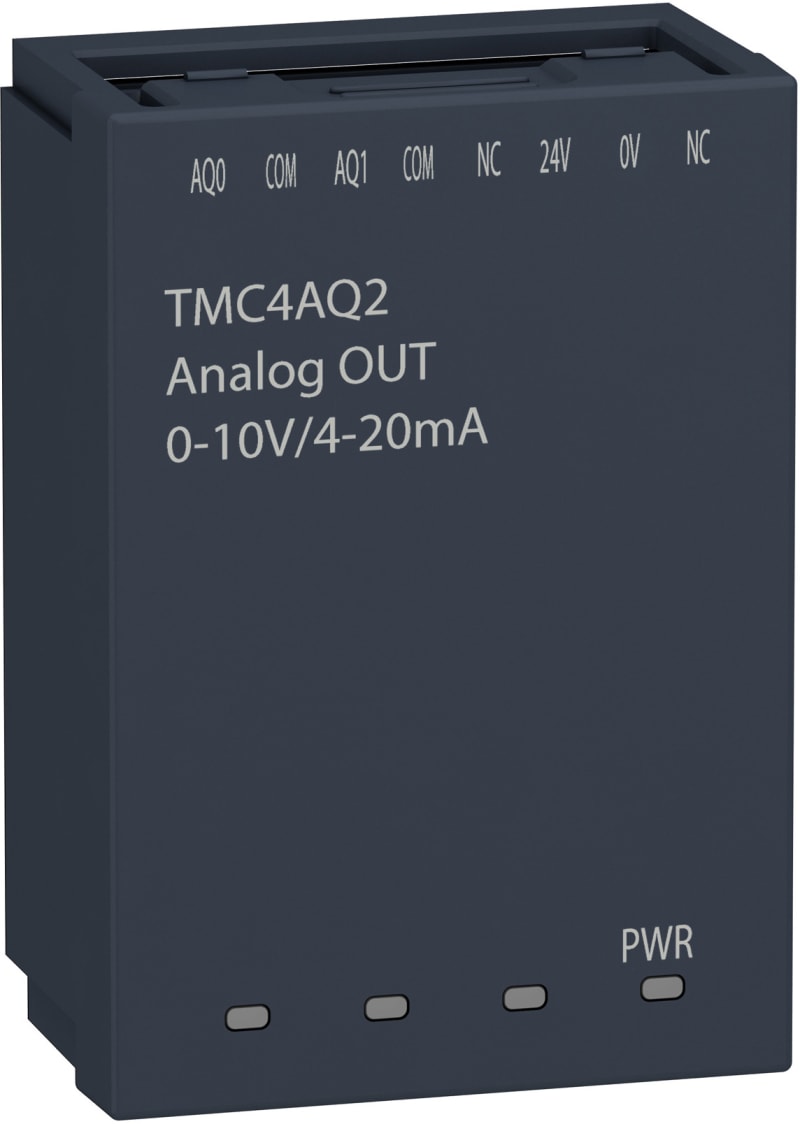

Schneider Electric TMC4AQ2 Analogue Output Cartridge Modicon M241, 2 outputs

Schneider Electric TMC4AQ2 Accessories Modicon PLC - M241 cassette - 4 analogue outputs.

Manufacturer part number (MPN)

TMC4AQ2 EAN / GTIN: 3606480649172 Sales unit: pcs Package quantity: 27 pcs Range of product: Modicon M241 Product or component type: Analogue output cartridge Product compatibility: Modicon M241C Analogue output number: 2 Analogue output type: Current: 4...20 mA; Voltage: 0...10 V Analogue output resolution: 16 bits LSB value: 1 mV 0...10 V voltage; 2 µA 4...20 mA current load type: Resistive Load impedance ohmic: = 2 kOhm voltage Conversion time: 10 ms + 1 controller cycle time Stabilisation time: 10 ms Absolute accuracy error: +/- 0.2 % of full scale at 25 °C Temperature drift: +/- 0.006 %FS/°C Repeat accuracy: +/- 0.5 %FS Non-linearity: +/- 0.05 %FS Output ripple: +/- 20 mV Cross talk: 80 dB Type of cable: Twisted shielded pairs cable Electrical connection: 1 x 1.5 mm² 1 spring terminal block with pitch 3.5 mm adjustment for outputs and supply Maximum cable distance between devices: Twisted shielded pairs cable: <30 m for input Insulation: Between output and internal logic at 500 V DC; Non-insulated between outputs Supply voltage limits: 20.4…28.8 V Local signalling: 1 LED (green) for PWR Height: 50 mm Depth: 21 mm Width: 34 mm Product weight: 0.055 kg Immunity to microbreaks: 10 ms Number of Units in Package 1: 1 Number of Units in Package 2: 27 Number of Units in Package 3: 432 Country of origin: ID Warranty (in months): 18 Power consumption: 1.1 W Number of analogue outputs: 2 Analogue inputs configurable: No Analogue outputs configurable: No Input, current: No Input, voltage: No Input, resistor: No Input, resistance thermometer: No Input, thermocouple: No Input signal, configurable: No Resolution of the analogue inputs: 12 Bit Output, current: Yes Output, voltage: Yes Output signal configurable: No Resolution of the analogue outputs: 16 Bit Type of electric connection: Screw connection Suitable for safety functions: No SIL according to IEC 61508: None Performance level according to EN ISO 13849-1: None Appendant operation agent (Ex ia): No Explosion safety category for gas: None Explosion safety category for dust: None

HS Code

8538.90

• EAN 3606480649172
• SAP 1000601536
• Code 8421393
