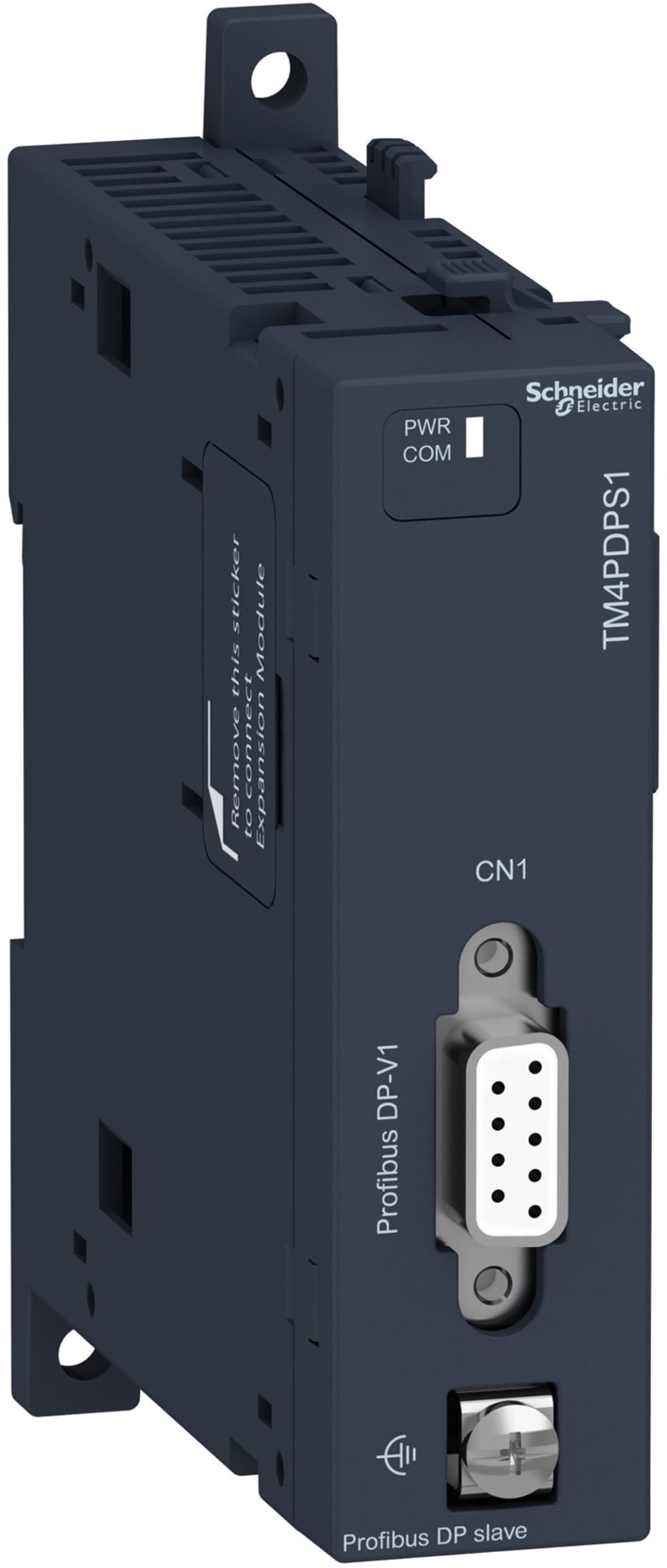

Schneider Electric module network TM4 1 Profibus DP slave TM4PDPS1

Schneider Electric TM4PDPS1 Accessories Modicon PLS - Communication Module - ProfiBus DP Slave.

Manufacturer part number (MPN)

TM4PDPS1

EAN / GTIN

3606480649066

Sales unit

pcs

Package quantity

20 pcs

Product or component type

Profibus DP communication module

Range compatibility

Modicon M251; Modicon M241

Product compatibility

Modicon M241 logic controller; Modicon M251 logic controller

Current consumption

290 mA at 5 V DC for communication bus

Power dissipation in W

1.5 W

Integrated connection type

Profibus DP: female SUB-D 9 connector

Transmission rate

1.5 Mbit/s for bus length of 200 m; 500 kbit/s for bus length of 400 m; 187.5 kbit/s for bus length of 1000 m; 9.6...93.75 kbit/s for bus length of 1200 m; 3...12 Mbit/s for bus length of 100 m

Communication port protocol

Profibus DP V0; Profibus DP V1

Insulation

Between bus and internal logic at 1000 V DC

Local signalling

1 LED (green/yellow) for power supply; 1 LED (green/red) for communication

Electrical connection

Screw connector terminal for connecting the functional ground; SUB-D 9 1 female connector for connecting Profibus

Marking

CE

Surge withstand

1 kV power lines (DC) common mode conforming to IEC 61000-4-5; 2 kV power lines (AC) common mode conforming to IEC 61000-4-5; 2 kV relay output common mode conforming to IEC 61000-4-5; 1 kV I/O common mode conforming to IEC 61000-4-5; 1 kV shielded cable common mode conforming to IEC 61000-4-5; 0.5 kV power lines (DC) differential mode conforming to IEC 61000-4-5; 1 kV power lines (AC) differential mode conforming to IEC 61000-4-5; 1 kV relay output differential mode conforming to IEC 61000-4-5; 0.5 kV I/O differential mode conforming to IEC 61000-4-5

Mounting support

Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit

Width

25 mm

Height

90 mm

Depth

90 mm

Product weight

0.1 kg

Standards

IEC 61131-2; UL 508; EIA-485

Product certifications

C-Tick; cULus

Resistance to electrostatic discharge

8 kV in air conforming to IEC 61000-4-2; 4 kV on contact conforming to IEC 61000-4-2; 8 kV in air conforming to Marine specification (LR, ABS, DNV, GL); 6 kV on contact conforming to Marine specification (LR, ABS, DNV, GL)

Resistance to electromagnetic fields

10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3; 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3; 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3

Resistance to fast transients

2 kV (power lines) conforming to IEC 61000-4-4; 2 kV (relay output) conforming to IEC 61000-4-4; 1.5 kV (I/O) conforming to IEC 61000-4-4; 1 kV (Ethernet line) conforming to IEC 61000-4-4; 1 kV (serial link) conforming to IEC 61000-4-4

Resistance to conducted disturbances

10 V 0.15...80 MHz conforming to IEC 61000-4-6; 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL); 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Electromagnetic emission

Conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15…0.5 MHz conforming to IEC 55011; Conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5…300 MHz conforming to IEC 55011; Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10…150 kHz conforming to IEC 55011; Conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5…30 MHz conforming to IEC 55011; Radiated emissions - test level: 40 dBμV/m QP class A at 30…230 MHz conforming to IEC 55011; Radiated emissions - test level: 60...54 dBμV/m QP at 30…100 MHz conforming to Marine specification (LR, ABS, DNV, GL); Radiated emissions - test level: 24 dBμV/m QP at 156…165 MHz conforming to Marine specification (LR, ABS, DNV, GL); Conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150…1500 kHz conforming to IEC 55011; Radiated emissions - test level: 47 dBμV/m QP class A at 230…1000 MHz conforming to IEC 55011; Radiated emissions - test level: 80...50 dμV/m QP at 150…30000 kHz conforming to Marine specification (LR, ABS, DNV, GL); Radiated emissions - test level: 54 dBμV/m QP at 100…2000 MHz conforming to Marine specification (LR, ABS, DNV, GL)

Ambient air temperature for operation

-10…55 °C horizontal installation; -10…50 °C vertical installation

Ambient air temperature for storage

-25…70 °C

Relative humidity

10…95 %, without condensation (in operation); 10…95 %, without condensation (in storage)

IP degree of protection

IP20 with protective cover in place

Pollution degree

2

Operating altitude

0...2000 m

Storage altitude

0…3000 m

Vibration resistance

1 mm at 5…13.2 Hz on symmetrical rail; 3 gn at 8.7…150 Hz on symmetrical rail; 1 mm at 5…13.2 Hz on panel mounting; 0.7 gn at 13.2…100 Hz on panel mounting

Shock resistance

15 gn for 11 ms

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.600 cm

Package 1 Width

11.500 cm

Package 1 Length

17.000 cm

Package 1 Weight

190.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

20

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

4.478 kg

Country of origin

ID

Warranty (in months)

18

Number of HW-interfaces industrial Ethernet

1

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

Yes

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Redundancy

No

With potential separation

Yes

SIL according to IEC 61508

None

Suitable for safety functions

No

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8517.62
