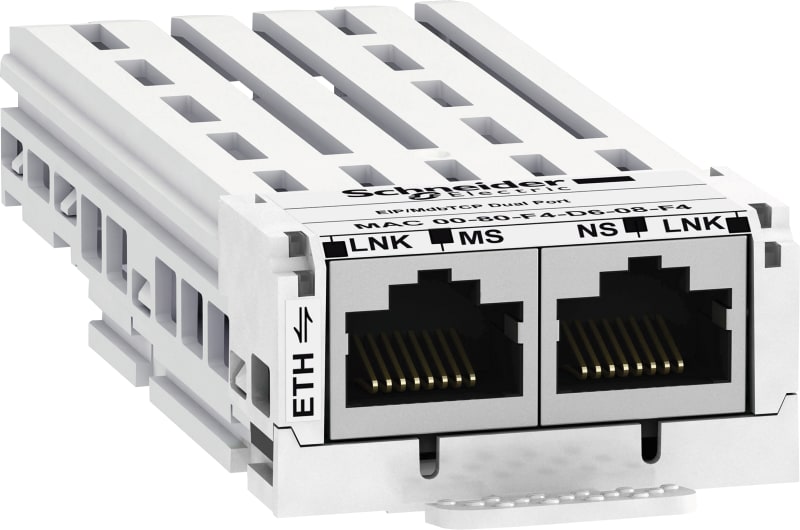

Schneider Electric VW3A3721 EtherNet/IP Modbus TCP MultiDrive-Link Module 2xRJ45
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A3721 is a dual-port communication module for Altivar Process ATV600 and Altivar Process Modular drives, providing 2xRJ45 connections supporting EtherNet/IP, Modbus TCP and MultiDrive-Link (MD-Link) protocols at 10/100 Mbps. The card enables multi-pump control between drives without an external controller and hosts an embedded HTTP server with widgets for setup, monitoring, energy tracking and firmware upgrade. Topology supports daisy chain with RSTP, FDR, SNTP and Auto-MDIX.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A3721
- EAN / GTIN
- 3606481156426
- Sales unit
- pcs
- Package quantity
- 16 pcs
- Range of product
- Altivar
- Product or component type
- Communication module
- Range compatibility
- Altivar Process ATV600; Altivar Process Modular
- Communication port protocol
- MD-Link; EtherNet/IP; Modbus TCP
- Electrical connection
- 2 connectors RJ45, Ethernet IP/Modbus TCP/MD-Link
- Transmission rate
- 10/100 Mbps
- Exchange mode
- Half duplex and full duplex
- Communication service
- SNMP agent for Ethernet IP; Modbus TCP server for Ethernet IP/Modbus TCP; Ethernet/IP adapter for Ethernet IP; RSTP support for Ethernet IP; FTP for Ethernet IP; ODVA AC drive and CiA 402 profile for Ethernet IP/Modbus TCP; Auto-MDIX for Ethernet IP/Modbus TCP; 32 parameters IN - 32 parameters OUT implicit messaging for Ethernet IP/Modbus TCP; FDR for Ethernet IP/Modbus TCP
- Communication network type
- IPv6 (internet protocol)
- Topology
- Daisy chain
- Time synchronisation protocol
- SNTP
- Web server
- Embedded HTTP server
- Web services
- Widgets (ID, control, data table, diagnostic, charts); Energy monitoring; Customizable home page; Save/restore drive configuration; Ethernet setting and diagnostic; Pump function setting and monitoring; Upgrade drive firmware; Drive monitor; Drive setting and diagnostic
- Display type
- 1 LED for MS (Module Status); 1 LED for NS (Network Status); 1 LED for TX/RX (Transmit/Receive port 1); 1 LED for TX/RX (Transmit/Receive port 2)
- Bus profile
- CIP AC Drive; CiA 402
- Product weight
- 0.2 kg
- Product certifications
- ODVA; Achilles: level 2
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.5 cm
- Package 1 Width
- 13.0 cm
- Package 1 Length
- 19.0 cm
- Package 1 Weight
- 151.0 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 16
- Package 2 Height
- 30.0 cm
- Package 2 Width
- 30.0 cm
- Package 2 Length
- 40.0 cm
- Package 2 Weight
- 2.917 kg
- Country of origin
- ID
- Warranty (in months)
- 18
- Type of accessory/spare part
- Communication module
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 3606481156426
- SAP 1200020065
- Code 81399066
Product Documentation
More from Schneider Electric
Schneider Electric

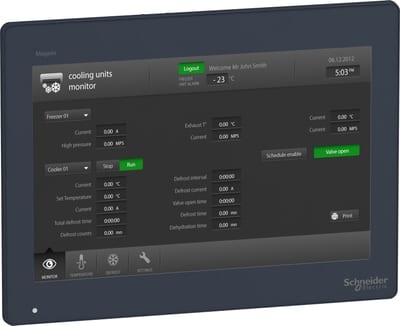

Schneider Electric 12W Touch Advanced Display WXGA HMIDT651
Schneider Electric

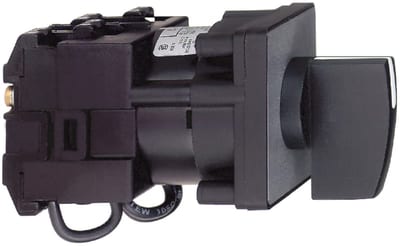

Schneider Electric Harmony K1, K2, Cam switch, 2 poles, with off position, 45° switching angle, 12 A, multi-fixing K1B002ALH
