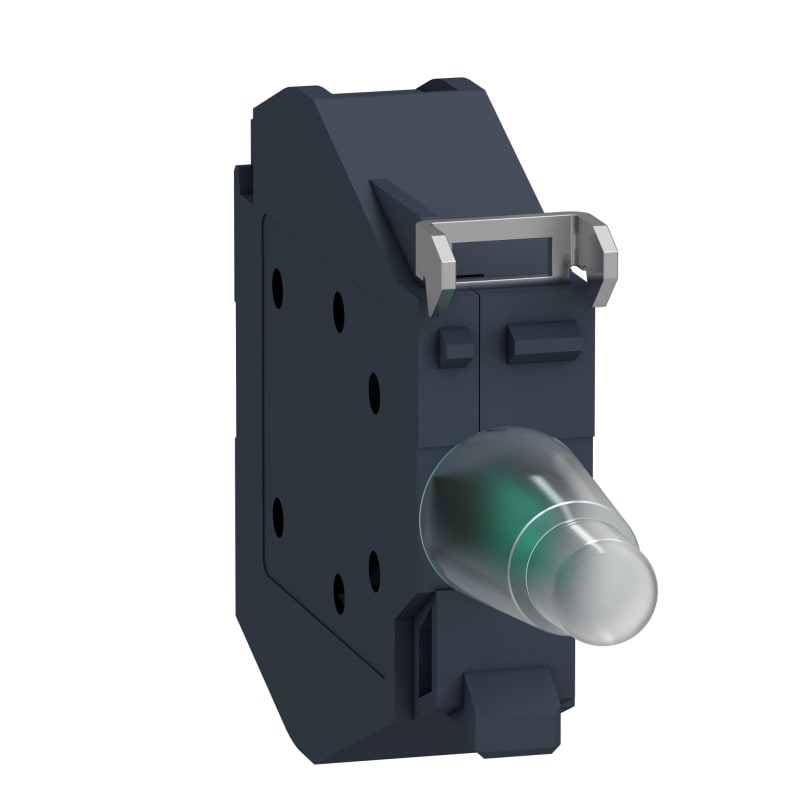

Schneider Electric Light block, Harmony XB4, Explosive atmosphere, Green LED, 24...254V ZBVBM3GEX
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZBVBM3GEX LED element green 24-254V for ATEX push buttons.
Technical Specifications
- Manufacturer part number (MPN)
- ZBVBM3GEX
- EAN / GTIN
- 3606489486136
- Sales unit
- pcs
- Range of product
- Harmony XB4
- Product or component type
- Light block
- Device short name
- ZBV
- Sale per indivisible quantity
- 1
- Connections - terminals
- Screw clamp terminals, 2 x 1.5 mm² without cable end conforming to IEC 60947-1; Screw clamp terminals, 1 x 2.5 mm² with cable end conforming to IEC 60947-1
- Signalling type
- Steady
- Light source
- LED
- Bulb base
- Integral LED
- Light block supply
- Direct
- Light source colour
- Green
- [Us] rated supply voltage
- 24...254 V AC/DC
- CAD overall width
- 38 mm
- CAD overall height
- 10 mm
- CAD overall depth
- 58.8 mm
- Product weight
- 0.02 kg
- Marking
- Ex eb mb IIC Gb
- Tightening torque
- 0.8…1.2 N.m conforming to IEC 60947-1
- Current consumption
- 2...10 mA
- Service life
- 100000 h at ambiant temperature
- Mounting of block
- Front mounted
- Protective treatment
- TH
- Ambient air temperature for storage
- -50…70 °C
- Ambient air temperature for operation
- -50…95 °C
- IP degree of protection
- IP65 conforming to IEC 60529
- Standards
- IEC 60079-31; ANSI/ISA 12.12.01; UL 60079-31; EN/IEC 60079-18; IEC 60079-0; IEC 60079-7; UL 60079-18; UL 60079-0; CSA C22.2 No 213
- Product certifications
- cULus
- Environmental characteristic
- Hazardous location class I division 2
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
- Lamp holder
- None
- Transformer integrated
- No
- With integrated voltage decreasing resistor
- No
- With integrated diode
- Yes
- Colour light source
- Green
- Lamp type
- LED
- Type of fastening
- Front fastening
- With light source
- Yes
- Connection type auxiliary circuit
- Spring clamp connection
- Rated voltage Ue at AC 50 Hz
- 24–240 V
- Rated voltage Ue at AC 60 Hz
- 24–240 V
- Rated voltage Ue at DC
- 24–240 V
- Voltage type for actuating
- AC/DC
- Country of origin
- France
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3606489486136
- SAP 1200722574
- Code 83857028
