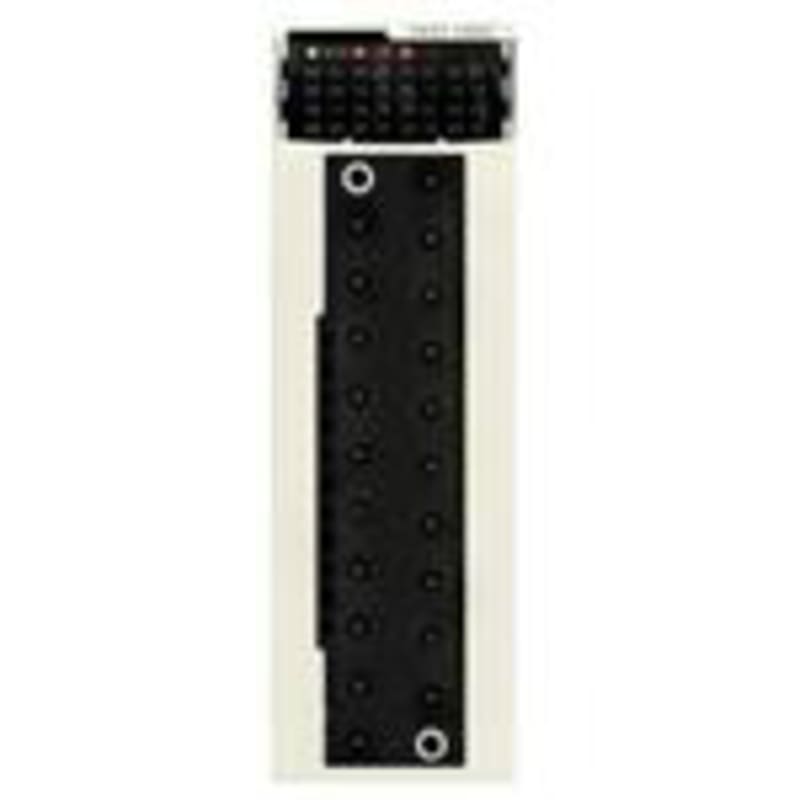

Schneider Electric discrete output module X80 - 16 outputs - 24 V DC negative BMXDDO1612

Schneider Electric BMXDDO1612 M340 16 out transisitor, 24VDC, 0.5A, FTB.

Manufacturer part number (MPN)

BMXDDO1612

EAN / GTIN

3595863966961

Sales unit

pcs

Voltage

24 V DC

Range of product

Modicon X80

Product or component type

Discrete output module

Discrete output logic

Negative

Response time on output

1.2 ms

Maximum voltage drop

<1.2 V at state 1

Insulation resistance

> 10 MOhm 500 V DC

Current per channel

0.625 A

Maximum current per module

10 A

Paralleling of outputs

Yes : 3 maximum

Switching frequency

0.5/LI² Hz

Load impedance ohmic

>= 48 Ohm

Reverse polarity protection

Reverse mounted diode

MTBF reliability

490000 H

Protection type

reverse polarity protection; External short-circuit protection; overload protection; overvoltage protection

Voltage detection threshold

18 V DC preactuator at state 0

Product weight

0.12 kg

IP degree of protection

IP20

Protective treatment

Standard version

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility

Dielectric strength

1500 V AC at 50/60 Hz 1 minute, output/ground; 1500 V AC at 50/60 Hz 1 minute, output/internal logic

Relative humidity

5…95 % at 55 °C without condensation

Number of Units in Package 1

1

Number of Units in Package 2

15

Country of origin

FR

Warranty (in months)

18

Power consumption

2.26 W

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Number of digital outputs

16

Digital inputs configurable

No

Digital outputs configurable

Yes

Input current at signal 1

0.65 mA

Permitted voltage at input

24 V

Type of voltage (input voltage)

DC

Type of digital output

Transistor

Output current

0.5 A

Permitted voltage at output

24 V

Type of output voltage

DC

Short-circuit protection, outputs available

Yes

Redundancy

No

Type of electric connection

Plug-in connection

Time delay at signal change

1.2 ms

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

Width

33 mm

Height

100 mm

Depth

150 mm

HS Code

8538.90
