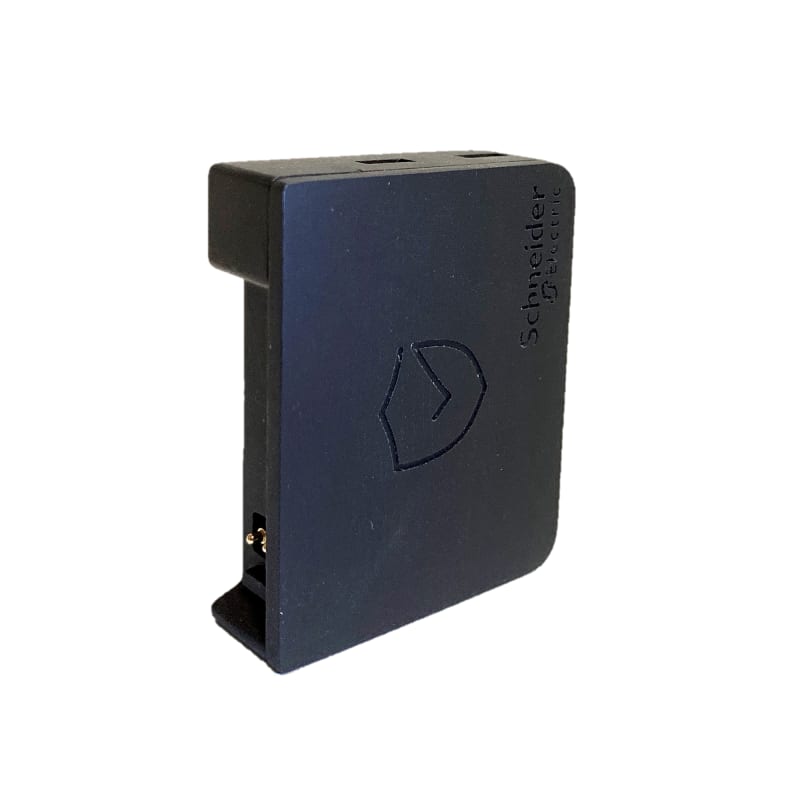

commissioning module for hub

Schneider Electric ZBRZ1 commissioning module for endring of Zigbee channel and/or kryptering of signal from ZBRTx.

Manufacturer part number (MPN)

ZBRZ1

EAN / GTIN

3606482035072

Sales unit

pcs

Package quantity

100 pcs

Range of product

Harmony XB5R

Product or component type

Commissioning module

Device short name

XB5R

Product compatibility

ZBRA1 - antenna (V3.3 and above); ZBRN1 - wireless access point (V3.32 and above); ZBRN2 - wireless access point (V3.32 and above)

Sale per indivisible quantity

1

[Us] rated supply voltage

3 V with battery

Embedding depth

42 mm

CAD overall height

34.5 mm

CAD overall width

43.6 mm

CAD overall depth

12 mm

Product weight

0.002 kg

Standards

IEC 60947-1; IEC 60947-5-1

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

5…35 °C

Relative humidity

95 % at 0…35 °C without condensation

Mechanical durability

1000 cycles

Electromagnetic compatibility

Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2; Electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3; Susceptibility to electromagnetic fields - test level: 3 V/m conforming to IEC 61000-4-3; Susceptibility to electromagnetic fields - test level: 3 V/m (1000...6000 MHz) conforming to IEC 61000-4-3

Product certifications

CSA; UL listed; EAC

Number of Units in Package 1

1

Number of Units in Package 2

100

Country of origin

FR

Warranty (in months)

18

Radio frequency

2700 MHz

Rolling code system

No

Flush-mounted radio transmitter

No

Surface mounted radio transmitter

No

With radio coding device

Yes

Keyboard protection cover

No

HS Code

8536.50
