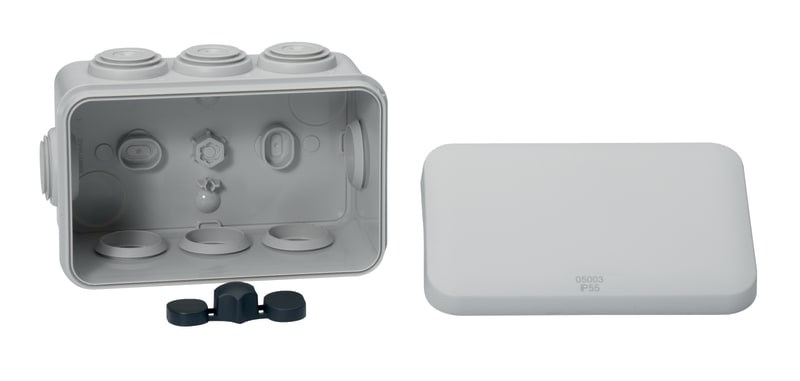

Connection Box 105X65X55 Grey
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ENN05003 Mureva Box, boite de dérivation IP55 + embouts 105x65x55, gris.
Technical Specifications
- Manufacturer part number (MPN)
- ENN05003
- EAN / GTIN
- 3295150050037
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Dimensions
- 105×65×55
- product range
- Mureva BOX
- product type
- Junction box
- quantity per package
- 5 pieces
- Main colour tint
- Grey
- Mounting
- Surface
- cable entry
- Grommets
- Fixing mode
- Clip-on: cover
- Inner dimensions
- 105 x 65 x 55 mm
- number of cable entries
- 8 diameter: 20 mm
- Material
- ABS (acrylonitrile butadiene-styrene): body; PP (polypropylene): cover; SBS (styrene butadiene styrene): grommet
- Electrical insulation class
- Class II conforming to IEC 536
- Height
- 61 mm
- Width
- 125 mm
- Depth
- 83 mm
- Product weight
- 0.092 kg
- Colour tint
- Grey (RAL 7035)
- operating temperature
- -25…40 °C
- IP-Class
- IP55 conforming to IEC 60529
- IK-Class
- IK07 conforming to EN 50102
- glow wire temperature
- 650 °C
- Standards
- EN 60670; CE
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Number of Units in Package 3
- 90
- Country of origin
- PL
- Warranty (in months)
- 18
- Model
- Junction box
- RAL-number (similar)
- 7035
- Max. conductor cross section
- 20 mm²
- Equipped with
- None
- Shape
- Rectangular
- Mounting method
- Wall-/ceiling mounting
- Mounting in the soil
- No
- Mounting under water
- No
- For tube diameter
- 20 mm
- Inlet from the rear
- No
- Length
- 125 mm
- Connectable
- No
- Number of inlets
- 8
- Type of housing feed-through
- Seal membrane
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Grey
- Degree of protection (IP)
- IP55
- Cover model
- Blind cover
- Transparent cover
- No
- Cover attachment
- Snapped on
- Castable
- No
- Casting compound included
- No
- Sealable
- No
- Circuit integrity
- None
- With screening
- No
- Weatherproof
- Yes
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3295150050037
- SAP 1200058135
- Code 81900071
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 ICV40N, 1P+N, 32A, C curve, 6000A, A-SI type, 300MA A9DF7632
Schneider Electric
Busbar Linergy BW 250A 4P L1400 G/P
LVS04127
Schneider Electric
Schneider Electric discrete output module X80 - 16 outputs - 24 V DC negative BMXDDO1612
Schneider Electric
Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 ICV40N, 1P+N, 40A, C curve, 6000A, A type, 30MA A9DC3640
Schneider Electric
Schneider Electric Cable tie, Thorsman installation material, 300X4.8MM, clear IMT46419
Schneider Electric
Wall box for PK Unika without svekk.
83919
Schneider Electric
commissioning module for hub
ZBRZ1
Schneider Electric

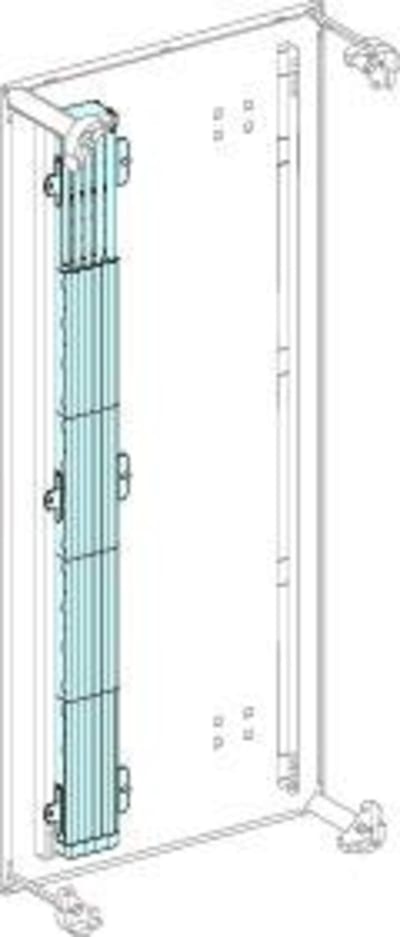

Busbar Linergy BW 160A 4P L1000 G/P
