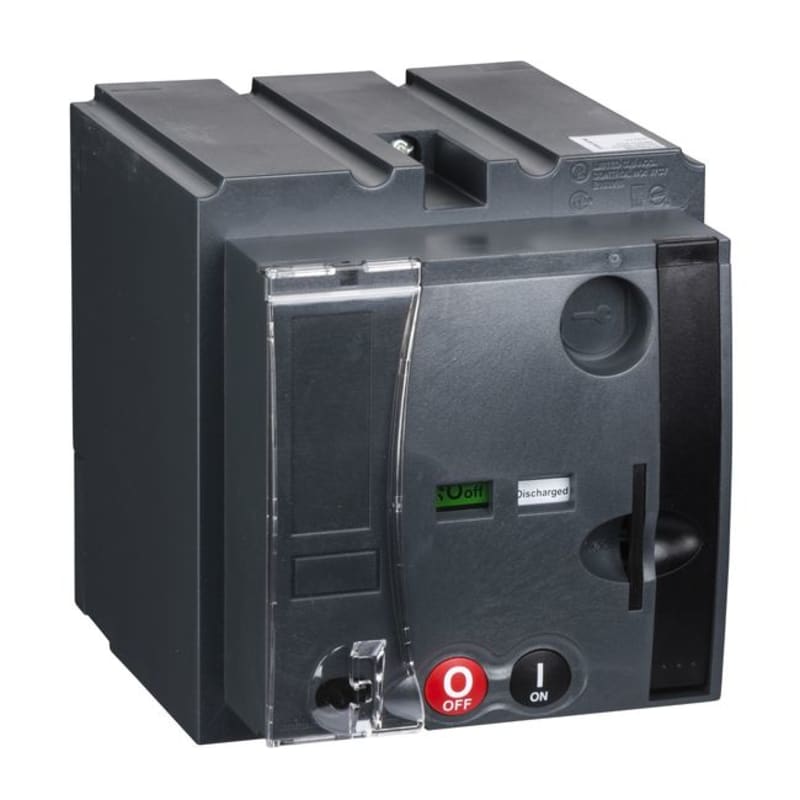

Schneider Electric standard motor mechanism module MT400/630, ComPact NSX400/630, 110/130 VDC LV432645
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV432645 Motor mechanism 110-130VDC NSX400/630.
Technical Specifications
- Manufacturer part number (MPN)
- LV432645
- EAN / GTIN
- 3606480020216
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Device short name
- MT400/630
- Product or component type
- Motor mechanism
- Device application
- Automatic spring charging
- Range compatibility
- ComPacT NSX400; ComPacT NSX630; ComPacT NSX400 DC; ComPacT NSX630 DC
- Control type
- Standard
- [Uc] control circuit voltage
- 110...130 V DC
- circuit breaker mounting mode
- Fixed
- circuit breaker frame rated current
- 630 A; 400 A
- Control signal type
- Maintained; Impulse
- circuit breaker response time
- < 700 ms open; < 80 ms closed
- Maximum operating frequency
- 4 per minute
- Maximum power consumption in W
- 500 W - closing; 500 W - opening
- Locking options description
- 1 to 3 padlocks Ø 5 to Ø 8; Padlocking in OFF position
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 19.8 cm
- Package 1 Width
- 17.0 cm
- Package 1 Length
- 17.0 cm
- Package 1 Weight
- 3.158 kg
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 6
- Package 2 Height
- 30.0 cm
- Package 2 Width
- 40.0 cm
- Package 2 Length
- 60.0 cm
- Package 2 Weight
- 19.828 kg
- Country of origin
- IT
- Warranty (in months)
- 18
- Rated control supply voltage DC
- 110–130 V
- Type of switch drive
- Motor drive
- Voltage type for actuating
- DC
Standards & Compliance
- HS Code
- 8501.20
Cross References
- EAN 3606480020216
- SAP 1000092802
- Code 8908019
