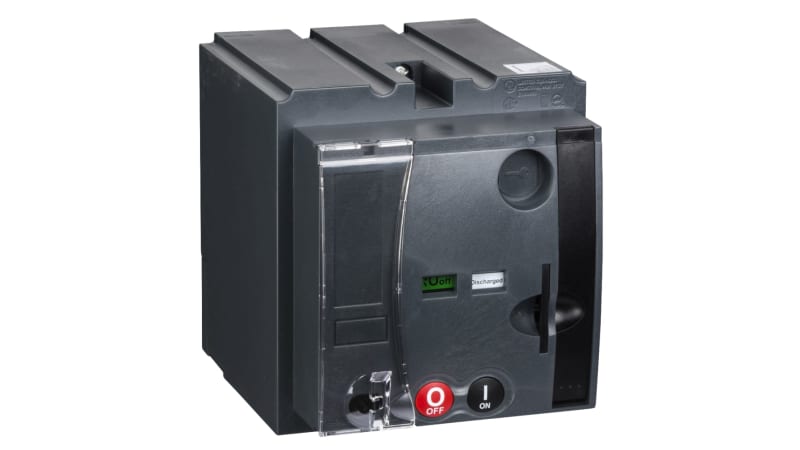

Schneider Electric standard motor mechanism module MT400/630, ComPact NSX400/630, 380/415 VAC 50/60 Hz LV432642
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV432642 Motor mechanism 380-415VAC NSX400/630.
Technical Specifications
- Manufacturer part number (MPN)
- LV432642
- EAN / GTIN
- 3606480020186
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Voltage
- 380-415 V AC
- Device short name
- MT400/630
- Product or component type
- Motor mechanism
- Device application
- Automatic spring charging
- Range compatibility
- ComPacT NSX400; ComPacT NSX630; ComPacT NSX400 DC; ComPacT NSX630 DC
- Control type
- Standard
- [Uc] control circuit voltage
- 380...415 V AC 50 Hz
- circuit breaker mounting mode
- Fixed
- circuit breaker frame rated current
- 630 A; 400 A
- Control signal type
- Impulse; Maintained
- circuit breaker response time
- < 700 ms open; < 80 ms closed
- Maximum operating frequency
- 4 per minute
- Maximum power consumption in VA
- 500 VA closing; 500 VA opening
- Locking options description
- Padlocking in OFF position; 1 to 3 padlocks Ø 5 to Ø 8
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Country of origin
- IT
- Warranty (in months)
- 18
- Rated control supply voltage AC 50 Hz
- 380–415 V
- Rated control supply voltage AC 60 Hz
- 380–415 V
- Type of switch drive
- Motor drive
- Voltage type for actuating
- AC
Standards & Compliance
- HS Code
- 8501.20
Cross References
- EAN 3606480020186
- SAP 1000092799
- Code 8861077
Product Documentation
More from Schneider Electric
Schneider Electric
Tesys T Ethern 0,4-8A 24VDC
LTMR08EBD
Schneider Electric
Schneider Electric A9F95263 ACTI9 IC60L Miniature Circuit Breaker 2P 63 A, Curve K
Schneider Electric
Schneider Electric set of 2 PanelSeT SF/SM partial 19" swing rack supports - 800 mm NSYRSWSP8
Schneider Electric
JORDTILCONNECTIONVZ16
Schneider Electric
Schneider Electric Circuit breaker frame, ComPacT NS1000L, 150KA at 415VAC, 1000A, 3P, fixed, manually operated, without control unit C100L3FM
Schneider Electric
Schneider Electric ZB4R transmitter complete, green cap ZB4RTA3
Schneider Electric
Flexicable flange 495X220
NSYTLGME
Schneider Electric
Schneider Electric APC Replacement Battery Cartridge 159 with 2 Year Warranty APCRBC159
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LV432642?
- LV432642 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LV432642.
- What is the HS code for LV432642?
- The customs tariff (HS) code for LV432642 is 8501.20.
- Who manufactures LV432642?
- LV432642 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for LV432642?
- Yes — the LV432642 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LV432642?
- The minimum order quantity is 1.
- Is LV432642 available?
- Yes — LV432642 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
