JORDTILCONNECTIONVZ16
Pricing
Request a quote
We reply within 24 hours
Product Description

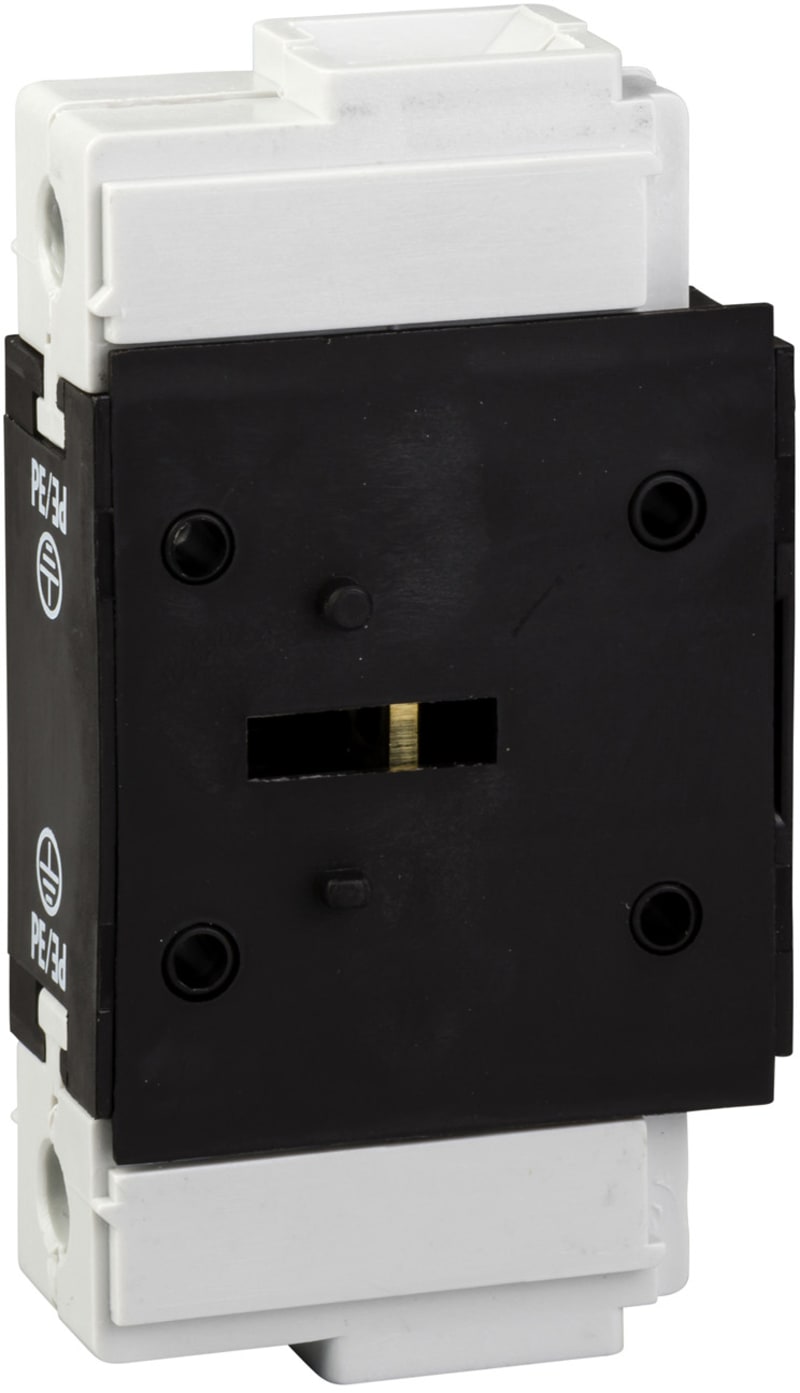

Schneider Electric VZ16 Earth Connection V5/V6.
Technical Specifications
- Manufacturer part number (MPN)
- VZ16
- EAN / GTIN
- 3389110551952
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Range
- TeSys
- Device short name
- VZ
- Product or component type
- Additional earthing block
- Performance level
- High performance
- Contacts type and composition
- Without
- Product compatibility
- V5; V6
- Network type
- AC; DC
- Network frequency
- 50/60 Hz
- Mounting location
- Left; Right
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz
- [Uimp] rated impulse withstand voltage
- 6 kV
- [Ith] conventional free air thermal current
- 175 A
- Connections - terminals
- Screw clamp terminals
- Height
- 125 mm
- Width
- 30 mm
- Depth
- 63 mm
- Product weight
- 0.25 kg
- Standards
- IEC 60947-3
- Product certifications
- GL; CSA; UL; UKCA
- Protective treatment
- TC
- IP degree of protection
- IP20 conforming to IEC 60529
- Mechanical robustness
- Vibrations 10...150 Hz (5 gn) conforming to IEC 60068-2-6; Shocks 11 ms (15 gn) conforming to IEC 60068-2-27
- Ambient air temperature for operation
- -20…50 °C
- Fire resistance
- 960 °C conforming to IEC 60695-2-1
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 30
- Country of origin
- CZ
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3389110551952
- SAP 1000078038
- Code 8569060
Product Documentation
