Jumper link 2 pole for 2,5mm² - red
Pricing
Request a quote
We reply within 24 hours
Product Description

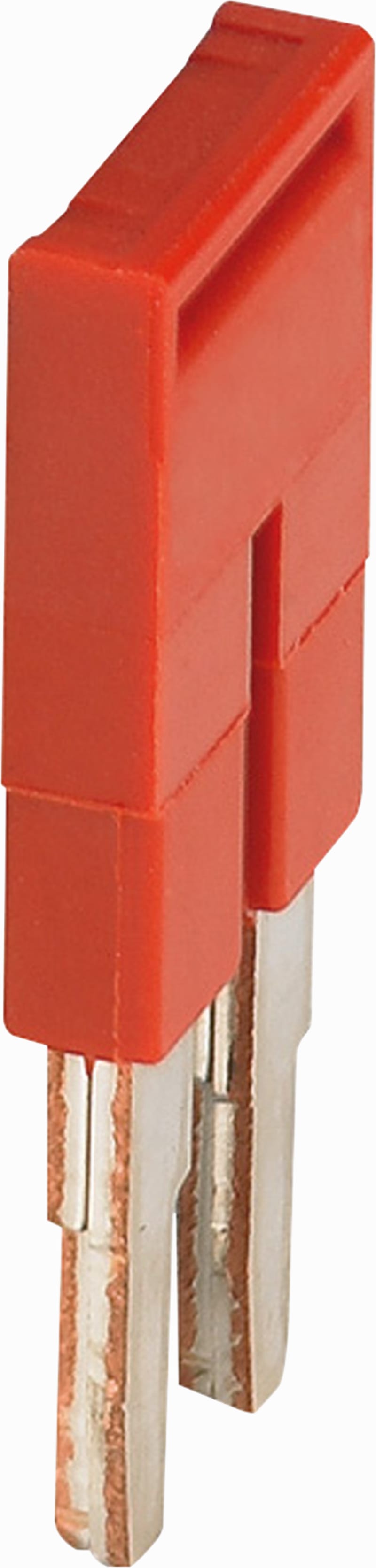

Schneider Electric NSYTRAL22 Jumper link 2 pole for 2,5mm² - red.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTRAL22
- EAN / GTIN
- 3606480534058
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Number of poles
- 2P
- Conductor cross-section
- 2.5 mm²
- Range
- Linergy
- Product name
- Linergy TR
- Product or component type
- Plug-in bridge
- Device short name
- TRA
- Accessory / separate part category
- Connection accessory
- Product compatibility
- TRV screw terminal terminal block; TRP push-in terminal block; TRH IDC terminal block; TRR spring terminal - passthrough terminal block; TRR spring terminal - protective earth terminal block, length = 78 mm; TRR spring terminal - blade disconnect terminal block; TRR spring terminal - removable carrier disconnect terminal block
- Number of ways
- 2 ways
- Cable cross section
- 2.5 mm²
- number of connections
- 3; 4; 2
- Number of measurement input
- 2; 6; 1; 3; 4
- Quantity per set
- Set of 50
- Product weight
- 1.7 g
- Colour
- Red
- Country of origin
- DE
- Warranty (in months)
- 18
- Mounting method
- Pluggable
- Model
- Push-in type jumper bar
- Insulated
- Yes
- Modular spacing
- 5 mm
- Number of bridged clamps
- 2
- With contact protection
- Yes
- Rated current In
- 40 A
- Explosion-tested version 'Ex e'
- No
Standards & Compliance
