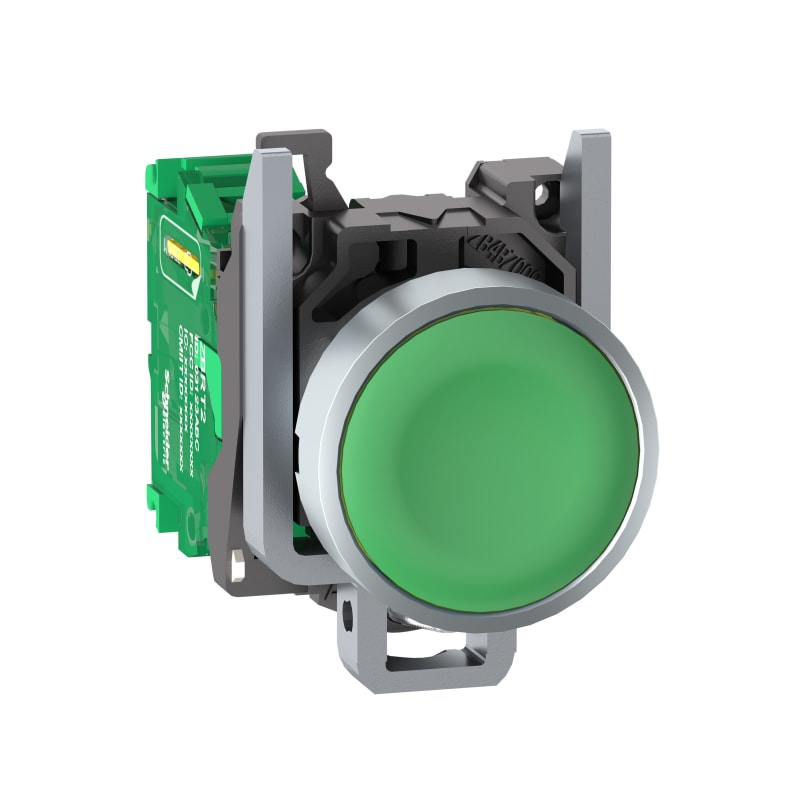

Schneider Electric ZB4R transmitter complete, green cap ZB4RTA3

Schneider Electric ZB4RTA3 Wireless push-button in metal with spring-return and plan push surface in green colour and sender with 1 signal.

Manufacturer part number (MPN)

ZB4RTA3

EAN / GTIN

3606480334504

Sales unit

pcs

Package quantity

25 pcs

Range of product

Harmony XB5

Product or component type

Wireless and batteryless transmitter

Device short name

XB5R

Bezel material

Chromium plated metal

Fixing collar material

Zamak

Mounting diameter

22 mm

Transmission frequency

2405 MHz

emission class

5M00G7W

Antenna type

Omnidirectional

Shape of signaling unit head

Round

Type of operator

spring return push-button with transmitter

Operator profile

Green flush

Max power consumption in W

1 mW

Number of channels

16

Modulation Technique

O-QPSK

Bandwidth

5 MHz

Antenna gain

0 dBi

Embedding depth

42 mm

CAD overall height

41.5 mm

CAD overall width

30 mm

CAD overall depth

43 mm

Product weight

0.045 kg

Operating travel

4.3 mm (total travel)

Operating force

10 N C/O changing electrical state

Mechanical robustness

Free fall resistance 1000 mm conforming to IEC 60068-2-32

Standards

CSA C22.2 No 14; IEC 60947-1; IEC 60947-5-1; UL 508

Radio agreement

ANATEL; ARIB T66; FCC; ICASA; RSS

Communication port protocol

Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4

Maximum sensing distance

100 m in free field; 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure; 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna

Acquisition time

2 ms

Response time

< 2 ms

Emission power

3 mW

Fixing mode

Fixing screw beneath head: 0.8…1.2 N.m

Electrical composition code

PW1

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Relative humidity

95 % at -40…70 °C without condensation

IP degree of protection

IP66 (front face) conforming to IEC 60529; IP67 (front face) conforming to IEC 60529; IP69 (front face) conforming to IEC 60529; IP69K (front face) conforming to IEC 60529

IK degree of protection

IK03 conforming to IEC 50102

Mechanical durability

1000000 cycles

Shock resistance

25 gn (duration = 6 ms) for 6000 shocks conforming to IEC 60068-2-27; 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Vibration resistance

5 gn (f= 11…500 Hz) conforming to IEC 60068-2-6; +/- 10 mm (f= 2…11 Hz) conforming to IEC 60068-2-6

Electromagnetic compatibility

Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2; Electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3; Susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3

Product certifications

BT 2006/95/EC; C-Tick; UL; GOST; CSA

Directives

1999/5/EC - R&TTE directive; 2004/108/EC - electromagnetic compatibility

Number of Units in Package 1

1

Number of Units in Package 2

25

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Suitable for lighting

No

Spring-return

No

Type of button

Flat

Colour front ring

Chrome

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Switching function latching

No

HS Code

8526.92

• EAN 3606480334504
• SAP 1000263832
• Code 8217696
