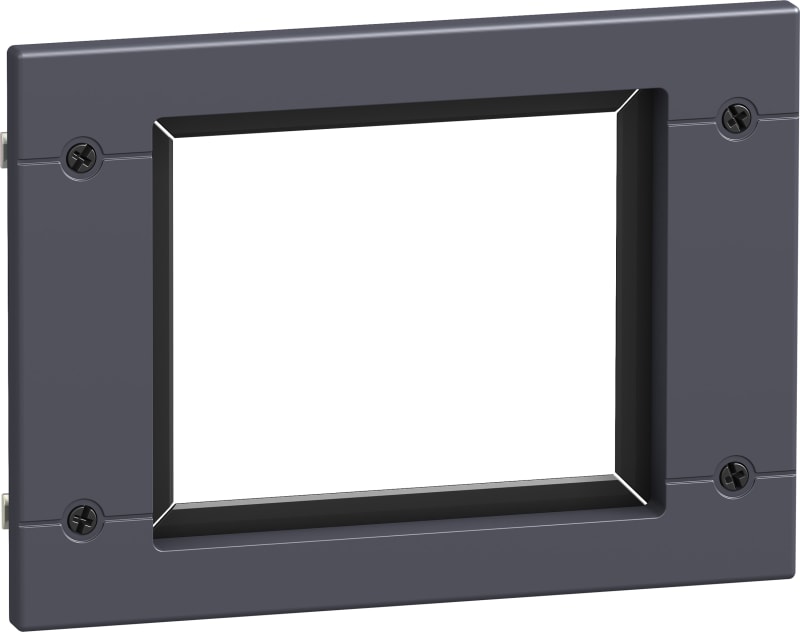

Schneider Electric LV432558 — Escutcheon for all control types, fixed NSX400/630, IP40

Schneider Electric LV432558 is a front-panel escutcheon (door frame) for all control types on fixed ComPacT NSX400/630 (and EasyPact CVS 400/630) moulded-case circuit breakers. It mounts on the switchboard door around the operating face to finish the cut-out and provide IP40 degree of protection at the front face. Conforms to IEC 60947-2 as a circuit-breaker accessory. RoHS 2011/65/EU and REACH compliant; CE marked.

Type

front-panel escutcheon (door frame) for all control types

Compatible devices

ComPacT NSX400/630 (and EasyPact CVS 400/630) (fixed mounting)

Degree of protection

IP40

Function

mounts on the switchboard door around the device operating face; raises the front-face degree of protection and provides a finished cut-out

Standard

IEC 60947-2 (circuit-breaker accessory)

Compliance

RoHS 2011/65/EU, REACH; CE marked

Manufacturer part number (MPN)

LV432558

EAN / GTIN

3606480021206

HS code

8538.90

Product or component type

Escutcheon

Accessory / separate part category

Insulation accessory

Range compatibility

ComPact ComPact NSX400; ComPact ComPact NSX630; ComPact Compact NSX400 DC; ComPact Compact NSX630 DC; EasyPact EasyPact CVS400; EasyPact EasyPact CVS630; PowerPact PowerPact L

Control type

Rotary handle; Toggle; Motor mechanism

mounting mode

Fixed

IP degree of protection

IP40 conforming to IEC 60529

Country of origin

PL

Warranty (in months)

18

Standard

IEC 60947-2

HS Code

8538.90

• EAN 3606480021206
• SAP 1000092766
• Code 8907860
