Main pole 20A (VZ01)

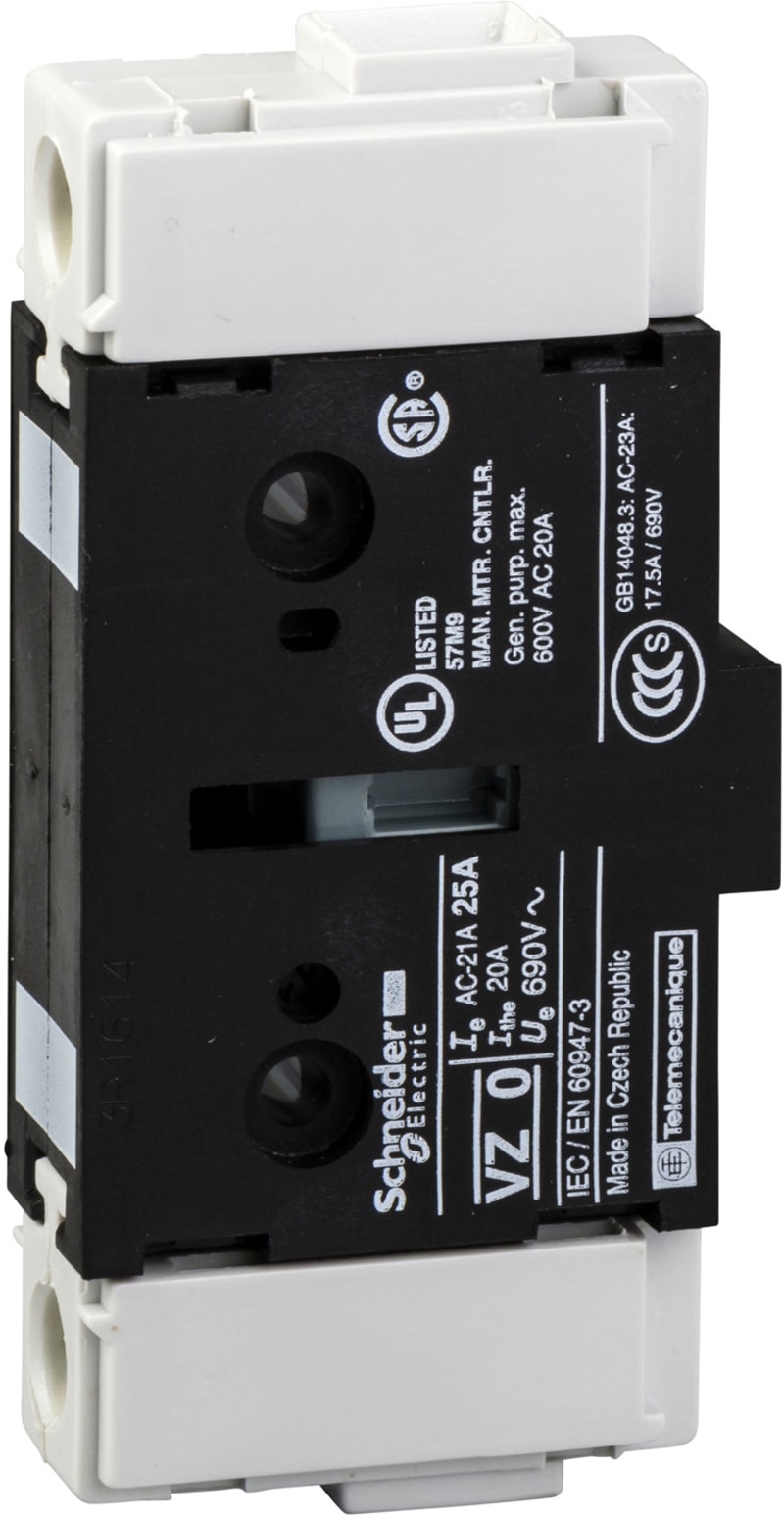

Schneider Electric VZ01 Main pole 20A.

Manufacturer part number (MPN)

VZ01

EAN / GTIN

3389110448900

Sales unit

pcs

Package quantity

69 pcs

Rated current

20 A

Range

TeSys

Device short name

VZ

Product or component type

Additional pole

Performance level

High performance

Poles description

1P

Contacts type and composition

1 NO

Product compatibility

V01

Range compatibility

TeSys TeSys VARIO switch disconnector

Network type

DC; AC

Network frequency

50/60 Hz

Suitability for isolation

Yes

Mounting location

Left; Right

[Ue] rated operational voltage

690 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

8 kV

[Ith] conventional free air thermal current

20 A

[Ithe] conventional enclosed thermal current

16 A

Mechanical durability

100000 cycles

Electrical durability

100000 cycles AC-21; 30000 cycles DC-1...5

Connections - terminals

Power circuit: screw clamp terminals6 mm² - flexible - with cable end; Power circuit: screw clamp terminals10 mm² - solid

Tightening torque

Power circuit: 2.1 N.m - on screw clamp terminals

Height

74 mm

Width

16 mm

Depth

35 mm

Product weight

0.05 kg

Standards

IEC 60947-3

Product certifications

GL; CSA; UL; UKCA

Protective treatment

TC

IP degree of protection

IP20 conforming to IEC 60529

Mechanical robustness

Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6; Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27

Ambient air temperature for operation

-20…50 °C

Fire resistance

960 °C conforming to IEC 60695-2-1

Number of Units in Package 1

1

Number of Units in Package 2

69

Country of origin

CZ

Warranty (in months)

18

HS Code

8538.90
