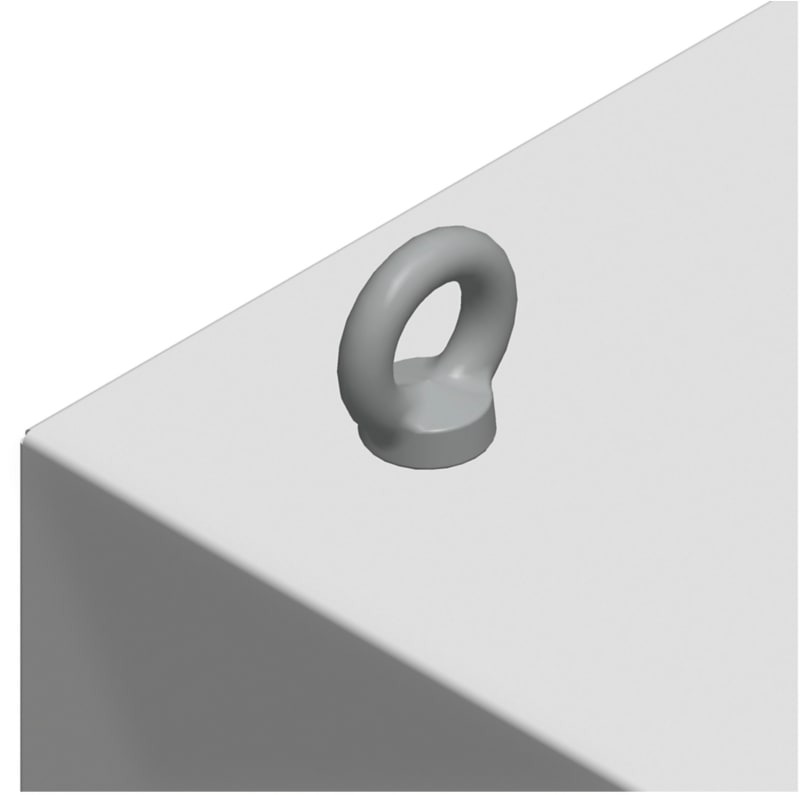

Schneider Electric PanelSeT SM M12 Lifting Eyebolt Set, Galvanized Cast Steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSMEB is a set of four M12 lifting eyebolts in galvanized cast steel for PanelSeT SF and PanelSeT SM enclosures, supplied with matching fixing nuts. Each eyebolt carries a permissible vertical load of 340 kg. The eyebolts mount to the top of the enclosure to permit safe crane or hoist transport during installation.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSMEB
- EAN / GTIN
- 3606480146596
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Area
- PanelSeT
- category
- Lifting accessory
- Product or component type
- Lifting bracket; Lifting eye
- Application
- Multi-purpose
- Mounting location
- Enclosure top
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SM
- Device composition
- 4 eyebolt; 4 fixing nuts
- Quantity per set
- Set of 1
- Material
- Cast steel
- Surface finish
- Galvanized
- Fixing mode
- Screwed
- Permanent permissible load
- 340 kg for 1 eyebolt vertical direction
- Height
- 61.5 mm
- Width
- 54 mm
- Depth
- 26 mm
- Diameter
- 29 mm
- ISO thread
- M12
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.000 cm
- Package 1 Width
- 9.000 cm
- Package 1 Length
- 14.500 cm
- Package 1 Weight
- 1.058 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 240
- Package 2 Height
- 45.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 277.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Model
- Transport lug
- Load bearing capacity
- 340 kg
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480146596
- SAP 1000090081
- Code 8582607
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Standard control unit, TeSys U, 3-12A, 3P motors, thermal magnetic protection, class 10, coil 24V AC LUCA12B
Schneider Electric

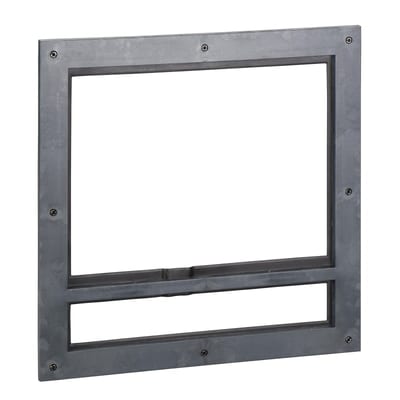

Doorframe for MTZ1 Withdrawable (LV833857SP)
Schneider Electric

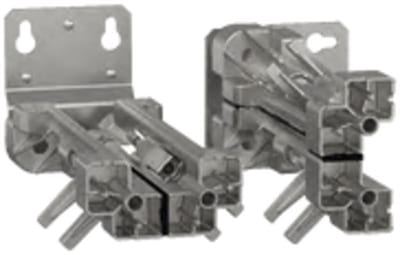

Horizontal/Vertical Sammenkopl. Set IP55-G
LVS08381
Schneider Electric

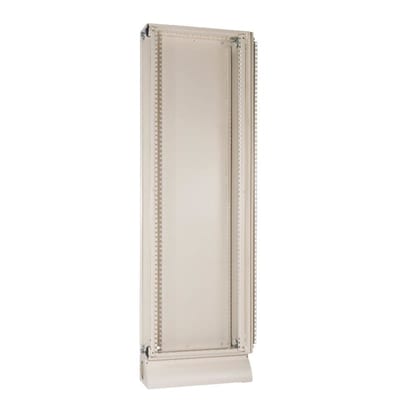

Schneider Electric Floor standing extension enclosure, PrismaSeT G, W 600mm, H 2030mm (36M), IP30, without side plates LVS08215
Schneider Electric
Side panel PrismaSeT G 21M IP30
LVS01045
Schneider Electric
Schneider Electric Trip unit TM200D, ComPacT NSX250, 4 poles 4D (neutral fully protected), thermal magnetic protections, 200A rating C254TM200
Schneider Electric

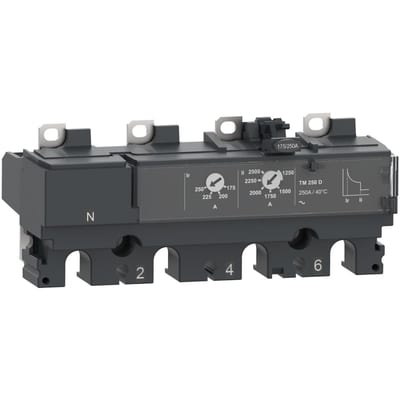

Schneider Electric Trip unit TM250D, ComPacT NSX250, 4 poles 4D (neutral fully protected), thermal magnetic protections, 250A rating C254TM250
Schneider Electric

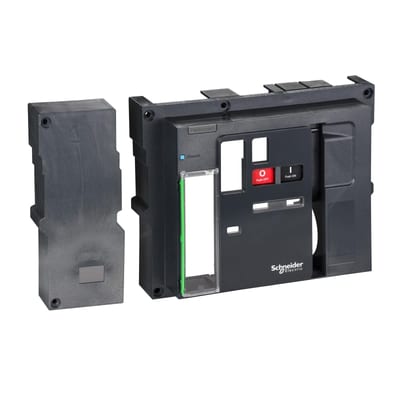

Front Cover MTZ2 3P/4P reserve
