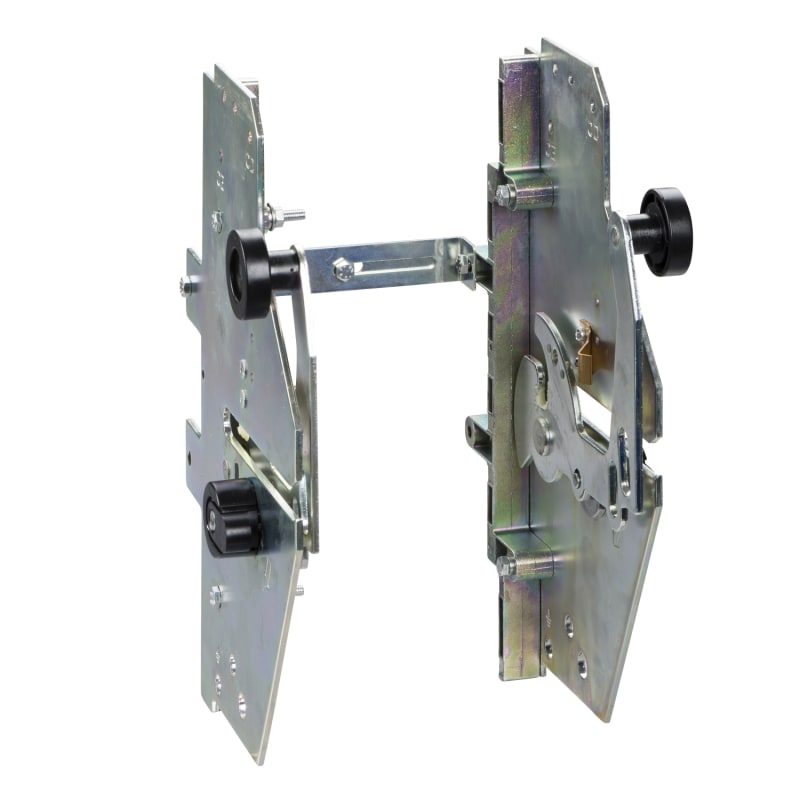

Schneider Electric chassis side plates, left, ComPact NSX 400/630, withdrawable, 3/4 poles LV432532

Schneider Electric LV432532 provides the chassis side plates for the base of a ComPacT NSX400/630 (and EasyPact CVS 400/630) withdrawable moulded-case circuit breaker (3 or 4 poles). They mount on the withdrawable chassis to guide and retain the device during racking. Conforms to IEC 60947-2 as a circuit-breaker accessory. RoHS 2011/65/EU and REACH compliant; CE marked.

Type

chassis side plates for base (withdrawable device accessory)

Compatible devices

ComPacT NSX400/630 (and EasyPact CVS 400/630), withdrawable

Poles

3 or 4 poles

Function

mount on the withdrawable chassis (base side) to guide and retain the device during racking; a withdrawable configuration uses two chassis

Standard

IEC 60947-2 (circuit-breaker accessory)

Compliance

RoHS 2011/65/EU, REACH; CE marked

Manufacturer part number (MPN)

LV432532

EAN / GTIN

3606480021435

HS code

8538.90

Product or component type

Side plate

Accessory / separate part category

Mounting accessory

Range compatibility

ComPact ComPact NSX400; ComPact ComPact NSX630; ComPact Compact NSX400 DC; ComPact Compact NSX630 DC

Poles description

3P; 4P

Kit composition

Chassis side plates for base

mounting mode

Drawout

[In] rated current

630 A

Country of origin

PL

Warranty (in months)

18

Standard

IEC 60947-2

HS Code

8538.90

• EAN 3606480021435
• SAP 1000092756
• Code 8937725
