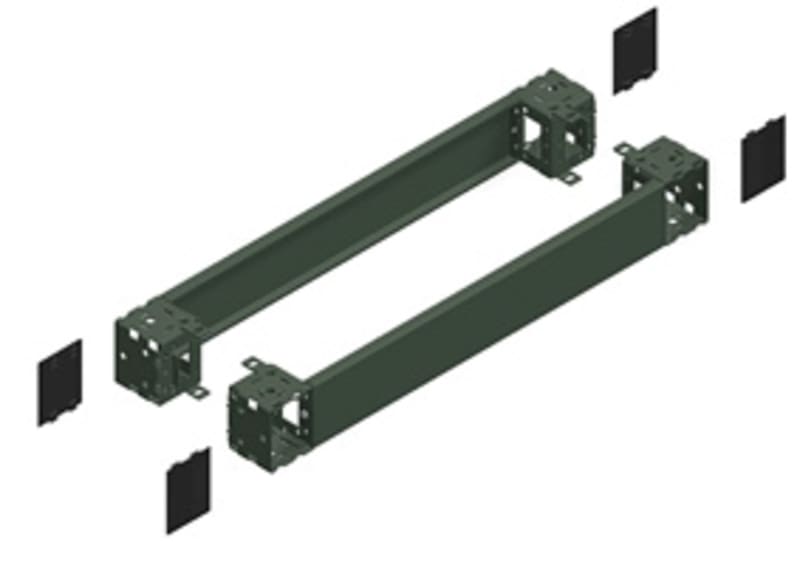

Basefront 100X700 (NSYSPF7100)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSPF7100 Spacial SF/SM - Plinth Front - 100x700 mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSPF7100
- EAN / GTIN
- 3606480169236
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Plinth front
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Device composition
- fixing elements; 4 corner cover; 1 front panel; 1 rear panel; 4 corner
- Range compatibility
- Prisma Prisma POLAR WHITE POLAR WHITE; PanelSeT SFN
- Mounting support
- Plinth side panels
- Fixing mode
- By fixing element - on structure location
- Colour
- Grey (RAL 7022)
- Surface finish
- Epoxy-polyester powder
- Permanent permissible load
- 1300 kg
- Height
- 100 mm
- Width
- Nominal: 700 mm
- IP degree of protection
- IP20 (complete plinth)
- IK degree of protection
- IK10
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 11.000 cm
- Package 1 Width
- 20.500 cm
- Package 1 Length
- 71.500 cm
- Package 1 Weight
- 4.876 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 56
- Package 2 Height
- 105.500 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 287.500 kg
- Country of origin
- TN
- Warranty (in months)
- 18
- Model
- Base front/back
- Depth
- 600 mm
- Max. load capacity
- 1300 kg
- Suitable for enclosure building width
- 700 mm
- Material
- Steel
- RAL-number (similar)
- 7030
- Suitable for outdoor set-up
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480169236
- SAP 1200496758
- Code 82641070
