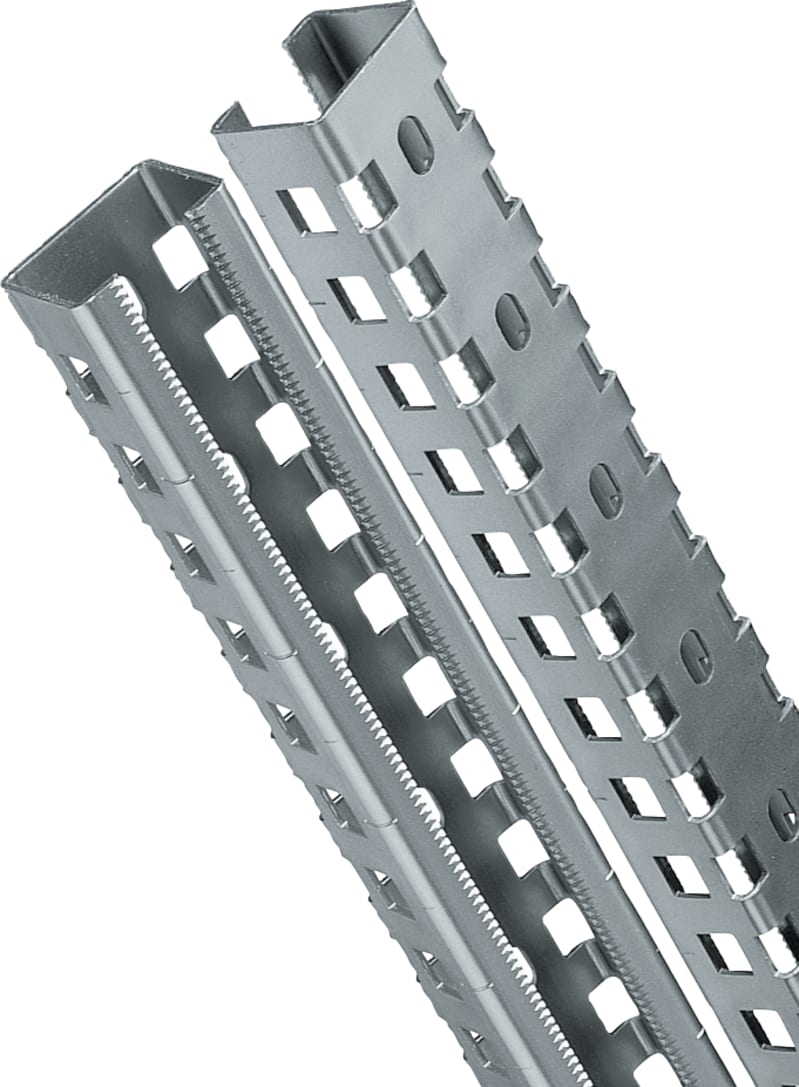

Schneider Electric NSYTVR20 PanelSeT Vertical Upright 2000mm

Schneider Electric NSYTVR20 PanelSeT vertical upright 2000 mm, supplied as a set of 2. Compatible with PanelSeT SF, SM, SFX and SMX enclosures at 2000 mm building height. Zinc-coated steel with depth adjustment every 25 mm using caged nuts and height adjustment every 2.5 mm with quarter-turn nuts. Made in Italy with an 18-month warranty.

Manufacturer part number (MPN)

NSYTVR20

EAN / GTIN

3606480148750

Sales unit

pcs

Package quantity

2 pcs

Range

PanelSeT

Accessory / separate part category

Mounting accessory

Product or component type

Technical upright

device application

Multi-purpose

enclosure nominal dimensions

- H: 2000 mm

Mounting support

Mounting plate fixing bracket; Upright fixing bracket

Range compatibility

PanelSeT SF; PanelSeT SM; PanelSeT SFX; PanelSeT SMX

Device composition

2 upright

Quantity per set

Set of 1

Material

Steel

Surface finish

Zinc coated

Adjustment

Adjustable in depth every 25 mm with caged nuts; Adjustable in height every 2.5 mm with quarter-turn nuts

Height

2000 mm; Real: 1875 mm

Width

45 mm

Depth

34 mm

thickness

2 mm

Cut-out dimensions

13 x 11 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.500 cm

Package 1 Width

6.000 cm

Package 1 Length

187.500 cm

Package 1 Weight

5.616 kg

Unit Type of Package 2

P2M

Number of Units in Package 2

80

Package 2 Height

46.000 cm

Package 2 Width

120.000 cm

Package 2 Length

200.000 cm

Package 2 Weight

495.000 kg

Country of origin

IT

Warranty (in months)

18

Model

Mounting rail

Suitable for enclosure building height

2000 mm

Colour

Grey

HS Code

7326.90

• EAN 3606480148750
• SAP 1000090311
• Code 8893843
