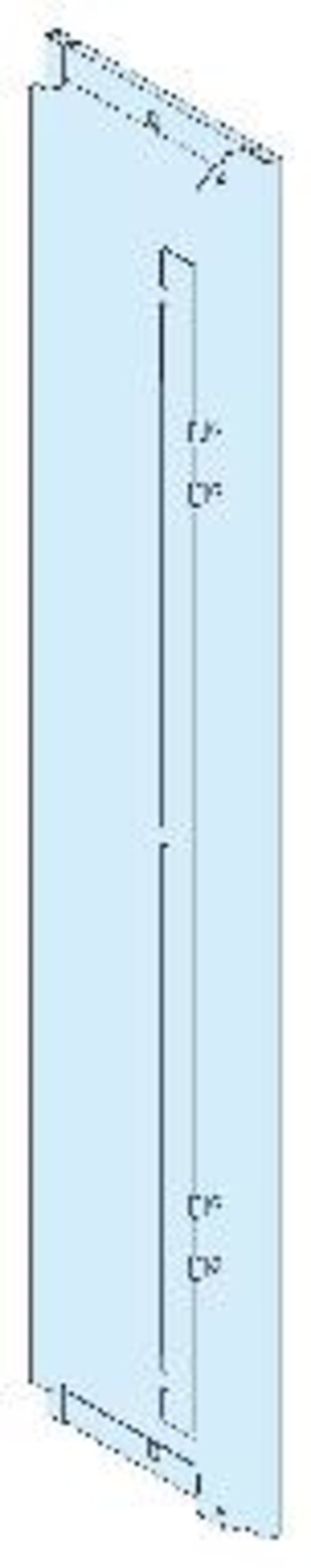

Side panel PrismaSeT G 18M IP30
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS01044 Side panel-spare part for PrismaSeT G-18 modules- IP30.
Technical Specifications
- Manufacturer part number (MPN)
- LVS01044
- EAN / GTIN
- 3606481878007
- Sales unit
- pcs
- IP rating
- IP30
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Side panel
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- Accessory / separate part category
- Enclosure accessory; Spare part
- installation description
- Wall-mounted enclosure
- Mounting location
- Side
- Number of vertical modules [50 mm]
- 18
- Material
- Treated sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 195 mm
- Height
- 925 mm
- Depth
- 45 mm
- Product weight
- 1.9 kg
- Quantity per set
- Set of 1
- IP degree of protection
- IP30
- IK degree of protection
- IK08
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.2 cm
- Package 1 Width
- 20.5 cm
- Package 1 Length
- 113.0 cm
- Package 1 Weight
- 2.105 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 24
- Package 2 Height
- 53.0 cm
- Package 2 Width
- 80.0 cm
- Package 2 Length
- 120.0 cm
- Package 2 Weight
- 62.0 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable as side panel
- Yes
- Suitable as rear panel
- No
- Suitable for enclosure building depth
- 210 mm
- Surface finishing
- Powder coating
- RAL-number
- 9003
- With cable entry
- No
- Number of height units
- 18
- With lock
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481878007
- SAP 1200546809
- Code 82880738
